100ml Plastic Disposable Water Cup/Glass Making Thermoforming Machine
BEHAPPY CRAFTS (SUZHOU) CO., LTD.Base Info
Description
Material
PP/PE/PS/PET/PVC (Hard Sheet)
Sheet Thickness
0.3-2.0mm
Sheet Width
500-720mm
Max Install Area Of Mould
750×350mm²
Max Forming Area
720×320mm²
Up Heater Power( More length )
Heating enough ensure cup in good shape
10Rows×8Zones×800w
Down Heater Power
9Rows×8Zones×800w
Max Shaping Depth
170mm(Can Be Adjust)
Max Forming Depth
130mm(Can Be Adjust)
Productivity
10-30 Strokes/min
Heating Rated Power
About 50kw/hour
Total Power
140Kw
Main Motor Power
11Kw
Power Supply
380V/50Hz(Three Phase Four Wire)
Voltage
0.6-0.8Mpa
Air Volume Required
2500~3500L/min
Water Volume Required
40~45L/min
Machine Weight
About 6T
Overall Dimension
4.5m×1.8m×2.4m

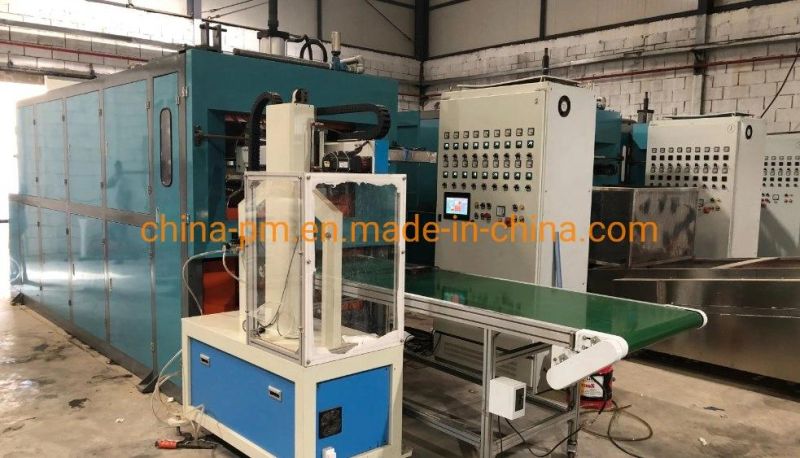

Cup Making Machine Photo

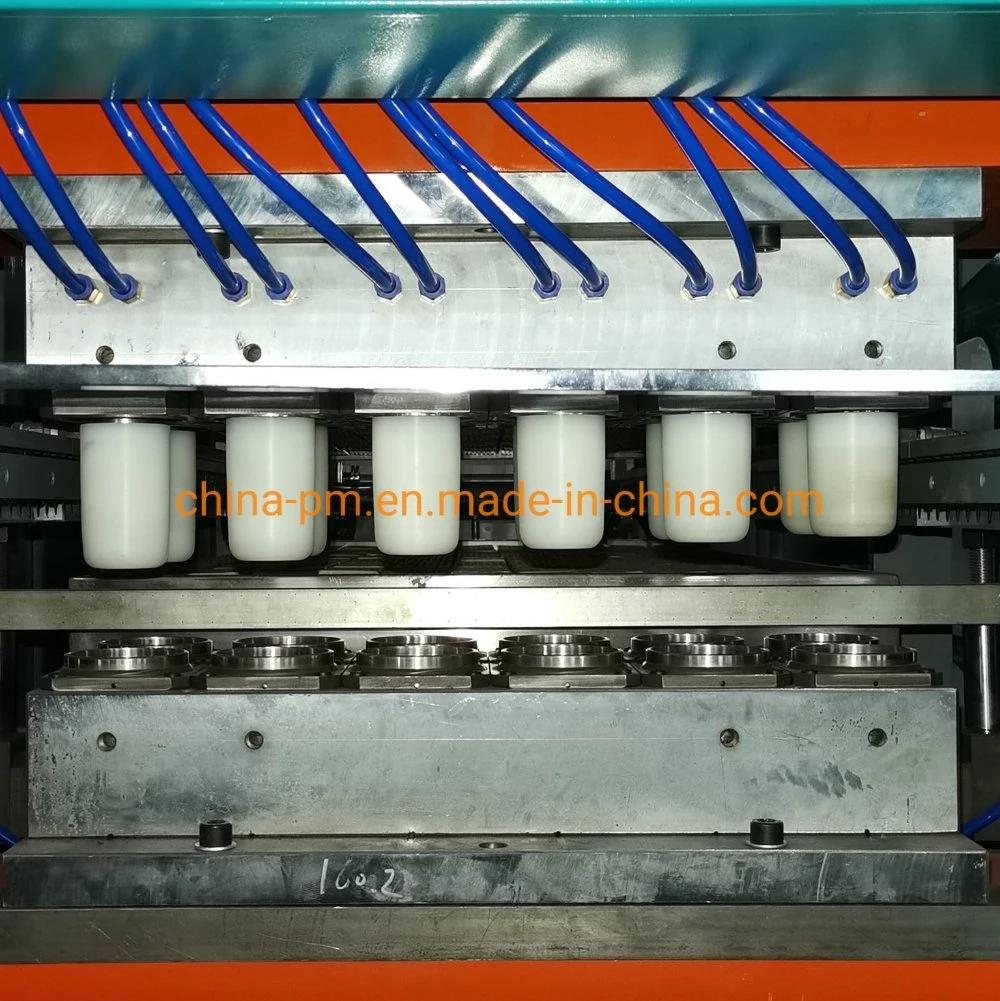

Mould For Making Plastic Cup

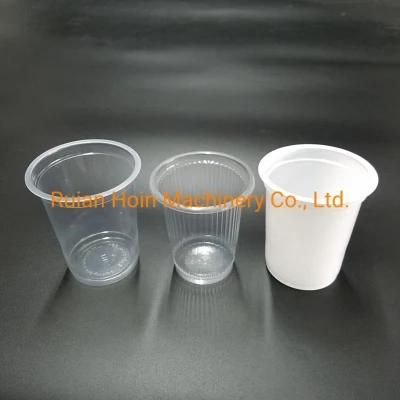

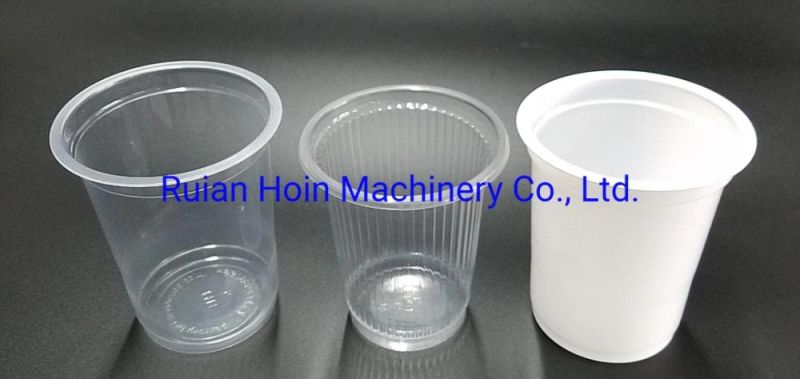

Cup Samples

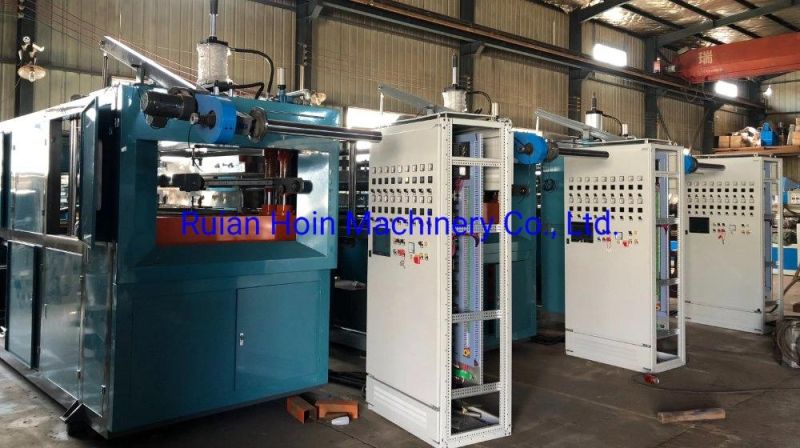

Cup Making Machines

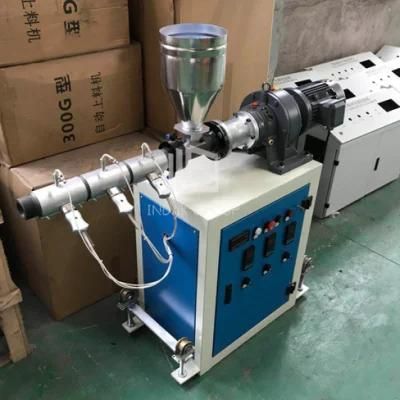

Plastic Sheet Extruder
D.MORE PRODUCTS1.Plastic Sheet Extruder(Single Screw/Double Layers)
2.Plastic Thermoforming Machine(Cup/Lid/Bowl/Tray/Container Making Machine,etc...)
3.Thermoforming Moulds(Cup/Lid/Bowl/Tray/Container Mould,etc...)
4.Plastic Cup Printing Machine & Cup Packing Machine & Cup Stacking Machine
5.Film Blowing Machine & Flim Printing Machine & Bag Making Machine
6.Other Auxiliary Equipments:Mixing Machine,Material Feeding Machine,Cooling Tower,
Robot,Cup Stacking Machine,Hydraulic Forlift,Chiller,Crushing Machine,etc...
