Basic Info.

Model NO. XZ160A

Product Description

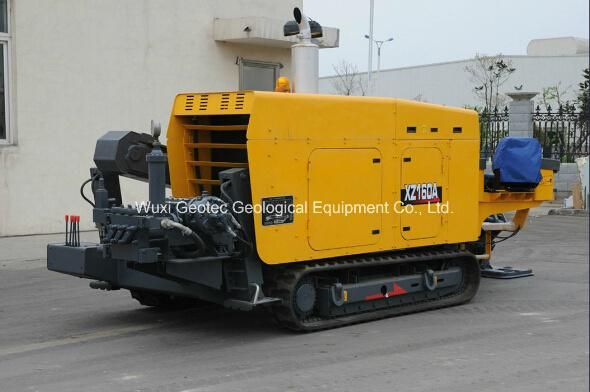

Model: XZ160A
Engine Model: Chai
Rating of engine: 100kW
Push and pull mode: Oil cylinder
Maximum pull back/entering strength: 160/100kN
Power head maximum torque: 5000N. M
Power head rotation speed: 0-180r/min
Power head speed: 30 m/min
Maximum diameter of hole: Φ 600mm
Length of drill pipe (single pipe): 3m
Drill rod caliber: Φ 60mm
Penetration angle: 10-23°
Maximum flow of mud: 160L/min
Mud pressure: 100bar
Weight: 6100kg
Dimensions (length * width * height): 5700× 1820× 2400mm
