• Model NO.：LP-C3050
• Applicable Material：Nonmetal
• Type：Oscillating Mirror
• Laser Classification：Gaseous Laser
• Engraving Method：Vector Engraving
• Worktable：Standard with Honeycomb Worktble
• Power Supply：220V,50Hz, 110V,60Hz
• Control System：High Speed DSP Control System Brand Ruida or Leetr
• Machine Work Software：Laser Cut 5.3 (Leetro), Rdworks V8 (Ruida)
• Driving System：Stepper
• Plywood Gross Weight：80kgs
• Transport Package：Wooden Boxes
• Specification：900mm*710mm*980mm
• Trademark：Lansen
• Origin：China
• HS Code：8456110090
• Production Capacity：300sets,Month

LP-C3050

Working area

300mm*450mm / 11.81in*17.71in (L*W)

Laser power

60w

Laser type

CO2 sealed laser tube, water-cooled

Worktable

Standard with Honeycomb worktble

Engraving speed

0-50000mm/min

Cutting speed

0-30000mm/min

Highest scanning precision

2500DPI

Power supply

220v/50Hz , 110v/60Hz

Min. shaping character

English 1.0 x 1.0mm, Chinese 1.5 x 1.5mm

Graphic.format.supported

BMP, PLT, DST, DXF, AI

Software supported

CorelDraw, PhotoShop, AutoCAD,TAJIMA

Control system

High speed DSP control system brand Ruida or Leetro

Machine work software

Laser cut 5.3 (Leetro)/ RDWorks V8 (Ruida)

Laser output control

1-100% by setting in the software

Interface

USB 2.0

Driving system

Stepper

Color separation

Yes

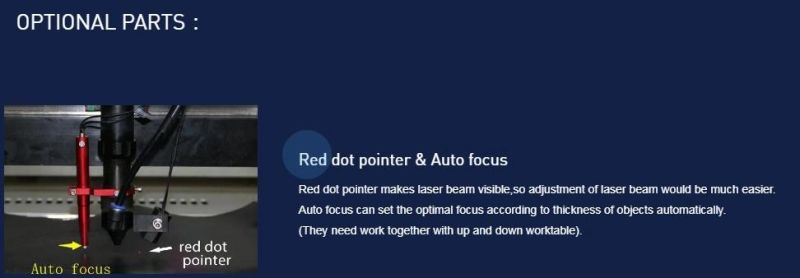

Optional part

Red dot pointer

Spare parts

Extra laser tube/Extra 1 lens and 3 mirrors

Machine size

900mm*710mm*980mm

Plywood gross weight

80kgs

1. DSP offline control system with USB interface. It accepts all major graphics formats via USB connection and work without computer.
2. High working speed. A. It stops high performance motor, guarantee high working speed, B. Optional square X, Y rails, which can improve speed and stability, max speed could get up to 1200mm/s.

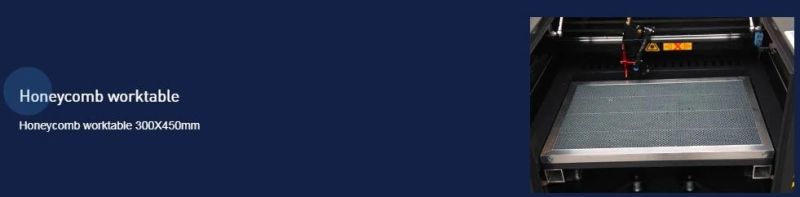

3. Motorized up-down honeycomb worktable. 15cm adjustable by motor, allows thick object to put inside.
4. Portable to move. Small size but with large workarea, more convenient to move.

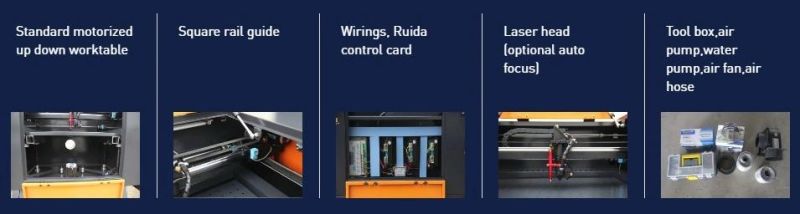

Machine details:






Package & delievery:


About us:

FAQ

Q: Are you a factory or trading company?
A: We are a manufacturer, we own our exporting rights.

Q: Where are you located? How can we visit you?
A: We locates in Jinan of Shandong, as long as you give us and email or telephone, tell us your visit plan, we will arrange all for you in Jinan.

Q: How can I choose suitable machine?
A: Please communicate with us via inquiry or email, we can guide you. Please kindly tell us:
1) .What work table size you will need?
2).What work you will do?

Q: What's your payment terms? Delivery time and MOQ?
A: We accept T/T(bank transfer), L/C, Paypal, ESCOW, West union etc. Usually we need 30%
as deposit, balance paid before shipment.
Delivery Time: 7-10 days after payment
MOQ: 1set

Q: If I bought a machine, how could you make it safe while shipping.
A: We have a professional package suitable for oversea transpotation. Machine will be fixed well in the case.

Q: What's your quality control system?
A: All machines will be tested after finished. We have QC department response for this job. And we already got CE approved.

Q: What's your after-sales service?
A: 1) Warranty 2 years for whole machine.
2) Engineers available service machinery overseas
3) Full operator training

Q: If I don't know how to use the machine, can you teach me?
A: 1) There is a DVD disc including machine user manual and software user manual c/w machine
2) Online (skype & phone)
3) Remote desktop software (Team viewer)
4) Demo Video

Q:This is my first time buy machine from China, how i buy machine from you?
A:Choose suitable machine through talking with our seller manager → Pay to us→ manufacture and testing machine (about 5-7 workdays) →shipping to you

More information, welcome to contact us!
