Basic Info.

Model NO. SJ65 Feeding Mode One Feed Assembly Structure Integral Type Extruder Screw Single-Screw Engagement System Intermeshing Screw Channel Structure Deep Screw Exhaust Exhaust Automation Automatic Computerized Computerized Extruder Material 38crmoala Model Sj Export Market Global Application Plastic Pipe, Profile, Plate Transport Package Export Standard Packing, Wood Case Specification ISO CE Trademark Mengkwa Origin Ningbo HS Code 8477590000 Production Capacity 5000sets / Year

Packaging & Delivery

Package size per unit product 250.00cm * 200.00cm * 250.00cm Gross weight per unit product 1500.000kg

Product Description

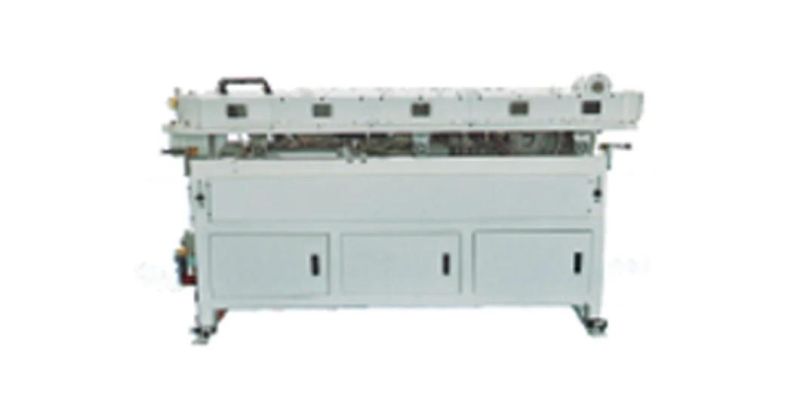

Conical Twin-Screw Plastic Extruder
Product Description

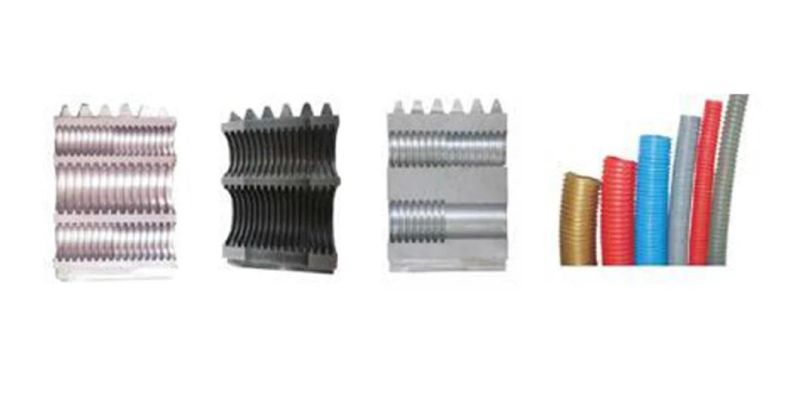

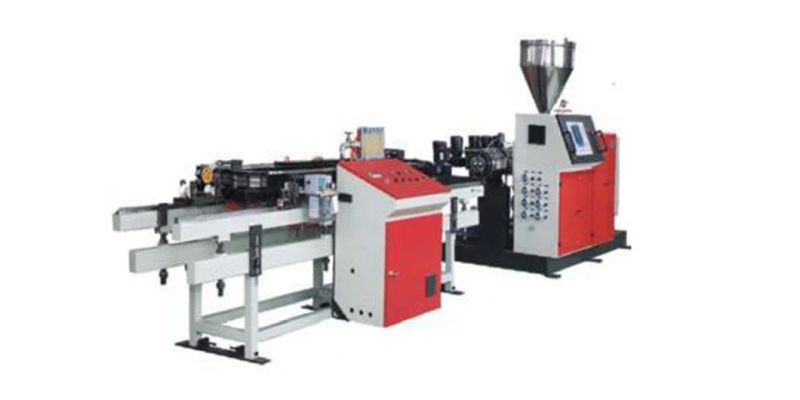

 1.This production line can be used to produce corrugated pipes of PE,PP,PVC,EVA continuously,as well as PA corrugated pipes.
2.Plastic single wall corrugated pipes have features of high temperature resistance, resistant to corrosion and abrasion, high intensity, good
flexibility, etc
3.They are widely used in fields of auto wire, electric thread passing pipes, circuit of machine tool, protective pipes of lamps and lanterns wire, tubes of air conditioner and washing machine, etc

Application & Features:
1.SJSZ series of conical twin-screw extruder is used for extrude PVC powder to become plastic pipe, profile, plate and etc when change different mould, screw and auxiliary equipments.
2.It includes screw, barrel, gear transmission system, heating, cooling and electric control and etc.
3.The screw has applied oil cooling system. Bareel is cooled by special wind cooling system.
4.Vacuum exhausting and material feeding device is fixed with machine.


Production Flow:

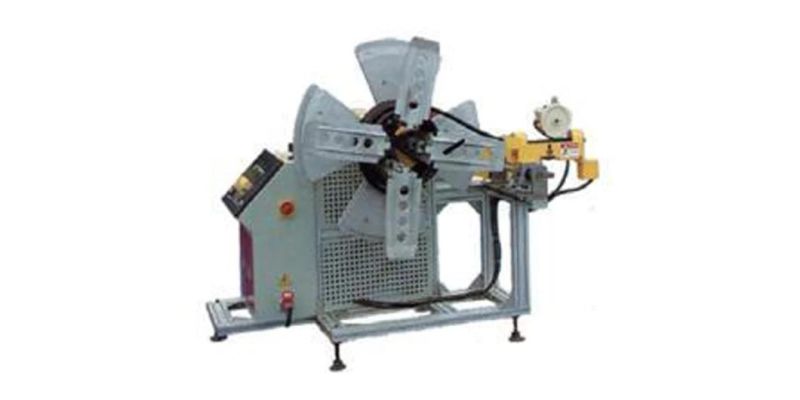

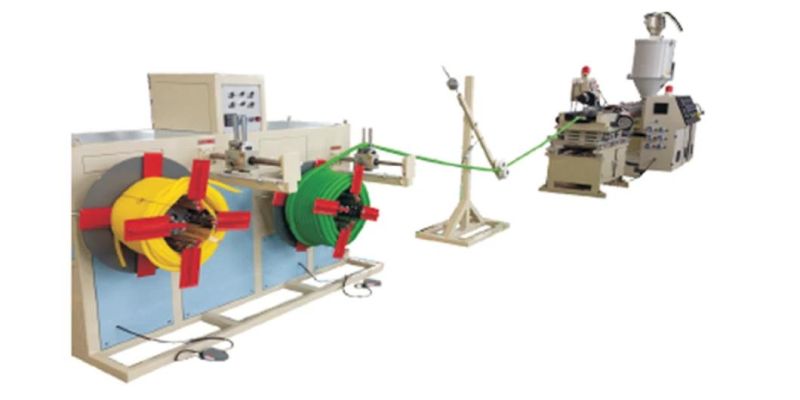

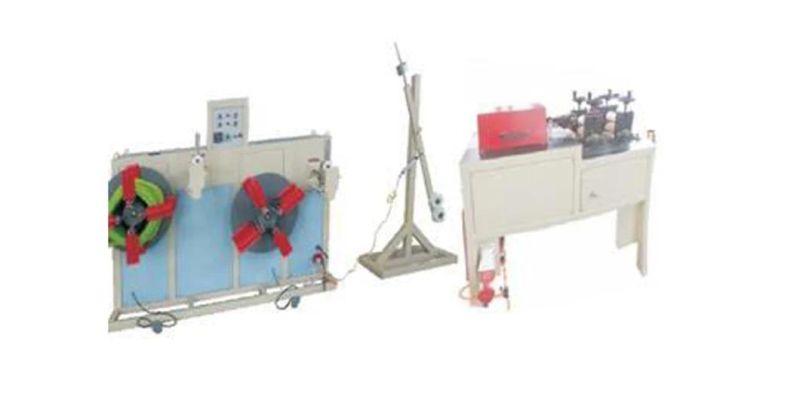

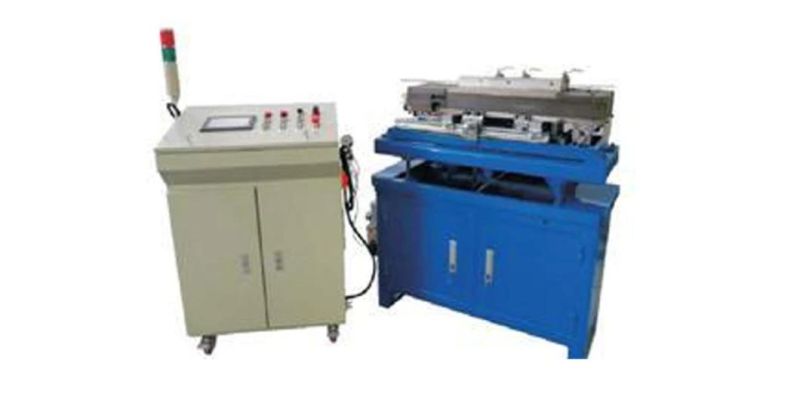

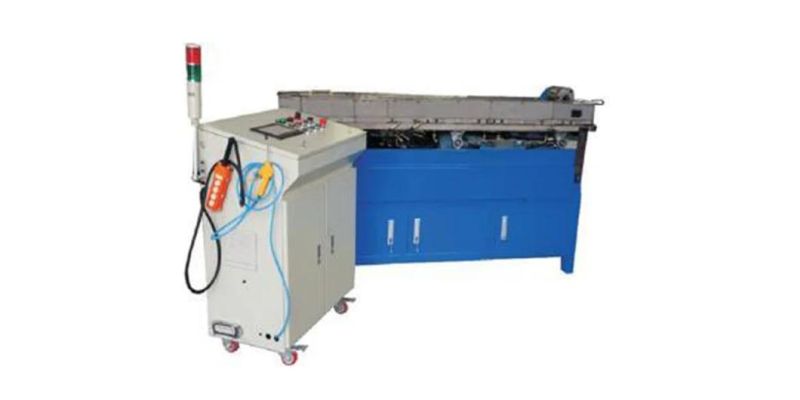

Raw material + master batches→mixing→vacuum feeding →material dryness →single screw extruder→extrusion mould→corrugation forming machine→meter measurer→double winder→finished product inspecting &packing


Technical parameters:

Model	SJSZ51/105	SJSZ55/100	SJSZ65/132	SJSZ80/156	SJSZ92/188
Screw diameter(mm)	51/105	55/100	65/132	80/156	92/188
Quantity of screw	2	2	2	2	2
Max. rotation speed of screw(r/min)	40	38	38	37	36
Effective length of screw(mm)	1200	1200	1440	1800	2500
Main motor power(kw)	18.5	22	37	55	110
Productuion capacity(kg/h)	100	150	250	400	750
Center height(mm)	1000	1000	1000	1100	1200
Dimensions(L*W*H)mm	3360*1290*2127	3620*1050*2157	3715*1520*2450	4750*1550*2460	6725*1550*2814
