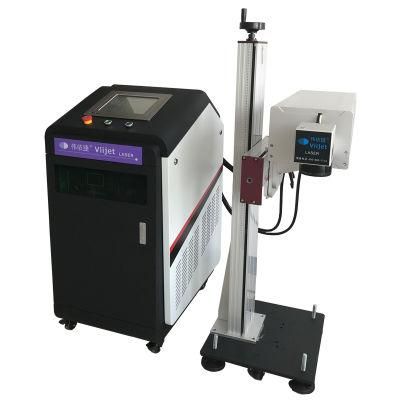

UV Laser Printer/Laser Marking Machine/Laser Engraver for Printing on Cosmetics/Packaging Bag/ Laser Marking Machine Printertwo-Bar-Codes

Hubei Wowfond Industrial Co., Ltd.
  • Laser Visibility：Visible
  • Applicable Material：All Can Be
  • Cooling System：Air Cooling
  • Technical Class：Pulse Laser
  • Laser Wavelength：UV Laser Printer
  • Laser Classification：Solid Laser

Base Info

  • Model NO.：VIIJET-UV Printer
  • Type：Optical Fiber Laser Marking Machine
  • Marking Method：Scanning Marking
  • Maximum Power：5W
  • Cooling Method：Air-Cooling
  • Laser Printer Wavelength：355nm
  • Power Consumption：1.5kw
  • Electrical Requirements：220V,50Hz,12A
  • Marking Line Depth：0.5mm
  • Marking Line Speed：7000mm,S
  • Minumum Fontsize：0.0015mm
  • Marking Area：70mmx70mm,110mmx110mm
  • Minimum Line Width：0.001mm
  • Transport Package：Cardboard
  • Specification：VIIJET-5W(UV)
  • Trademark：VIIJET
  • Origin：Guangzhou, China
  • HS Code：8456100090
  • Production Capacity：5000 PCS,Year

Description


Mode No.
 VIIJET-5W(UV)Marking line depth50×50mm/110×110mm/175×175mm
Laser Wavelength
 355nmMarking Line Depth0.5mm
Transverse mode
 TEMOO
Maximunm power
 5W
Marking Area

70mm×70mm/110mm×110mm
 Minimum line width0.001mm
Average Power
 5WMinimum font size0.0015mm
Pulse Repetition Rate
 20-100K H ZPower Consumption1.5KW
Pulse-to-Pulse Stability
 3%RMSCoolong MethodAir-cooling
Average Power Stability
 5%RMSOperating Ambient Environment15-35ºC
Electrical Requirements
 220V/50Hz/12ALine Speed7000mm/s
Repeat Accuracy
 ±0.0001mmWarm-Up Time From StandbyThree minutes

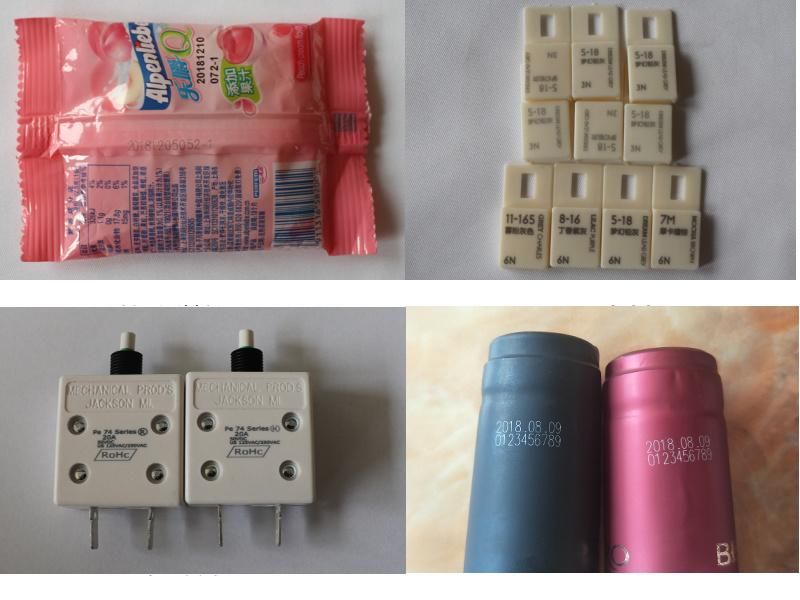

Product Application:

UV Laser Printer/Laser Marking Machine/Laser Engraver for Printing on Cosmetics/Packaging Bag/ Laser Marking Machine Printertwo-Bar-Codes
