200kg/H Frozen French Fries Production Line Machine with High Quality
Fuzhou Qianxi Trading Co., Ltd.- Certification：CE, ISO9001, SGS
- Power Source：Electric
- Process：Thermal Processing
- Automatic Grade：Automatic
- Application：Frozen French Fries
- Customized：Customized
Base Info
- After-Sales Service Provided：Engineers Available to Service Machinery Overseas
- Material：304 Stainless Steel
- Price：Facotry Price
- Transport Package：Standard Export Packaging
- Trademark：TUNE
- Origin：China
- HS Code：8438600000
- Production Capacity：150set,Month
Description
No.Machine nameApplication1HoistIt is used to preclean potato,
soften the potato skin, then hoist potatoes into washing and peeling machine.2Washing and peeling machineThis machine is used to peeling potatoes with hard brush and emery brush; Uneven and corrugated brush can peel the potatoes completely3Inspecting tableThis machine is used to pick out potato eyes and dark parts on potatoes by manually. There will be waste material holes and unpeeled potatoes return system.4Potato cutter
This machine is used to cut potato into sticks, french fries quality depends on fries length and shape, so cutting machine is very important5HoistIt is used to translate the finish cutter potatoes, then hoist potatoes into miscellaneous machine.6miscellaneous machine
This machine is used for impurity removal, to remove the fringes of the french fries, and then clean the equipment into the next step.7Rinsing line machine
This machine used to washing potato starch and protect potato from oxidation, keep its original color
8Blanching line machine
This machine is used to deactivate the activity of the oxidase, take off the starch, separate out the redusing sugar, also after blaching,it will get inner soft taste of french fries.9Air-dryer machine
Used to remove water.Also have many holes at the end of machine to leak out small part and waste part potato.10Hoist It is used to translate the finish Air-dryer potatoes, then hoist potatoes into Vibration dehydrator.11Vibration dehydrator
Used to remove water.Also have many holes at the end of machine to leak out small part and waste part potato.12Continuous frying line machineThis machine is used to unified fry sticks in short time.13Vibrating oil off machineThis machine is used to de-oil with the vibrating14Dried degreasing machineUse fan to blow off the water on stick surface, then deliver sticks into the freezer. 15HoistIt is used to between Dried degreasing machine and freezing machine 16Quick freezing machine
It is used to quick freezing the french fries in short time, fries center temperature at -18 ºC, Can the maximum keep the original flavor and product quality17Automatic packaging machineIt is used to pack the french fries automatically.
Technical Parameters

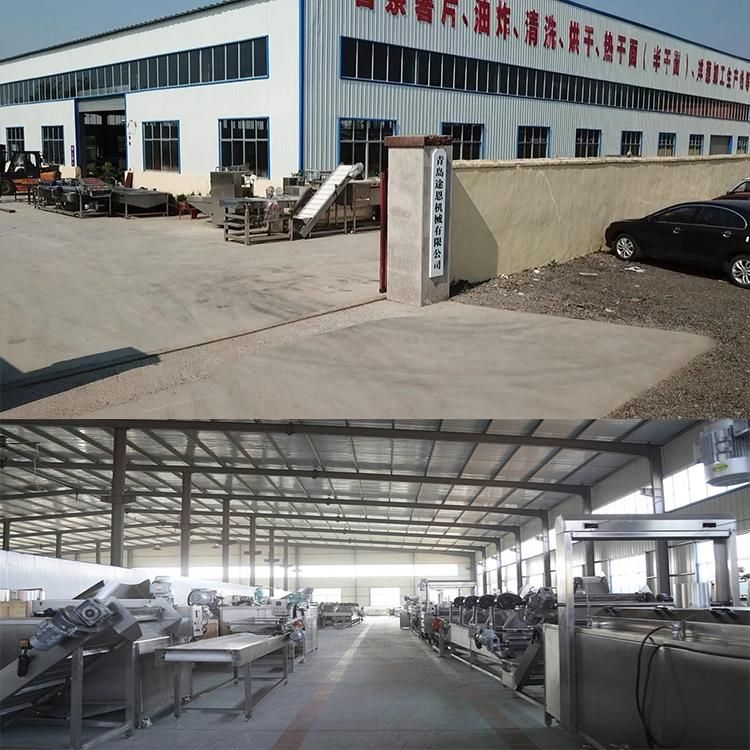

Factory Overall
Installation example
Customer Visiting
Delivery&Container Loading
FAQ
Q: Are You A Factory or A Trading Company?
A: We are the manufacturer with professional produce experience on Food Machinery more than 15 years.We own both of Domestic and international sales department.We provide perfect OEM and after-sale service.
Q: How do I know about the details and quality of your machine?
A: First, we have product brochures covering all details including parameter, material, output, etc. of most of our production lines; secondly, we can provide you with videos filmed on-site with details about the working process and how mechanical parts work during operation; at last, you are warmly welcomed for on-site inspection at our factories.
Q:How do I know that the machine I ordered at your company is working well?
A:Before delivery,We will test your machine and send a test video to you.
Q:How should I do if meet some trouble while using?
A:We provide lifetime warranty service,We can send you components to you for free,we can supply English manual book and also take a video for showing how to resolve the problems or dispatch our worker to your factory.
We are looking forward to receive your good news, pls feel free to contact us ~~
soften the potato skin, then hoist potatoes into washing and peeling machine.2Washing and peeling machineThis machine is used to peeling potatoes with hard brush and emery brush; Uneven and corrugated brush can peel the potatoes completely3Inspecting tableThis machine is used to pick out potato eyes and dark parts on potatoes by manually. There will be waste material holes and unpeeled potatoes return system.4Potato cutter
This machine is used to cut potato into sticks, french fries quality depends on fries length and shape, so cutting machine is very important5HoistIt is used to translate the finish cutter potatoes, then hoist potatoes into miscellaneous machine.6miscellaneous machine
This machine is used for impurity removal, to remove the fringes of the french fries, and then clean the equipment into the next step.7Rinsing line machine
This machine used to washing potato starch and protect potato from oxidation, keep its original color
8Blanching line machine
This machine is used to deactivate the activity of the oxidase, take off the starch, separate out the redusing sugar, also after blaching,it will get inner soft taste of french fries.9Air-dryer machine
Used to remove water.Also have many holes at the end of machine to leak out small part and waste part potato.10Hoist It is used to translate the finish Air-dryer potatoes, then hoist potatoes into Vibration dehydrator.11Vibration dehydrator
Used to remove water.Also have many holes at the end of machine to leak out small part and waste part potato.12Continuous frying line machineThis machine is used to unified fry sticks in short time.13Vibrating oil off machineThis machine is used to de-oil with the vibrating14Dried degreasing machineUse fan to blow off the water on stick surface, then deliver sticks into the freezer. 15HoistIt is used to between Dried degreasing machine and freezing machine 16Quick freezing machine
It is used to quick freezing the french fries in short time, fries center temperature at -18 ºC, Can the maximum keep the original flavor and product quality17Automatic packaging machineIt is used to pack the french fries automatically.
Technical Parameters
| Equipment name | Dimensions | Electric Information |
| Hoister | 2000x800x1600mm | 0.55KW/ 380V/ 50HZ |
| Washing and peeling machine | 3400x900x1400mm | 4.7KW/ 380V/ 50HZ |
| Hoister | 2000x800x1600mm | 0.55KW/ 380V/ 50HZ |
| Washing and peeling machine | 3400x900x1400mm | 4.7KW/ 380V/ 50HZ |
| Inspecting table | 4000x800x900mm | 0.75KW/ 380V/ 50HZ |
| Potato cutter | 950x800x950mm | 1.1KW/ 380V/ 50HZ |
| Water bucket elevator | 2200x1000x1500mm | 2200*1000*1500mm |
| Miscellaneous machine | 3000x1000x1300mm | 2.2KW/ 380V/ 50HZ |
| Rinsing line machine | 5000x1200x1300mm | 6.6kw/380v/50Hz/3P |
| Blanching line machine | 6000x1200x1400mm | 120kw/380v/50Hz/3P |
| Vibration de-water machine | 1800x1000x900mm | 0.5kw/380v/50Hz/3P |
| Air-dryer machine | 5000x1200x1400mm | 11kw/380v/50Hz/3P |
| Hoister | 1500x800x1300mm | 0.75KW/ 380V/ 50HZ |
| Continuous frying line machine | 6000x1200x2400mm | 140kw/380v/50Hz/3P |
| Vibration de-oil machine | 1500x1000x1300mm | 0.5KW/ 380V/ 50HZ |
| Air cooling dehydrator | 5000x1200x1600mm | 11KW/ 380V/ 50HZ |
| Hoister | 2000x1000x2200mm | 0.75KW/ 380V/ 50HZ |
| IQF Tunnel Freezer | 8100x3720x2900mm | 88.3KW/ 380V/ 50HZ |
| Refrigeration Compressors Systems | 4500x2500x2300mm | 80KW/ 380V/ 50HZ |
| Automatic weighing and packing machine | 3500x3000x2800mm | 4.5KW,380V/50HZ |

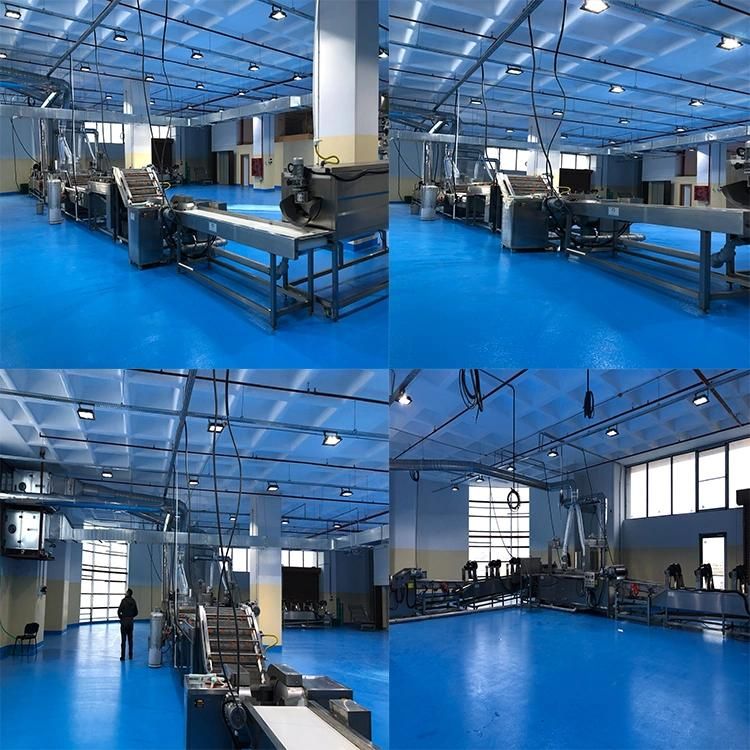

Installation example
Customer Visiting

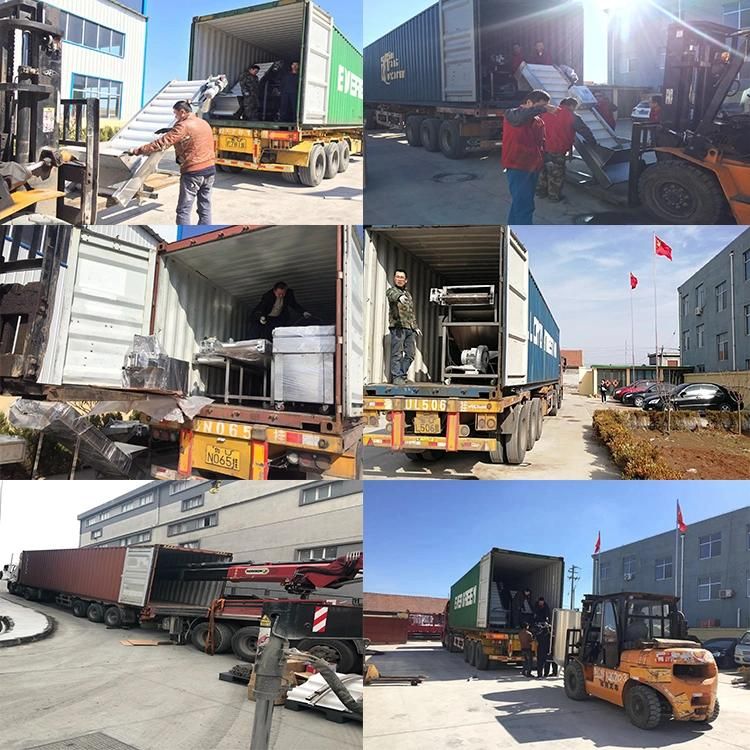

Delivery&Container Loading
FAQ
Q: Are You A Factory or A Trading Company?
A: We are the manufacturer with professional produce experience on Food Machinery more than 15 years.We own both of Domestic and international sales department.We provide perfect OEM and after-sale service.
Q: How do I know about the details and quality of your machine?
A: First, we have product brochures covering all details including parameter, material, output, etc. of most of our production lines; secondly, we can provide you with videos filmed on-site with details about the working process and how mechanical parts work during operation; at last, you are warmly welcomed for on-site inspection at our factories.
Q:How do I know that the machine I ordered at your company is working well?
A:Before delivery,We will test your machine and send a test video to you.
Q:How should I do if meet some trouble while using?
A:We provide lifetime warranty service,We can send you components to you for free,we can supply English manual book and also take a video for showing how to resolve the problems or dispatch our worker to your factory.
We are looking forward to receive your good news, pls feel free to contact us ~~
