• Model NO.：PEDK-13090
• Structure Type：Gantry Type
• Laser Classification：Gaseous Laser
• Laser Technology：Laser Vapor Cutting
• Engraving Machine Type：Laser Engraving Machine
• Usage：Woodworking
• Power：High Power
• Drive Type：Stepper Drive
• Certification：SGS, CE, ISO 9001
• Laser Type：CO2
• Control：CNC
• Current：AC
• Working Area：1300*900mm (4 Feet*3 Feet) CO2 Laser Cutters
• Laser Power：60W , 80W , 100W , 130W , 150W
• Engraving Speed：0-60000mm,Min
• Cutting Speed：0-10000mm,Min
• Cutting Thickness：0-25mm Acrylic (Others Determined by Materials)
• Repeat Location Accuracy：+,-0.0125mm
• Voltage：AC220V,50Hz or 110V,60Hz
• Transport Package：Standard Wood Case Package
• Trademark：Perfect Laser
• Origin：Wuhan, China
• HS Code：8456100090
• Production Capacity：1000 Sets,Month

Working Area

1300x900mm (4 feet*3 feet) Co2 Laser Cutters

Laser Power

60w / 80w / 100w / 130w / 150w

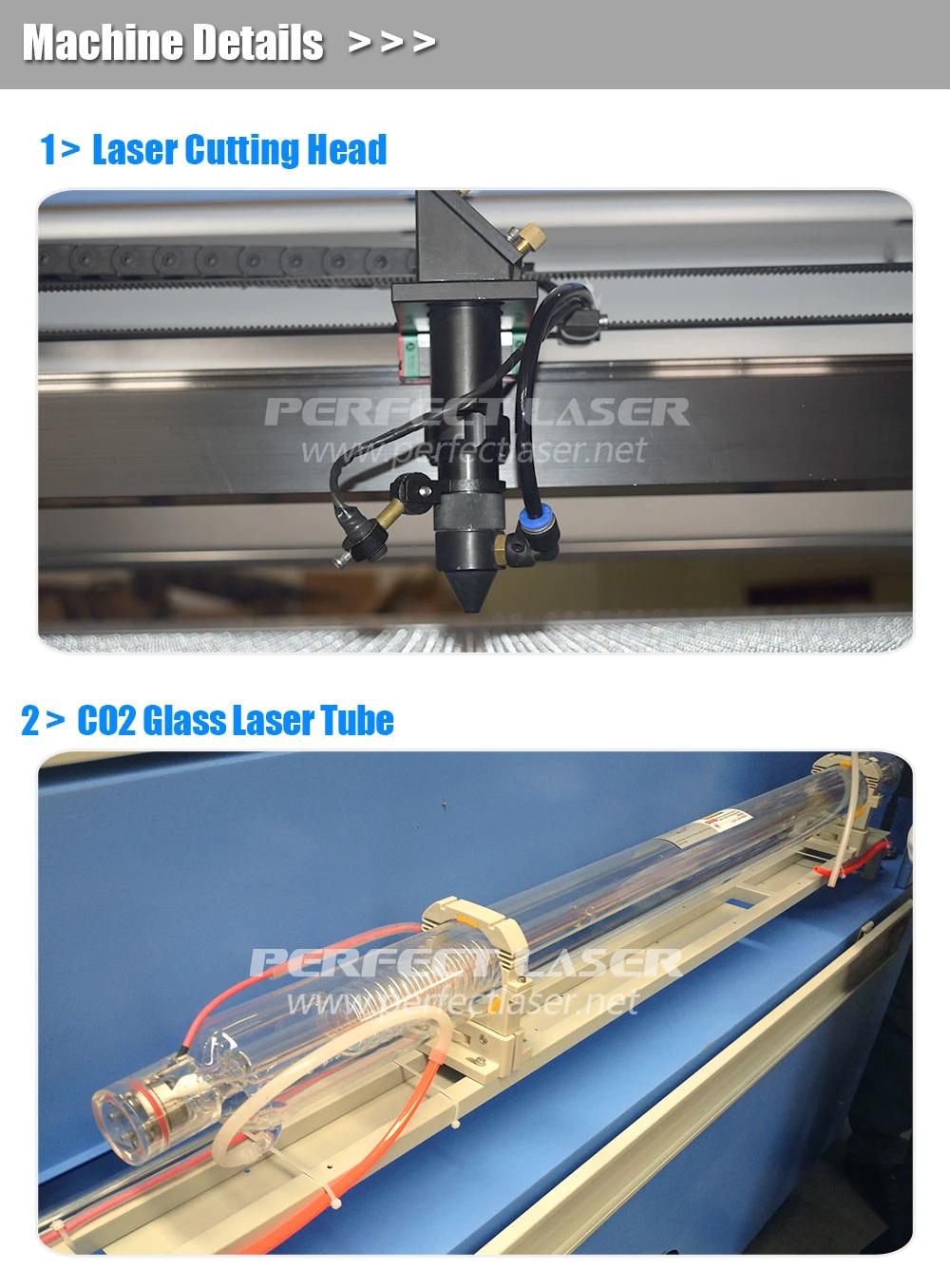

Laser Type

Hermetic and Detached Co2 Laser Tube

Engraving Speed

0-60000mm/min

Cutting Speed

0-10000mm/min

Cutting Thickness

0-25mm acrylic (Others Determined by Materials)

Repeat Location Accuracy

+/-0.0125mm

Driving Mode

DC0.8A 24V Stepper Motor

Position System

Red dot Laser Pointer

Interface

USB port transfer

Voltage

AC220v/50hz or 110v/60hz

Machine Power

900w

Controlling System

CNC Professional Control System

Support Graphics Mode

BMP,HPGL,JPEG,GIF,TIFF,PCX,TAG,DST, PLT,DXF etc.

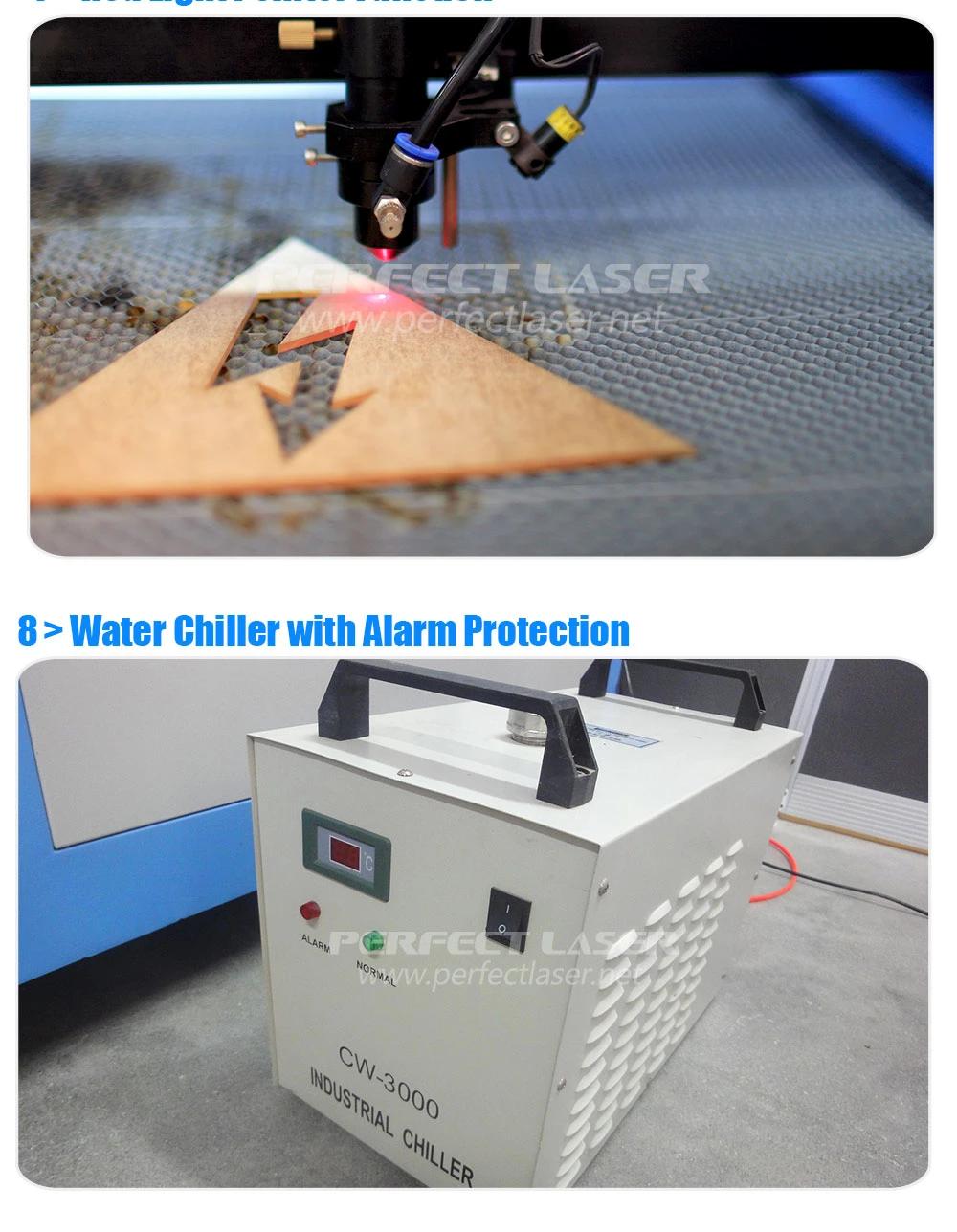

Cooling Mode

CW-3000 Water Cooling (with Protection Function)

Auxiliary Devices

Exhaust Fan and Exhaust Pipe

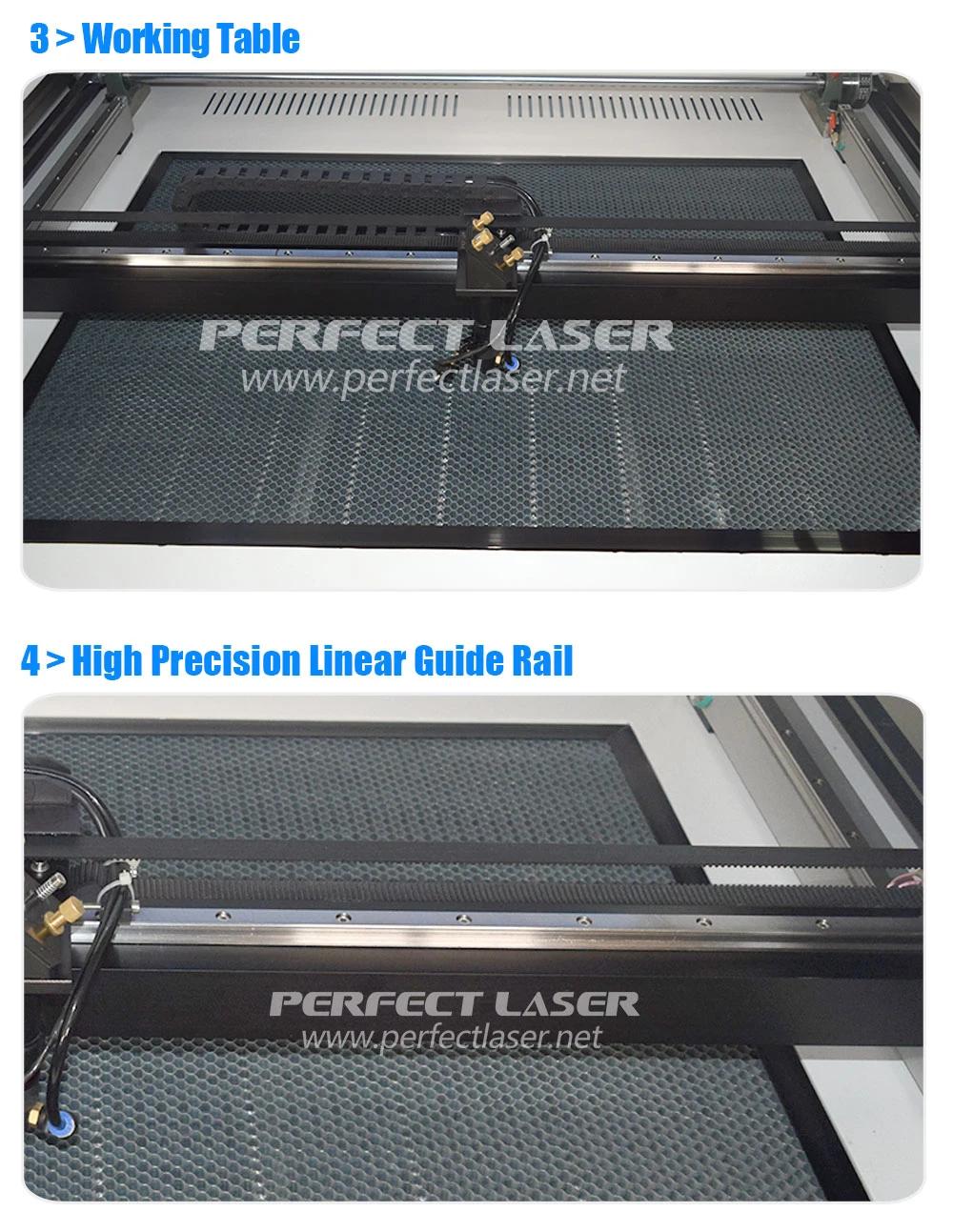

Cutting Platform

Professional Thickening Strip or Honeycomb Work Table

Power Control Mode

Laser Energy Combining Movement Control System

Software

Professional Reader Laser Cutting Software

Operating Temperature

0-45C

Operating Humidity

5-95%

Packing

Wooden Box

Guarantee Time

12 Months for Machine, 3-10 Months for Laser Tube

Operation

VCD Training, Engineer Overseas Available

Machine Size

1970mm*1480mm*1250mm

Company Introduction
