CO2 Laser Engraving Cutting Paper Laser Cutter Engraver Machine
Zhangpu Guangguang Plastic Products Co., Ltd.- After-sales Service：Online Support
- Warranty：3years
- Application：Home Appliance, Textile Machinery, Woodwork Industry, Advertising Industry
- Cooling System：Water Cooling
- Technical Class：Continuous Wave Laser
- Applicable Material：Nonmetal
Base Info
- Model NO.：PEDK-13090
- Structure Type：Desktop
- Laser Classification：Free Electron Laser
- Laser Technology：Laser Control Fault Cutting
- Engraving Machine Type：Laser Engraving Machine
- Power：High Power
- Drive Type：Stepper Drive
- Certification：SGS, CE, ISO 9001
- Laser Type：CO2
- Control：Automatic
- Current：AC
- Support Graphics Mode：BMP, Hpgl, JPEG, GIF, Tiff, Pcx, Tag, Dst, Plt, Dxf etc.
- Engraving Speed：0-60000mm,S
- Cutting Speed：0-10000mm,S
- Working Area：1300*900mm (4 Feet*3 Feet) CO2 Laser Cutters
- Laser Power：60W , 80W , 100W , 130W , 150W
- 60W / 80W / 100W / 130W / 150W：0-25mm Acrylic (Others Determined by Materials)
- Repeat Location Accuracy：+,-0.0125mm
- Voltage：AC220V,50Hz or 110V,60Hz
- Transport Package：Sea-Worthy Packing or Air-Worthy Packing
- Specification：CE & ISO 9001: 2000
- Trademark：Perfect Laser
- Origin：China
- HS Code：845610
- Production Capacity：5000 Sets , Month
Description
Working Area
1300x900mm (4 feet*3 feet) Co2 Laser Cutters
Laser Power
60w / 80w / 100w / 130w / 150w
Laser Type

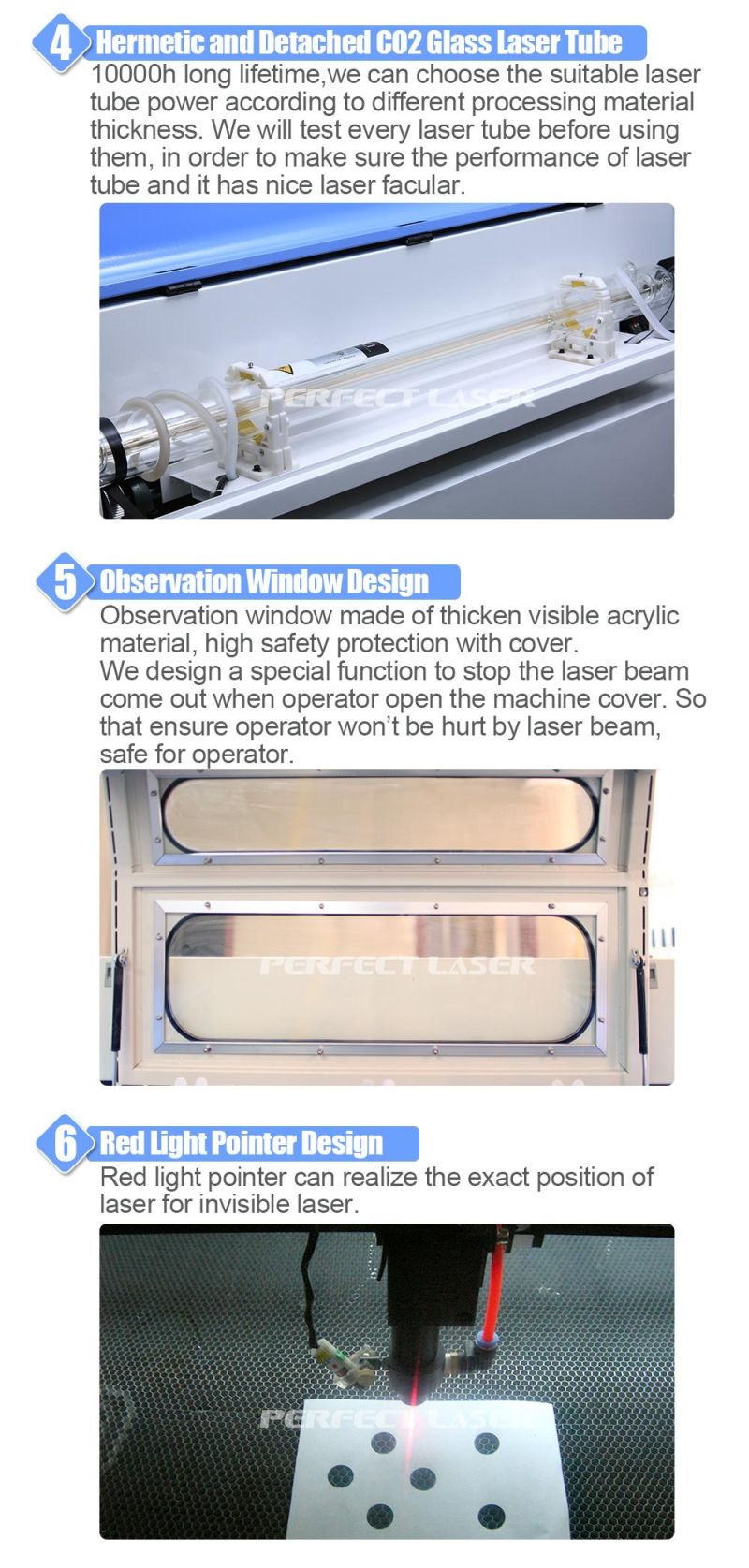

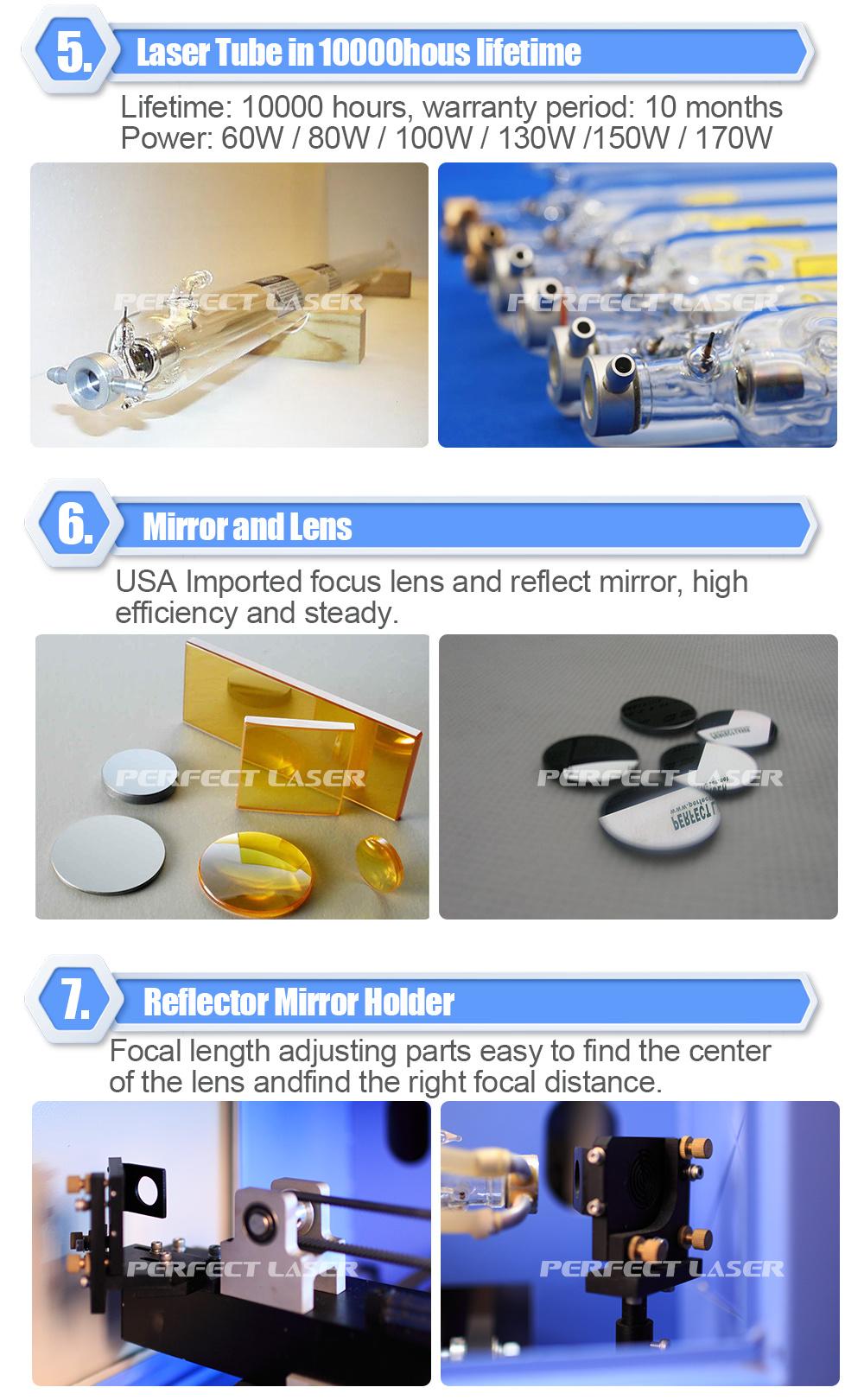

Hermetic and Detached Co2 Laser Tube
Engraving Speed
0-60000mm/min
Cutting Speed
0-10000mm/min
Cutting Thickness
0-25mm acrylic (Others Determined by Materials)
Repeat Location Accuracy
+/-0.0125mm
Driving Mode

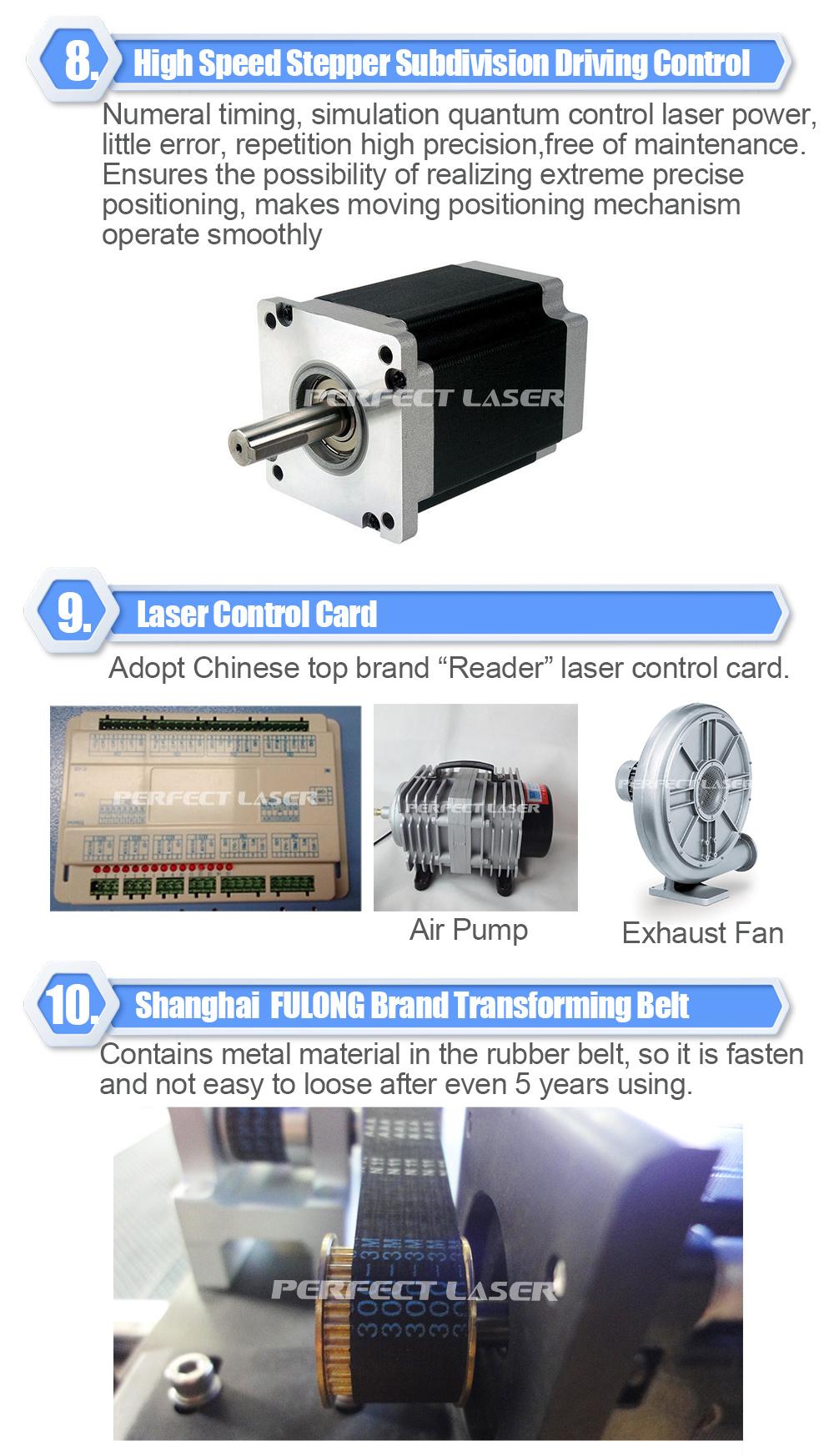

DC0.8A 24V Stepper Motor
Position System
Red dot Laser Pointer
Interface
USB port transfer
Voltage
AC220v/50hz or 110v/60hz
Machine Power
900w
Controlling System
CNC Professional Control System
Support Graphics Mode
BMP,HPGL,JPEG,GIF,TIFF,PCX,TAG,DST, PLT,DXF etc.
Cooling Mode

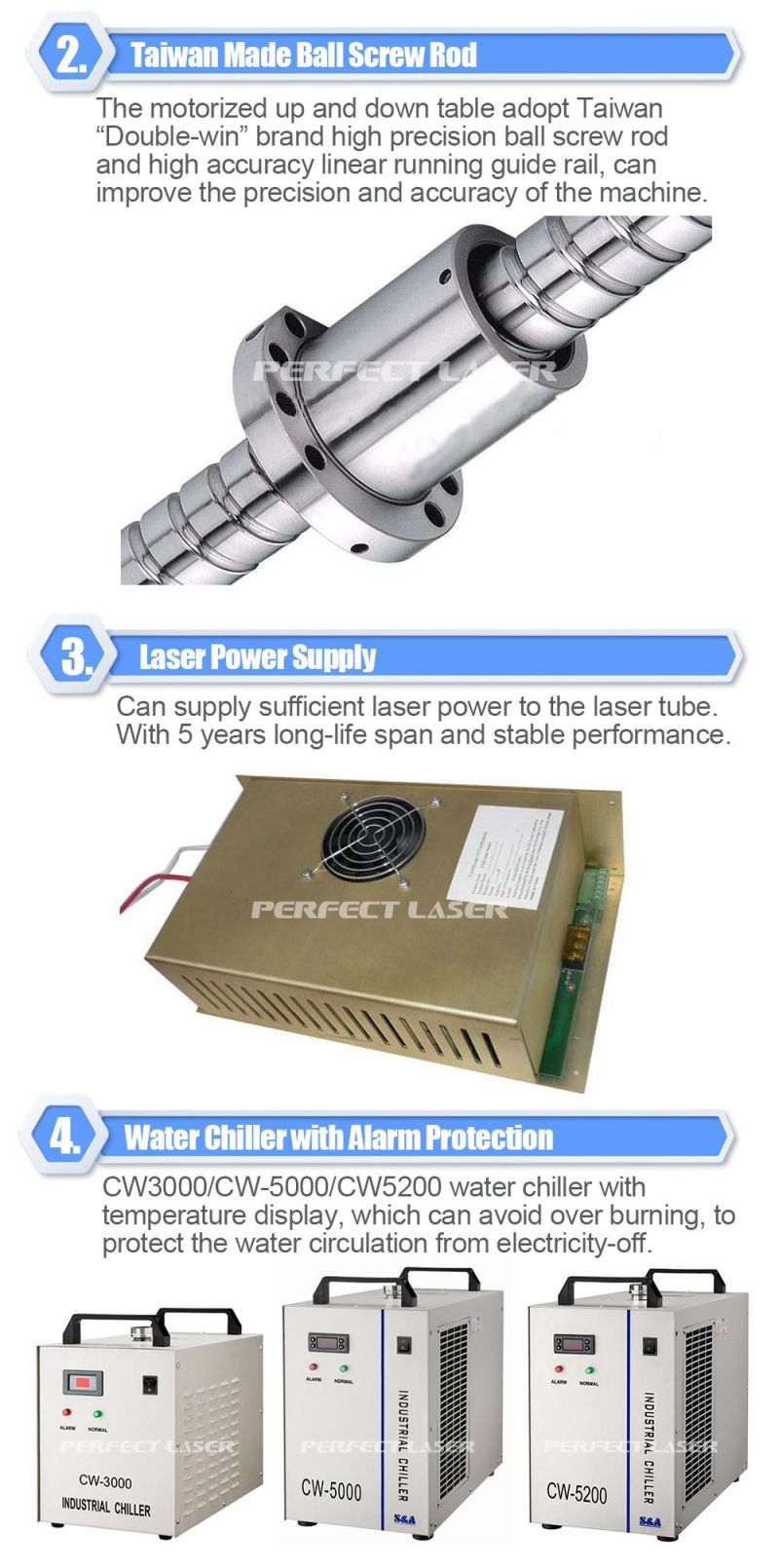

CW-3000 Water Cooling (with Protection Function)
Auxiliary Devices
Exhaust Fan and Exhaust Pipe
Cutting Platform

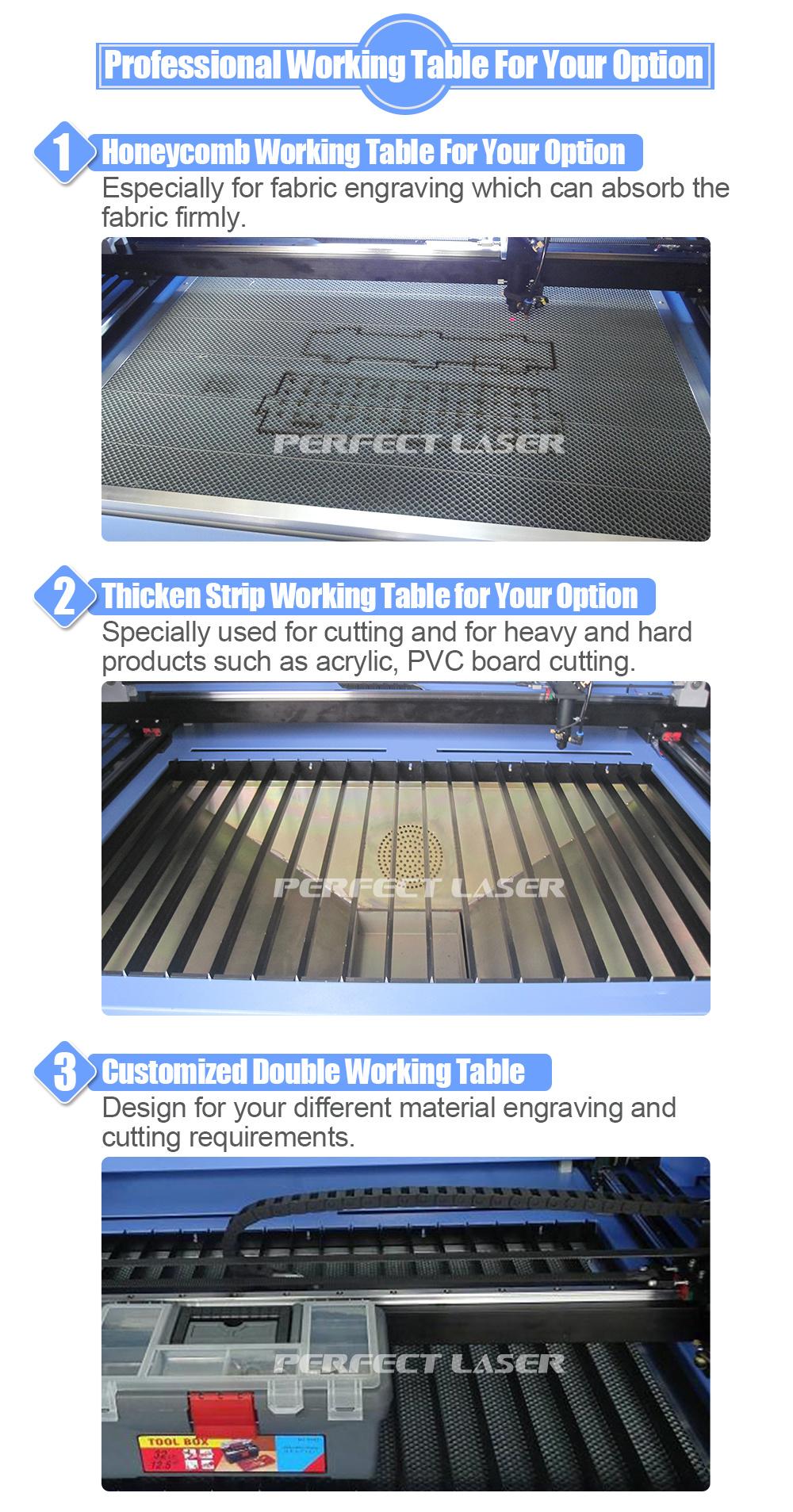

Professional Thickening Strip or Honeycomb Work Table
Power Control Mode
Laser Energy Combining Movement Control System
Software

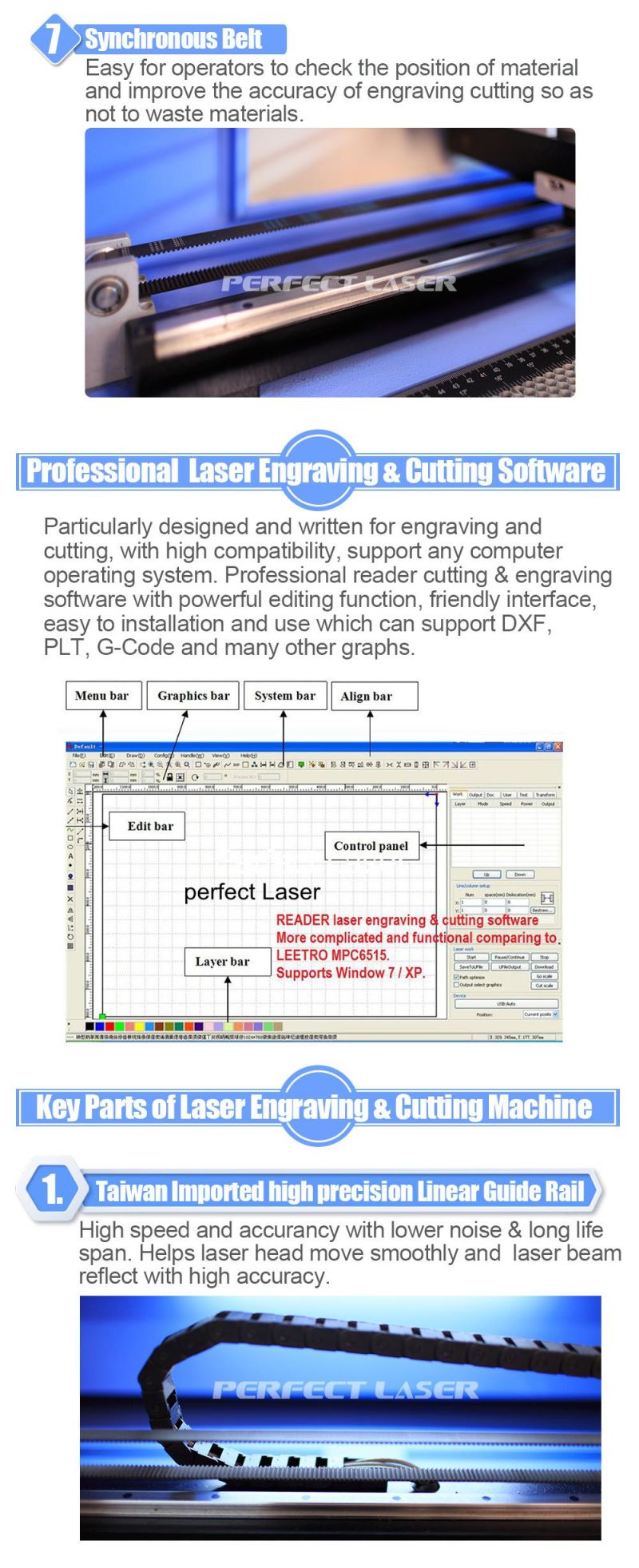

Professional Reader Laser Cutting Software
Operating Temperature
0-45C
Operating Humidity
5-95%
Packing
Wooden Box
Guarantee Time
12 Months for Machine, 3-10 Months for Laser Tube
Operation
VCD Training, Engineer Overseas Available
Machine Size
1970mm*1480mm*1250mm
Machine Details
About US ( PERFECT LASER ):
Our machine series: CO2 Laser Engraving and Cutting Machine for all non-metal materials.
Laser Marking Machine including: Fiber laser, diode pump laser, YAG laser, CO2 laser
CNC Router Engraving Machine for Advertising field, Woodworking, Stone/Mable engraving etc.
Metal Cutting Machine, Like CNC plasma / flame cutting machine(for thin metals), YAG metal laser cutting machine(can 7-8mm Mild Steel and 5-6mm Mild Steel ), Fiber metal laser cutting machine( can cut 8-12 mm Carbon Steel )
3D Crystal Engraving Machine
Laser Welding Machine for stainless steel, iorn, copper welding.
Inkjet Printer Machine on non-metal materials, like: Style no, production date, serial no printing, eggs printing and so on.
Laser Engraving Cutting Machine Price Samples:
Please advise us the following information, then we can recommend you the most suitable model, right now, don't hesitate to contact China Perfect Laser!
- The exact material you want to cut? (Acrylic, Wood, Leather, Paper, , , , etc)
- The cutting depth on above materials? (Like, 3 mm, 5 mm, 7 mm, 15 mm...)T
- He working area you demand? (max dimension of material, width*length, 400*300mm, 1300*900 mm, 1300*2500mm...)
Welcome to contact us for perfect laser engraving cutting solution
