• Model NO.：DT
• Electric Parts：LG, FUJI, Omron etc
• Warranty：1 Year
• Raw Material：Wheatflour
• Manufacture：Jinan Datong
• Motor Brand：Siemens China Brand
• Inverter：Delta and China Brand
• Transport Package：Woodcase
• Specification：CE ISO BV SGS
• Trademark：Jinan Datong Machinery Company
• Origin：Jinan
• HS Code：84361000
• Production Capacity：100-150kg,H

Main parts

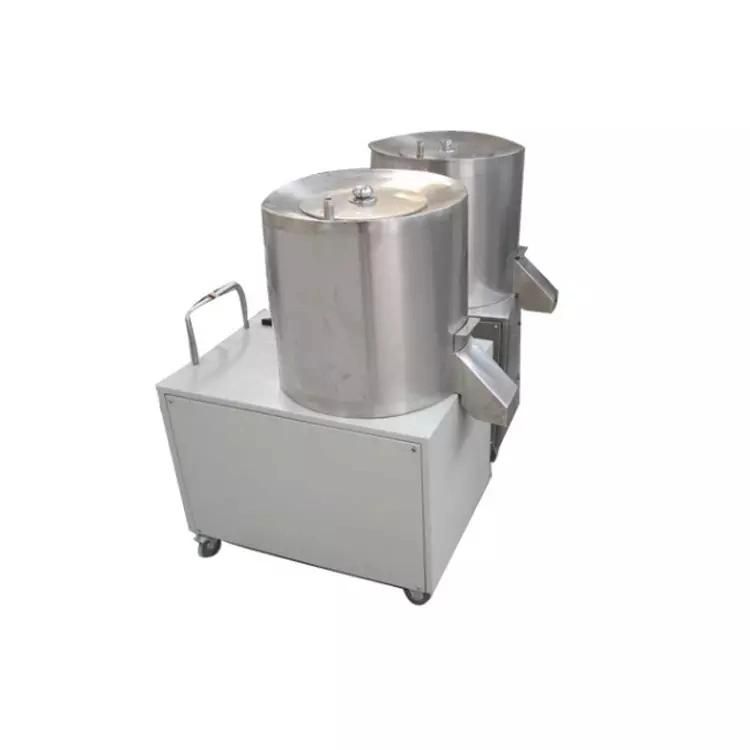

Name: mixer

Brand: datong

Original: jinan
Blender makes the raw material adding to water and liquid chemical additive fully mixed.This part that touches mixer to material adopts the stainless steel material. The discharge hole adopts the new handle-opened design. It has the good seal so that the materials.

Main parts

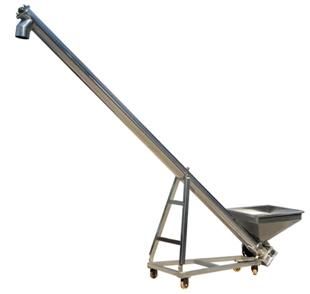

Name: conveyor

Brand: Datong

Original: jinan
The mixed materials can be conveyed in the stainless steel roller to the feeding machine (feeder) of extruder without any leaking, dusting and pollution; Feed quantity and speed is even and stable.

Main parts

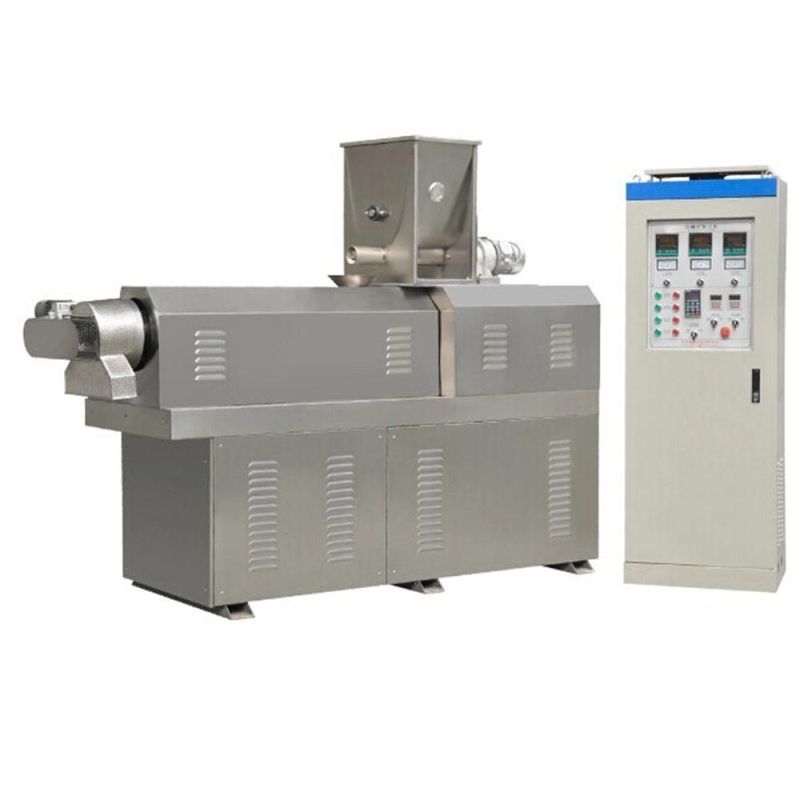

Name: extruder

Brand: Datong

Original: jinan
The twin -screw extruder is made of the feeding, extruding , cutting , heating , transmission and controlling system. The screws are made of the alloy steel; The forced lubrication system ; Auto-temperature control system; Auto-speed control system Self-cleaning. With the extruder, the starch is modified via heating and pressing.

Main parts

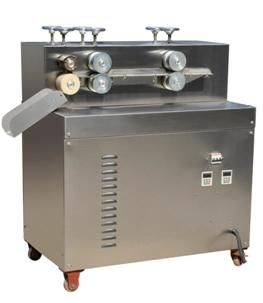

Name: cutter

Brand:Datong
Original: jinan
it is made of sus and cut the products .it have two motor ,one motor is to control the transfering the products,another one is controlled cutting speed .it have two inverters also .

Main parts

Name: hoister

Brand:datong
Original: jinan

Hoister conveys the food from the low to high, according to the craft; decide the hoister height and the level distance.
Hoister can be classified into big and small according to the hoister height and the level distance.

Main parts

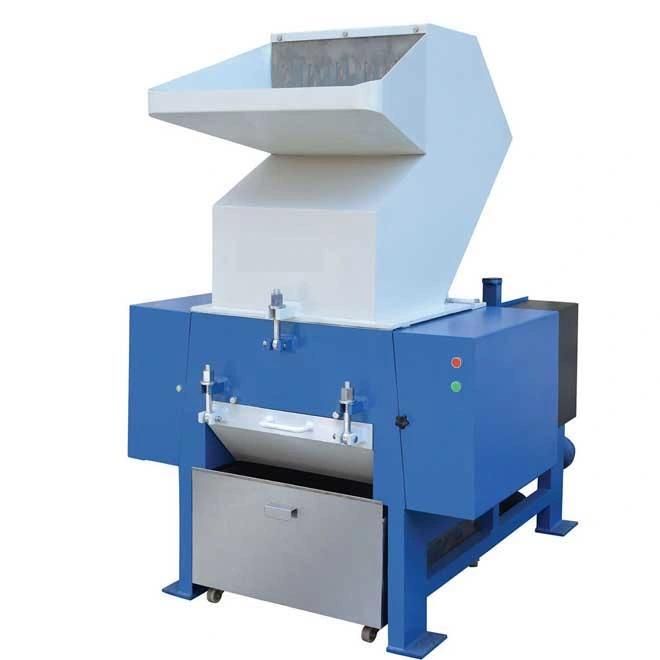

Name: crusher

Brand:Datong
Original: jinan

crusher is making the flakes into different shapes .we change the shape of machine to do the different sizes products .it have differet capacity and made of sus304 food grade .

3.Technical parameter for snacks food extruder:

Model

Install Power(KW)

Consumption(kw)

Capacity(kg/h)

Dimension (m)

DT65 processing line

74

52

100-150

17*1.2*2.2

DT70 processing line

95

70

200-300

20*1.5*2.2

DT85 processing line

139

102

300-500

28*3.5*4.3
