• Model NO.：5XZ-6
• Application：Beans, Wheat
• Voltage：380V
• Press Materials：Soybean
• Condition：New
• Customized：Customized
• Model：5xz-6 Grain Gravity Separator
• Capacity：5ton Per Hour for Grain Seeds
• Usage：Remove Bad Seed and Light Impurities
• Sieve Table Size：3000*1200 mm
• Power：8.95kw
• Air Blower：Three Air Blower
• Features：Big Capacity,High Separating Rate
• Suitable Seeds：All Grain Seeds,Bean Seeds
• Applied for：Grain Seeds Processing Plant
• Quality：High Quality Grain Gravity Separator
• Price：Best Price for Gravity Separator
• Transport Package：Wooden Package or Nude Package
• Specification：3440*1630*1900 mm
• Trademark：DB Elephants
• Origin：Made in China
• HS Code：843710900
• Production Capacity：100sets Per Month
• Package size per unit product：344.00cm * 163.00cm * 190.00cm
• Gross weight per unit product：2000.000kg

Basic Info.

Model NO. 5XZ-6 Application Beans, Wheat Voltage 380V Press Materials Soybean Condition New Customized Customized Model 5xz-6 Grain Gravity Separator Capacity 5ton Per Hour for Grain Seeds Usage Remove Bad Seed and Light Impurities Sieve Table Size 3000*1200 mm Power 8.95kw Air Blower Three Air Blower Features Big Capacity,High Separating Rate Suitable Seeds All Grain Seeds,Bean Seeds Applied for Grain Seeds Processing Plant Quality High Quality Grain Gravity Separator Price Best Price for Gravity Separator Transport Package Wooden Package or Nude Package Specification 3440*1630*1900 mm Trademark DB Elephants Origin Made in China HS Code 843710900 Production Capacity 100sets Per Month

Packaging & Delivery

Package size per unit product 344.00cm * 163.00cm * 190.00cm Gross weight per unit product 2000.000kg

Product Description

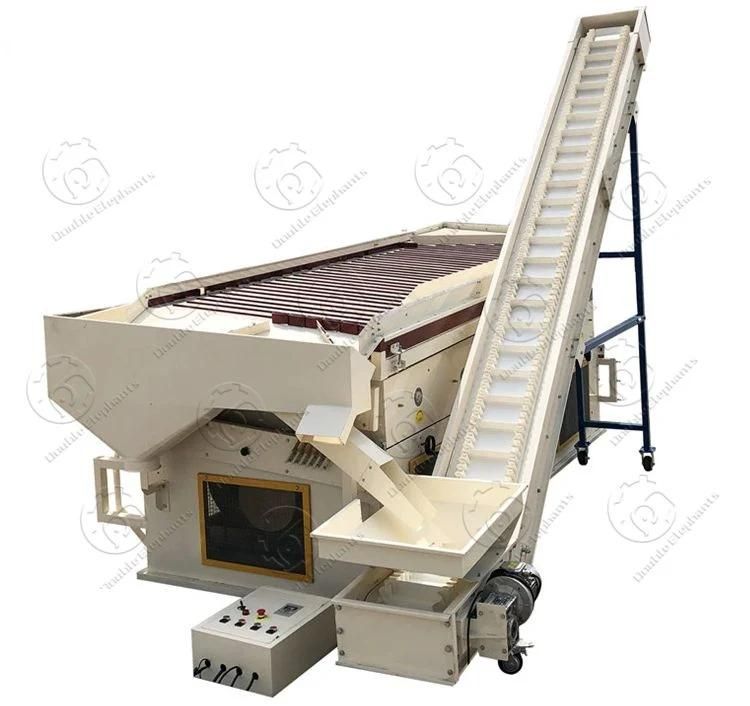

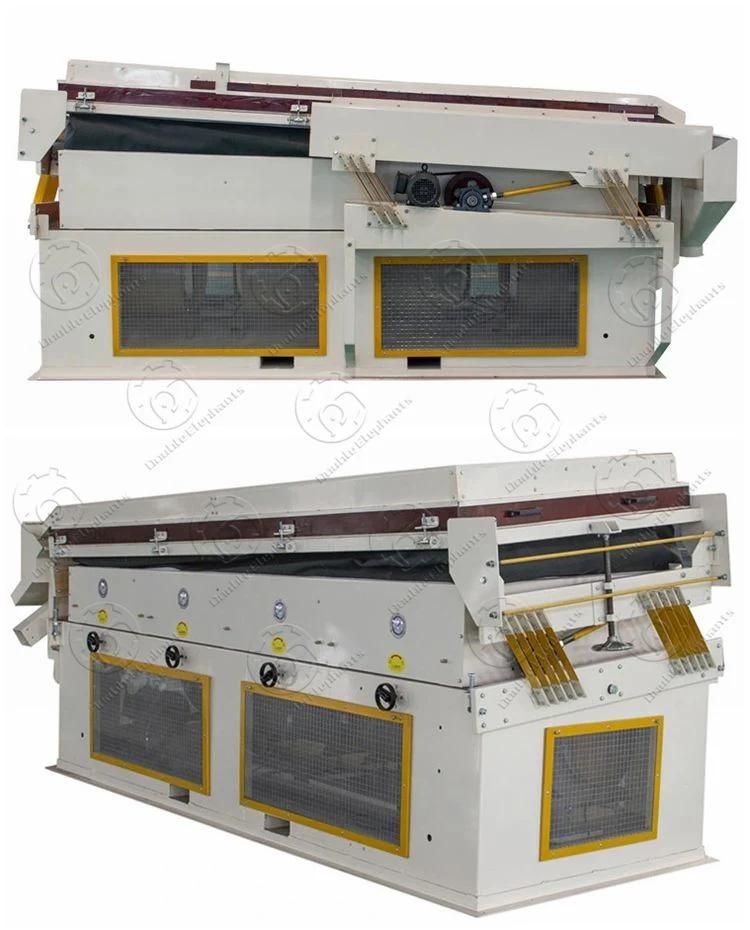

Gain Bean Seeds Gravity Separator

Introduction and Application:
Gravity separator is used for fine cleaning and impurity separation of seeds and beans with identical particle size but with differences in their specific weight.

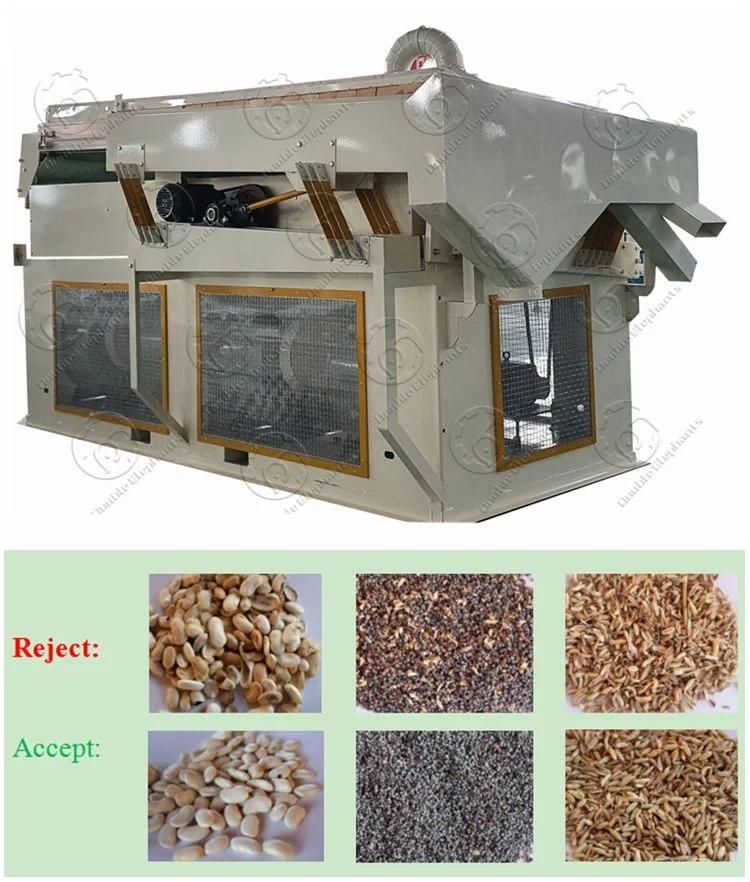

The Gravity Separator is used to remove partially eaten, immature, insect damaged sick seed and moldy seed from good seed, which traditional cleaning method by Seed Cleaner and Indented cylinder prove to be less effective.


Working Principle

The grain gravity separator works on a fluidized bed principle. Materials is fed on oscillating sieve deck. By the pressure of air & deck oscillation, material is fluidized and stratified. Heavy fraction sink into the deck while light fraction is suspended in fluidized state. Deck oscillation causing heavy and light fraction travel in separated path and collected separately.

Usage for gravity separator
The Gravity Separator is suitable for efficient cleaning all cereals, grains ,pulses ,beans and seeds of all crops such as wheat, paddy, barely, maize, millets, sunflower seed, soybean, rice, quinoa seed, chia seed. oil seeds ,sesame , clover seed, vegetable seed etc.


Specification:

Capacity (Count by wheat)	5000 kg/h
Sieve Table Size	3000*1200 mm
Total Power	8.95 KW
Motor for build-in Air Blower	Three air blower (1.5KW*4 = 6 KW)
Motor for vibration	2.2 KW (the vibration speed of deck can be adjusted by frequency converter from 0-480r/m)
Motor for Good Grain Release	0.75 KW
Lateral angle of inclination	3°~6°
Longitudinal angle of inclination	0~6°
Amplitude	7mm
Dimension (L*W*H)	3440×1630×1900 mm
Weight	2000kg
