• Model NO.：ZH-2000L
• Material：SS304
• Thickness：Inner 3mm Outside :2mm
• Heating：Gas Steam Generator
• Control：Automatic
• Insulation：Rock Wool Th:80-100mm
• Inner Surface：Pickled and Passivation
• Polishing：0.6um
• Transport Package：Steel Frame or Wooden Case
• Specification：as customer request
• Trademark：Zunhuang
• Origin：China
• Production Capacity：500piece

Basic Info.

Model NO. ZH-2000L Material SS304 Thickness Inner 3mm Outside :2mm Heating Gas Steam Generator Control Automatic Insulation Rock Wool Th:80-100mm Inner Surface Pickled and Passivation Polishing 0.6um Transport Package Steel Frame or Wooden Case Specification as customer request Trademark Zunhuang Origin China Production Capacity 500piece

Product Description

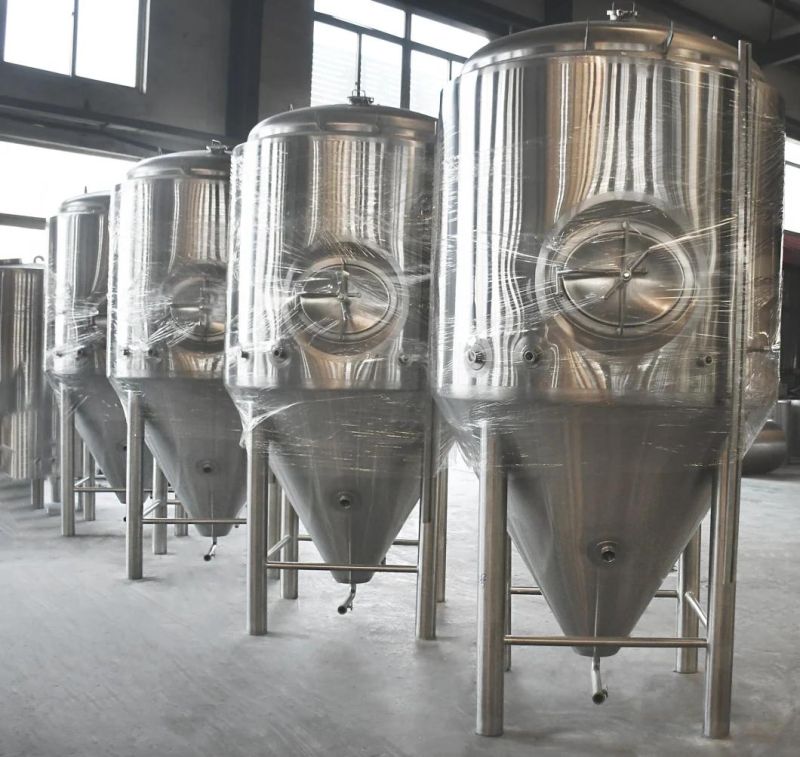

Fermentation System

Zunhuang company are generally use 12 days as fermentation to configured fermentor,high quality fermentation, fermented good quality beer,the right amount of good commodity market with a bright future.

The fermentation tank adopt cooling jacket and two-stage cooling refrigerant control mode at the cone and cylinder. So such design and cooling method to control the flow of the cooling liquid state in fermentation tank by the size of the two-stage cooling refrigerant flow. It will improve heat transfer efficiency and cooling rate, faster cooling, and reduce cooling costs and high economic efficiency equipment commercial operation.

Tank date:

1. Capacity: 50L-30000L, 1bbl-100bbl, +25% Head space

2. Interior shell thickness 3-6mm, Exterior shell=2mm

3. 100% TIG welding with pure argon gas shield

4. Interior finish: pickled and passivated, external polished, 80mm insulated

5. Test pressure 3 bar, working pressure 1.5 bar

6. Glycol zones (Both on side and concial/bottom)

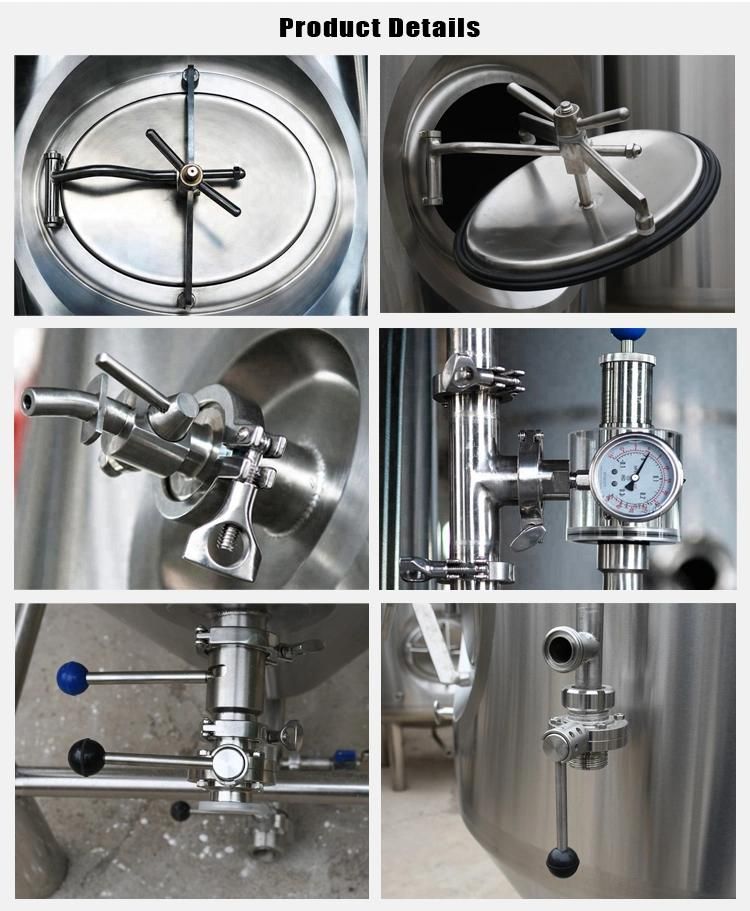

7. 60°conical bottom for Fermener, Shadow less side man way

8. Racking arm, Sample valve, Pressure relief valve on the top, Dry hopping on the top

9. Mechanical relief valve 3 bar on CIP arm with pressure gauge

10.Adjustable tank leveling pads

Beer equipment list

1	malt milling system	malt miller machine grist case
2	Mash system	Mash tun/Brew kettle Lauter/whirlpool tank (Or mash tun/lauter and brew kettle whirlpool) Hot water tank(optional) Mash/wort/hot water pump Motors Wort oxygenation device Operation platform Plate heat exchanger
3	Fermenting system	Beer fermenters Bright beer tanks Yeast adding tank Accessories, such as sample valve, pressure gauge, safety valve and so on
4	Cooling system	Glycol tank Refrigerating unit Glycol pump
5	CIP cleaning system	disinfection tank & alkali tank &cleaning pump etc.
6	Controller	Control system, we have PLC automatic and semi-automatic, the elements brand include LG, Siemens and so on.
7	Kegging system	kegging system ( keg washer and keg filler machine), the control system brand is Siemens.
