Basic Info.

Model NO. SJSZ80x156 Certification CE, ISO9001:2008 Customized Customized Material Stainless Steel Power Supply 380V Three Phase Control System PLC Control System Inverter Delta Intelligent Temperature Controller Omron From Japan After Sale Service Life Long with Professional After Sale Team Contactor Schneider Machine Color as Request Cooling Method Spray Water Transport Package PE Film and Wooden Package Specification CE ISO9001 Trademark suke Origin Qingdao, China HS Code 84775900 Production Capacity 25sets/Year

Product Description

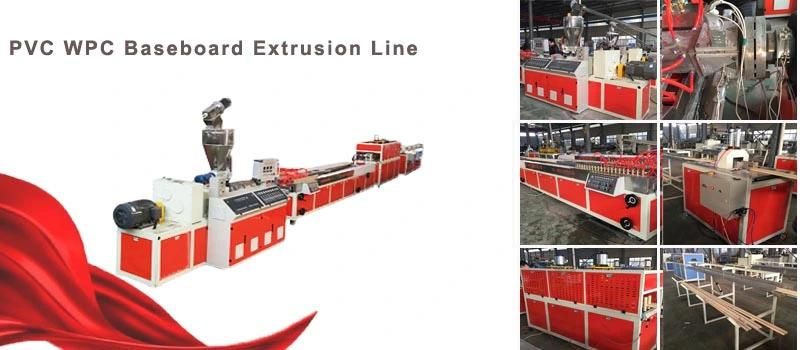

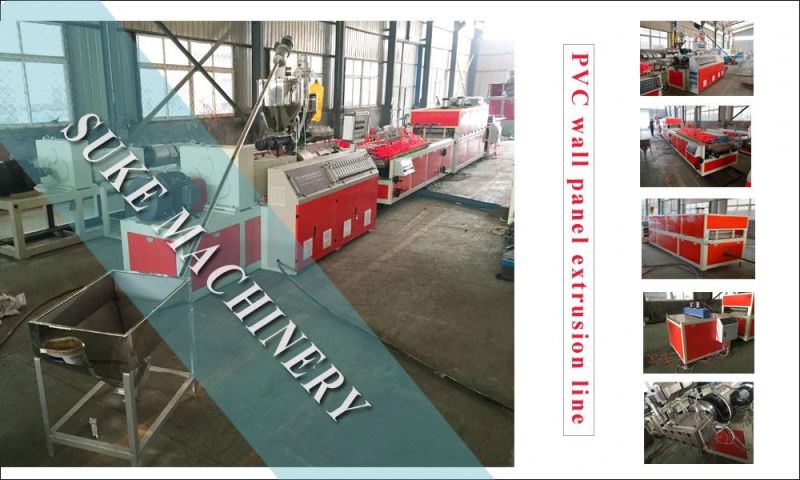

WPC Profile Wood Plastic Production Line




MACHIINE INTRODUCTION:

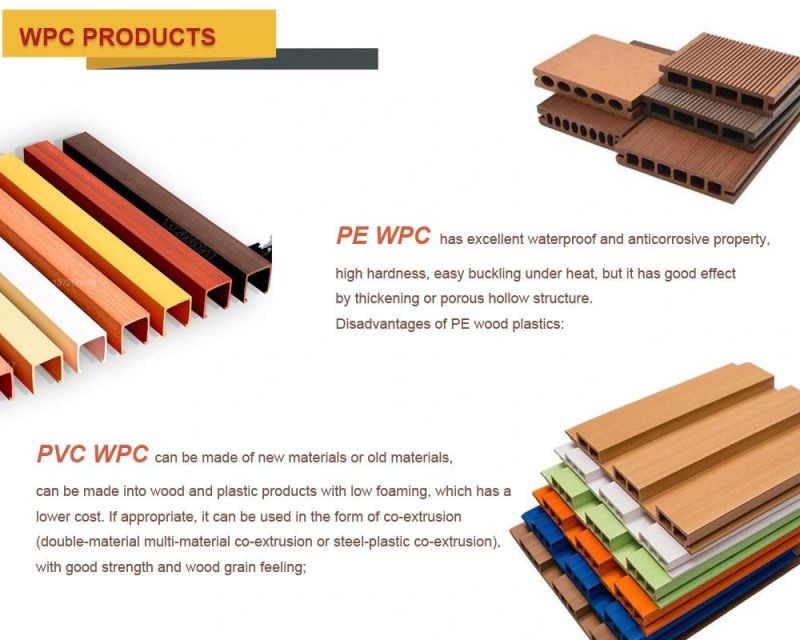

This production line is mainly used to produce WPC profile, as electric cable trunk, plank, rail  etc.

THIS LINE IS CONSISTE OF
1.1 Twin Screw Extruder SJSZ-65,      One set

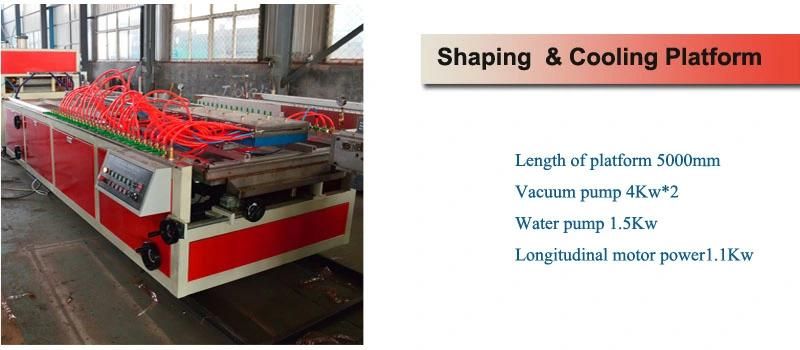

1.2 Vacuum Calibrating Table,            One set
1.3 haul-off machine,                           One set
1.4 Automatic Cutting Machine,          One set
1.5 Stacker                                          One set
1.5 Tilting table,                                  One set

Auxiliary Machines:
1. SWP400 Crusher
2. 300/600 Mixer
3. Power Dry and Mixer
4. Polish Machine
5. Sanding Machine


MACHINE SPECIFICATION:
2.1 Suitable resin PVC/PE/PP resin+wood powder+additives, as per our special formula
2.2 Line speed Max 4 m/min
2.3 Max output 150 kg/h
2.4 Outer dimension 24 * 1.5 * 2.6 m
2.5 Weight 11 T
2.6 Total power 89 kW
2.7 Power supply 380V± 10%, 50Hz; Controling power supply: 220V± 10%

MACHINE FAETURES:

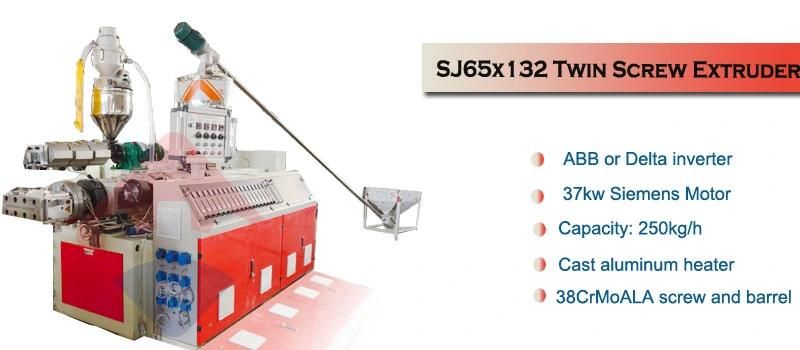

1. Conical twin-screw extruder, suitable for processing WPC powder raw materials.
2. Changing the moulds to produce many kinds of different WPC profiles.
3. Auxiliary machine: Mixing unit, Mould, Vacuum calibration table, Haul-off machine, Cutter and Stacker
