• Model NO.：DS-7
• Quality Grade：There Are Super Quality Type and Economic Type for
• Lifespan：Above Standard
• Supply Type：Manufactory
• Raw Material：Diamond, Cu, Sn, Fe, AG, Co, Ni, Wc, Mo, Graphite
• Usage：Stone Cutting
• Manufacturing Arts：Sinter
• Kind：Stone Sawing Machine
• Transport Package：White Box,Carton,Plywood Case
• Specification：SGS, CE
• Trademark：JDK
• Origin：Quanzhou, China
• HS Code：82079010
• Production Capacity：10000PCS,Day

Basic Info.

Model NO. DS-7 Quality Grade There Are Super Quality Type and Economic Type for Lifespan Above Standard Supply Type Manufactory Raw Material Diamond, Cu, Sn, Fe, AG, Co, Ni, Wc, Mo, Graphite Usage Stone Cutting Manufacturing Arts Sinter Kind Stone Sawing Machine Transport Package White Box/Carton/Plywood Case Specification SGS, CE Trademark JDK Origin Quanzhou, China HS Code 82079010 Production Capacity 10000PCS/Day

Product Description

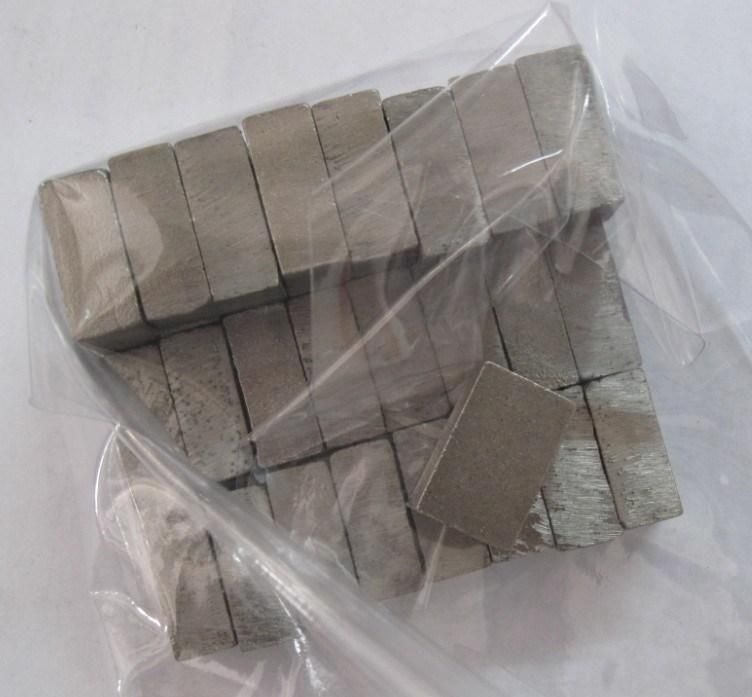

Diamond Segment for Mexico:



Diameter	Length	Thickness	Height	Core Thickness
250	40	3.0	10/15	1.8/2.2
300	40	3.0	10/15	2.2
350	40	3.0	10/15/20	2.2
400	40	3.6	10/15/20	2.6
450	40	4.0	10/15/20	3.0
500	40	4.2	10/15/20	3.0
600	40	4.6	10/15/20	3.6
700	40	5.2	10/15/20	4.0
800	40	6.0	10/15/20	4.5
900	24	7.0/6.4	15/20	5.0/5.5
1000	24	7.0/6.4	15/20	5.0/5.5
1200	24	7.6/7.0	15/20	5.5/6.0
1300	24	8.0/7.4	15/20	6.0
1400	24	8.4/7.8	15/20	6.5/7.0
1600	24	9.4/8.4	15/20	7.2
2000	24	10.6/9.6	15/20	9.0
2200	24	11.5/10.5	15/20	9.0
2500	24	12.5/11.5	15/20/30	9.5
3000	24	13.0/12.0	15/20/30	10
3500	24	13.0/12.0	15/20/30	10



Our Feature:

Factory == Own Exporting License == Quality Control == Competitive Price == Own Technology == OEM

Our advantage:

1. Manufacturer with more than 15 years experience
2. A great quantity of formula special for all kinds of different stone
3. Approved quality with factory competitive price
4. Long lifespan, good sharpness, stable performance and high cutting efficiency
5. Sandwich, groove type segment with shape straight, trapezia, boatshape, K, V, etc
6. Custom-design can be meet upon request, small trial order available any time, sample for testing can be delivery in very short time.

Payment:

T/T, Western Union, L/C, Cash

Delivery time:

For samples, shipped within 3 days after receiving the deposit,
For regular order, around 3-7 days, depends on the quantity of your order.

Packaging:

The inner packaging is carton box .The outer packaging is carton box Or woodencase.(If by air ,carton box will reduce the weight, if by sea, we suggest woodenbox for waterproof.

Shipment:

<45kg, express service is recommonded
>45kg, air or sea is a better choice 45kgs
