Moving Handheld Laser Printing Machine for Metal
Xiamen Teyate Aluminum Co., Ltd.- Laser Visibility：Invisible
- Applicable Material：Metal
- Cooling System：Air Cooling
- Technical Class：Pulse Laser
- Laser Wavelength：Fiber Laser
- Laser Classification：Solid Laser
Base Info
- Model NO.：CKD-PLMD-20,30
- Type：Optical Fiber Laser Marking Machine
- Marking Method：Scanning Marking
- Function：Marking, Engraving and Cutting
- Laser Power：Optional: 20W,30W,50W
- Application Material：Metal and Some Non-Metal
- Marking Speed：Optional: 1-2000,1-4000,1-7000
- Shipping Date：3-5 Work Days After Payment
- Warranty：2 Years for Laser Source, 1 Year for Others
- Computer：Option, with or Without, English Lanuage
- Transport Package：Wooden Box
- Specification：CE passed, Europe, Asia, America Standard
- Trademark：CKD LASER
- Origin：Shenzhen, China
- HS Code：8486204900
- Production Capacity：200 Set,Month
Description
TECH PARAMETERS
| Parameters | Unit | Data | Data | Data |
| Type | CKD-PLMD-20 | CKD-PLMD-30 | CKD-PLMD-30 | |
| Laser Average Output Power | W | 21±1 | 31±1 | 51±1 |
| Laser Type | Fiber Laser | Fiber Laser | Fiber Laser | |
| Central Wavelength | nm | 1064 | 1064 | 1064 |
| Repetition Frequency | KHz | 20-80 | 30-80 | 50-100 |
| Beam Quality | M2 | <1.6 | <1.6 | <1.6 |
| Focus Spot Diameter | mm | <0.01 | <0.01 | <0.01 |
| Max. Power of Single Pulse | mj | 1±0.05@20KHz | 1±0.05@30KHz | 1±0.05@30KHz |
| Life-span of Fiber Laser Module | hrs | ≥100,000 | ≥100,000 | ≥100,000 |
| Marking Speed of Single Line | mm/s | <9000 | <9000 | <9000 |
| Temperature of Operation Environment | ºC | 0-40 | 0-40 | 0-40 |
| Cooling Mode | Air Cooling | Air Cooling | Air Cooling | |
| Control board and software | EzCad2 | EzCad2 | EzCad2 | |
| Computer Operation System | Windows 7/8/10 | Windows 7/8/10 | Windows 7/8/10 | |
| Computer Requested | Choosable | Choosable | Choosable | |
| Power Source Requirement | 90-240V/50-60Hz/2KVA | 90-240V/50-60Hz/2KVA | 90-240V/50-60Hz/2KVA |
ADVANTAGE
* Multi material mark, metal and non-metal.
* Muil funstion, can mark series number, logo, bar code, QR and so on.
* Fast speed, improve work effeciency.
* Easier foucs by focus holder.
* Moving marking by trigger, marking big material is easy.

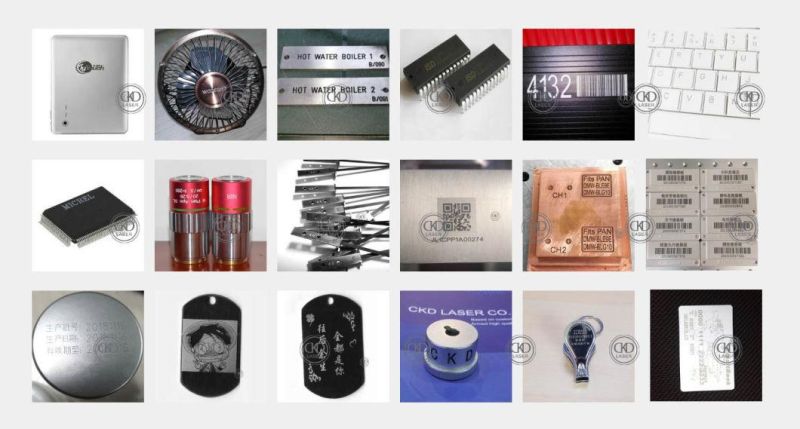

MARKING SAMPLES SHOW
PACKING & SHIPPING
* SAFETY PROTECTIVE INNER PACKING
* WOODEN BOX OUTSIDE PACKING
Shipping by air, by sea, by car, by train and by combined transport, send to all over the world
FAQ
Q1: What's the warranty?
A1: Two years for laser source, one year for other parts, change or repair the broken parts during warranty, our FAE will teach you how to remove the broken parts by video.
Warranty excluding man-made damage.
We are real warranty based series number on the machine, not false or empty promises, any too long time warranty is unreliable, ourt warrannty is effective and enforceable.
Q2: What's the package?
A2 : We have 3 layers package. For the outside, we adopt wood craft case.
In the middle, the machine is covered by foam,to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic
bag for waterproof.
Q3: How to install and run the machine?
A3: You will get details in user manual, you only need install the column with laser path and put on monitor of computer.
You will get a CD of orginal marking software and online video about basic operation.
You also will get a software operation manual and you can be a laser marking master after reading and practics.
You can send your questions to our online after-serive 24 hours.
Q4: How can i know the machine is what exactly i need?
A4: Please send us your material photo, marking speed demand, marking size demand and so on, you will get a promptly help from us.
Q5: Can you give a discount?
A5: No, because quality can't be discounted, but you can choose simple basic version for your application, please contact our sales to know more.
Q6: How you can keep your quality.
A6: Strict production process with four times checking from metal parts, optical components, installing specification to whole machines' 12 hours burning.
Meet CE, FDA, and IEC standards, you will get a unquestionably reliable machine from CKD LASER! Your every peny is deserve.
