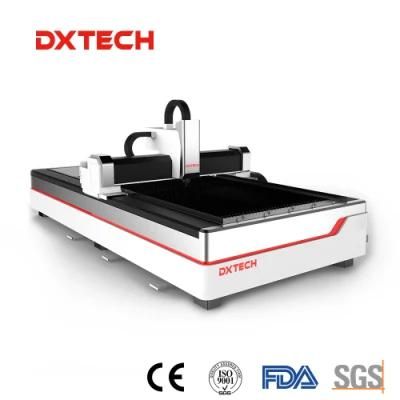

• Structure Type：Gantry Type
• Laser Classification：Fiber Laser
• Laser Technology：Fiber Laser
• Main Selling Point：Competitive Price
• Product Name：2000W Stainless Steel Carbon Fiber Laser Cutting
• Cutting Materials：Stainless Steel Carbon Steel etc
• Color：Customizable
• Driving System：Japan Yaskawa Servo Motor
• Function：Cutting Metal Materials
• Type：1530 Fiber Laser Cutting
• Transmission：Hiwin Guide Rails

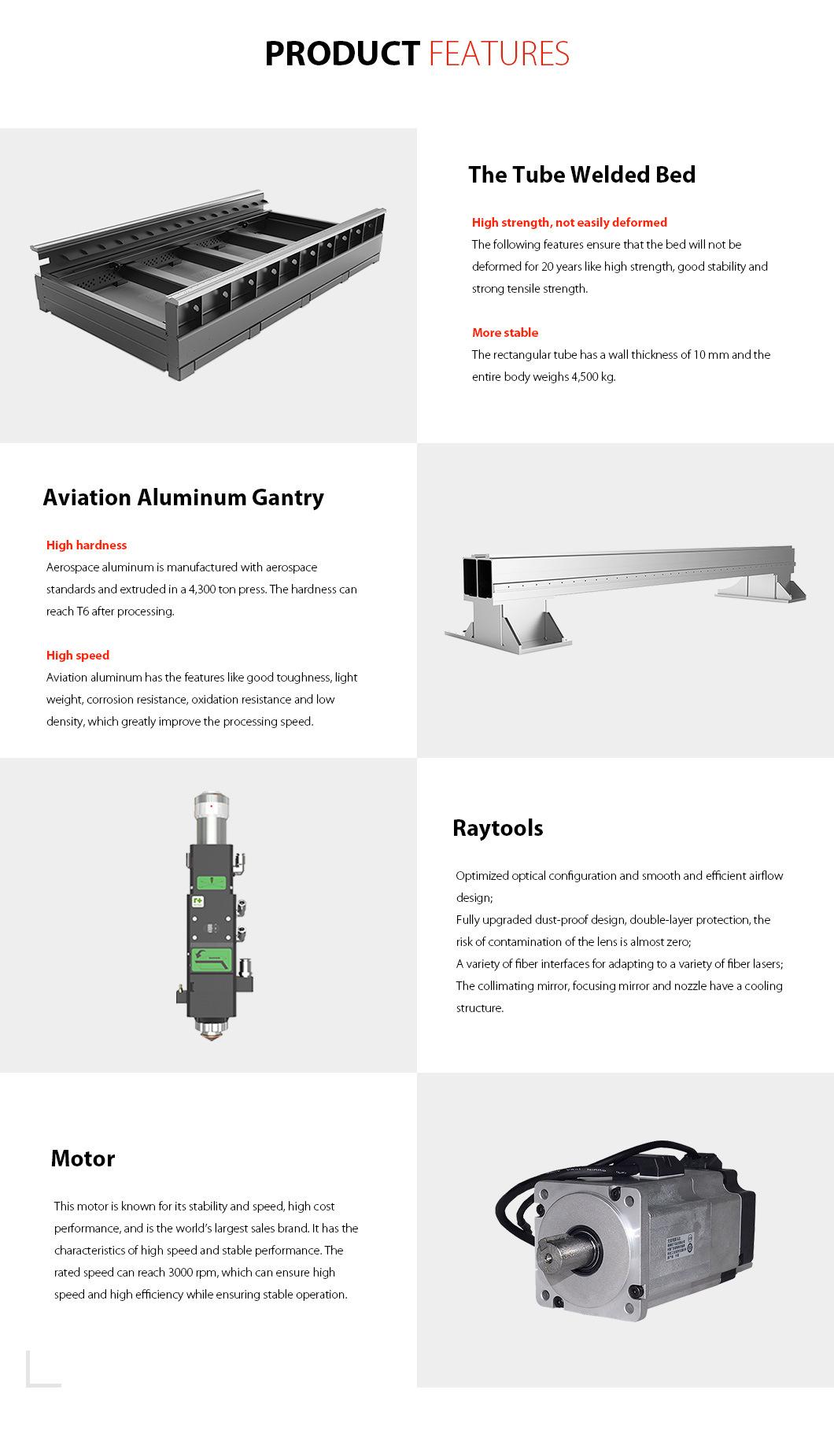

• Cast Iron Bed：Gray Cast Iron
• Cast Aluminum Beam：Higher Machining Accuracy
• Component：Fiber Laser, Stepper Motor, Servo Motor, Bed, Lase
• Affect Facor：The Shape of The Laser Beam, The Width of The Slit
• Cutting Shape：1500*3000mm(Optional)
• Rpostion Accuracy：0.02mm
• Transport Package：3 Layers
• Specification：more than 4500kg
• Trademark：DXTECH
• Origin：Jinan, Shandong Province, China
• HS Code：8461500090
• Production Capacity：100 Sets,Month

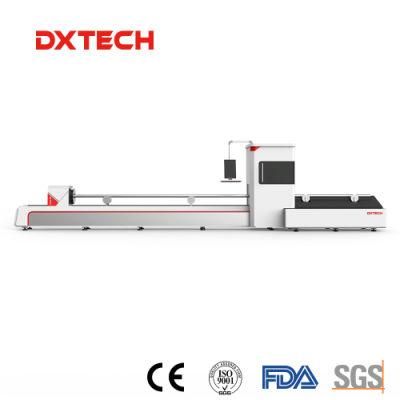

1. It is professionally design for the tube and pipe.
2. The laser output power can be adjusted from 500W to 4000W.
3. It is easy to operate, which can improves cutting quantity and cutting efficiency.
4. Widely used in sports equipment, various types of pipe, water pipes, oil pipelines and other industries,

Features
A.High cutting precision. Positioning accuracy of the metal laser cutting machine can reach ±0.05 mm. And the repeat positioning accuracy can reach ±0.03 mm.
B.Narrow slit. The laser beam is focused into a very small point to achieve a high power density at the focal point. The slit width is generally 0.10-0.20 mm.
C.The cutting surface is smooth. The cutting surface has no burrs, and the surface roughness of the cut is generally within Ra6.5.
D.Fast speed. The metal laser cutting machine speed can be up to 10 m/min. And its maximum positioning speed up to 30 m/min.
E.No damage to the work. The laser cutting head will not contact the surface of the material to ensure that the work piece is not scratched.
F.Save materials. The fiber laser cutter use computer programming. And it can realize to maximize material utilization. G.Safety and environmental protection. The cutting processing has less waste, clean, safe and pollution-free.
H.Compared with the traditional laser machine, it has the advantages of no adjustment, no maintenance, high stability, etc., which reduces the cost of accessories and maintenance time.

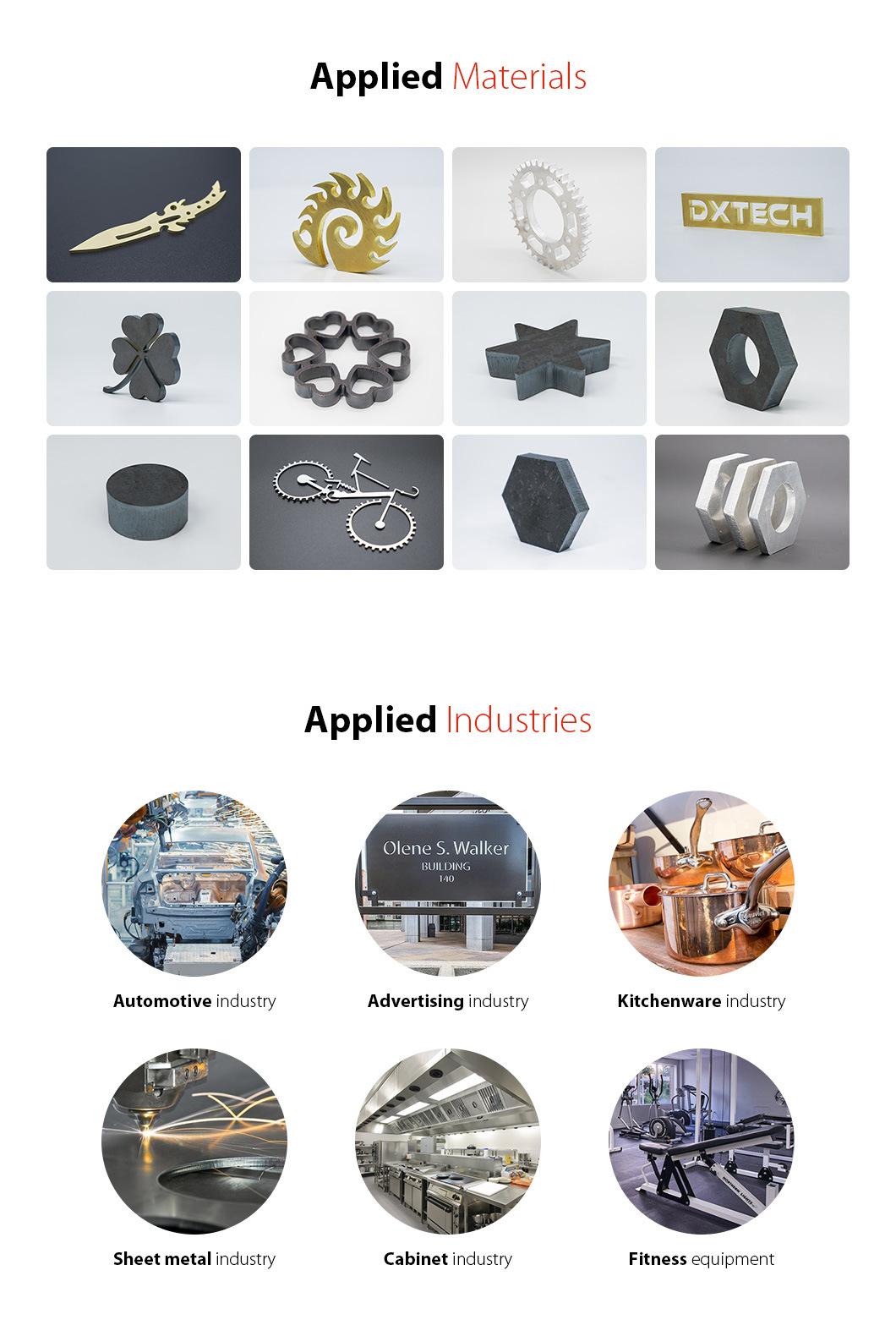

I.Abundant types of processing materials. It can process carbon steel, stainless steel, aluminum, aluminum alloy, copper, etc. In addition, it can process materials with high hardness, high brittleness and high melting point.
J.High level of automation. The laser cutter adopts fully enclosed processing. I t has the features of no pollution, low noise. All these can greatly improve the task of the operator.

Technical parameter:


Model	DX-1530F
Working Area	1500*3000mm(optional)
Laser Output Power	1000W/2000W/3000W/4000w( optional )
X/Y-axis positioning accuracy	±0.03mm
X/Y-axis repositioning accuracy	±0.02mm
Max Cutting Speed	25m/min
Maximum acceleration	1.5G
Servo motor	Japan Yaskawa / Japan Fuji
Electrical components	Schneider
Reducer	Japan SHIMPO

Cutting materials and thickness:


Carbon steel	0.4-6mm	0.4-10mm	0.4-12mm	0.4-14mm	0.4-16mm	0.4-20mm
Stainless steel	0.4-3mm	0.4-4mm	0.4-5mm	0.4-6mm	0.4-8mm	0.4-10mm
Aluminum	0.4-2mm	0.4-3mm	0.4-3mm	0.4-4mm	0.4-6mm	0.4-8mm
Brass			0.4-3mm	0.4-3mm	0.4-3mm	0.4-8mm
Laser power	500w	750w	1000w	1500w	2000w	3000w

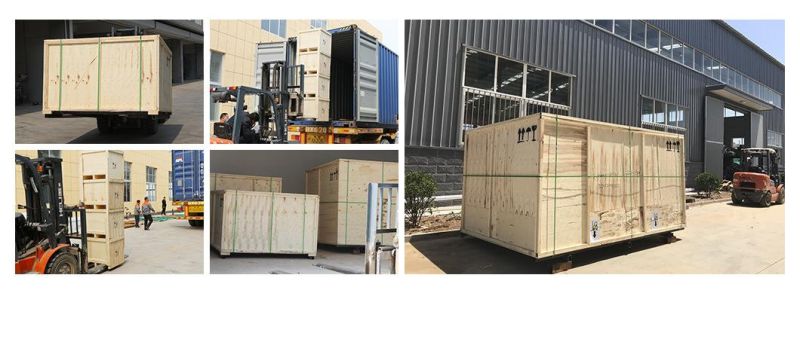

Packing & Delivery

Packaging Improving:
Three layers--- -The innermost layer is EPE pearl cotton film package;
-The middle layer is wrapping up with environmental protection material ;
-And the outermost layer is winding up with PE stretch film.
They're very environmentally friendly. If you need a wooden box, we will make fumigation free wooden package outside the machine.

Almost all payments can be chosen.
