Basic Info.

Model NO. FM-800*2 Machine Weight 8T Certification CE, ISO9001:2008 Model FM-800*2 Machine Size L*W*H: 4.5m * 2.25m * 4.5m Transport Package Plastic Film for Container Shipment Specification 800mm roller Trademark Xiongqiu Plastic Machinery Co., Ltd. Origin Foshan, Guangdong Province HS Code 8477300000

Product Description

It is used to blow various plastic film of low density polyethylene(LDPE), high density polyethylene(HDPE) and linear low density polyethylene(LLDPE), etc.. Widely used in packing food stuff, garment and textile daily product, industrial products and agricultural field use.

model	suitable material	film width	thickness	screw diameter	L/D ratio	die diameter
FM-800*2	LDPE,LLDPE,HDPE,MLLDPE,EVA,EAA etc.	100-700mm	0.01-0.16mm	Φ75mm	30:1	Φ180mm*2

main power	max output	die structure	winder way
30kw	110kg/h	spiral mandrel die chrome plated surface 40Cr	torque motor center winder

optional equipment

quto-loader device, film surface treater, air compressor, fast change net, auto rewinder, rotary die head, double wind air ring

pictures for reference:

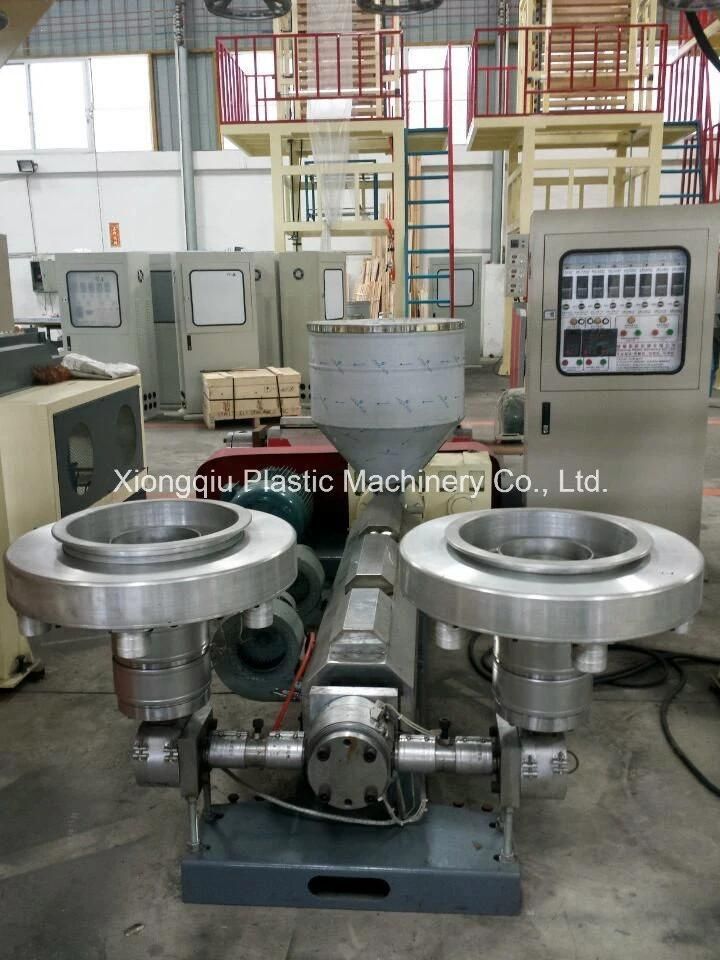

single extruder and double die head:

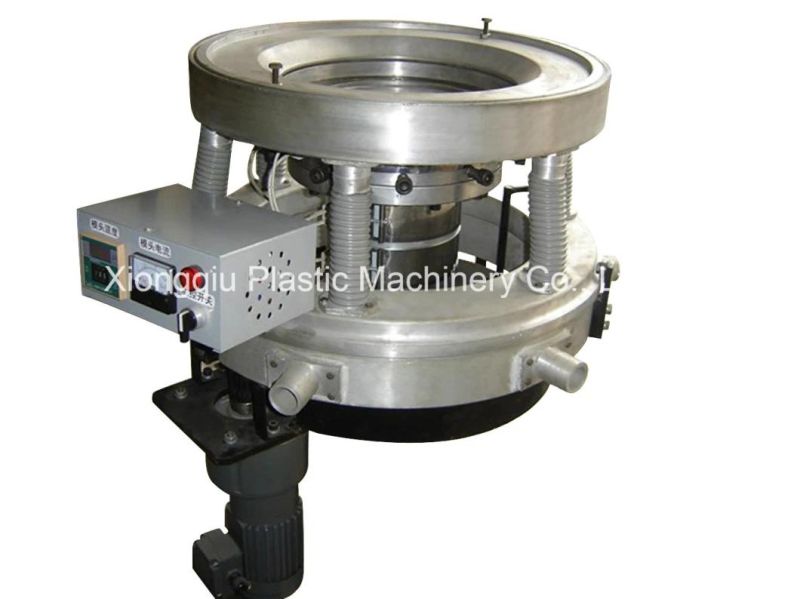

rotary die head:

double wind air ring:
