• Model NO.：TSZQ-40
• Material：304 Stainless Steel or Made to Order
• Power：5kw
• Voltage：380V,50Hz
• Usage：Food Factory
• Feature：Easy Operation
• Item：Frying Machine
• Products：Chips, Fish
• Color：Silver
• Overall Size：4000**1680*1835mm
• Transport Package：According to Customer Requirement
• Specification：Customized
• Trademark：TIANSHUN
• Origin：China
• HS Code：8438600000
• Production Capacity：800pieces,Year

Basic Info.

Model NO. TSZQ-40 Material 304 Stainless Steel or Made to Order Power 5kw Voltage 380V/50Hz Usage Food Factory Feature Easy Operation Item Frying Machine Products Chips, Fish Color Silver Overall Size 4000**1680*1835mm Transport Package According to Customer Requirement Specification Customized Trademark TIANSHUN Origin China HS Code 8438600000 Production Capacity 800pieces/Year

Product Description

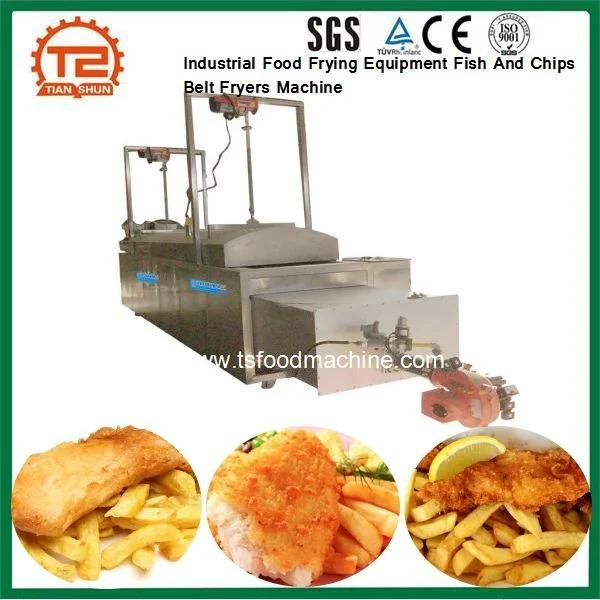

1.- Industrial Food Frying Equipment Fish And Chips Belt Fryers Machine

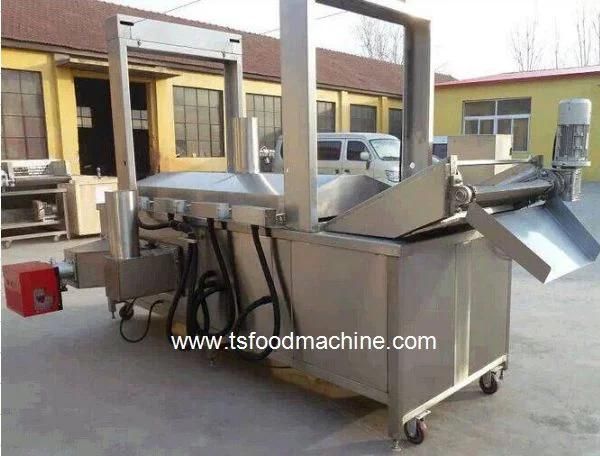

Gas Heating Belt Fryers Machine or named Gas Heated Continuous Fryer, it is made of food grade stainless steel, consists of the following systems:
Lifting system,
Conveying system,
Gas heating system,
Blowdown system,
Oil circulation system,
Smoke exhaust system,
Eelectric control system.

Advantages:
The speed of mesh belt conveyor can be adjusted by frequency speed control system based on the shape, thickness and volume of french fries/potato chips/snack foods, and frying time as well.

Automatic frying type can save labor and reduce production costs.

High safety, convenient for workers.

Automatic cooking fume system, to ensure a good working environment in the workshop.

Constant temperature continuous production to ensure the uniform explosion of chicken, meanwhile, block the acid value of oil to increase.



2.-Applications of Fish And Chips Belt Fryers Machine

Mainly for frying potato chips, french fries, fish, banana chips, donuts, and so on.



3.-Specifications of Fish And Chips Belt Fryers Machine


Model	TSZQ-40
Heating Method	Gas heating
Power	3.5KW
Temperature	0-300ºC
Overall Dimensions	4000**1680*1835mm
Oil Capacity	1200L
Width of Belt Conveyor	400mm

4.-Packaging and Delivery

Packaging	With Wrapping film and in wooden case, or according to the customer needs.
Delivery Time	10-15 Working days.
Shipping Type	By sea, railway, etc.

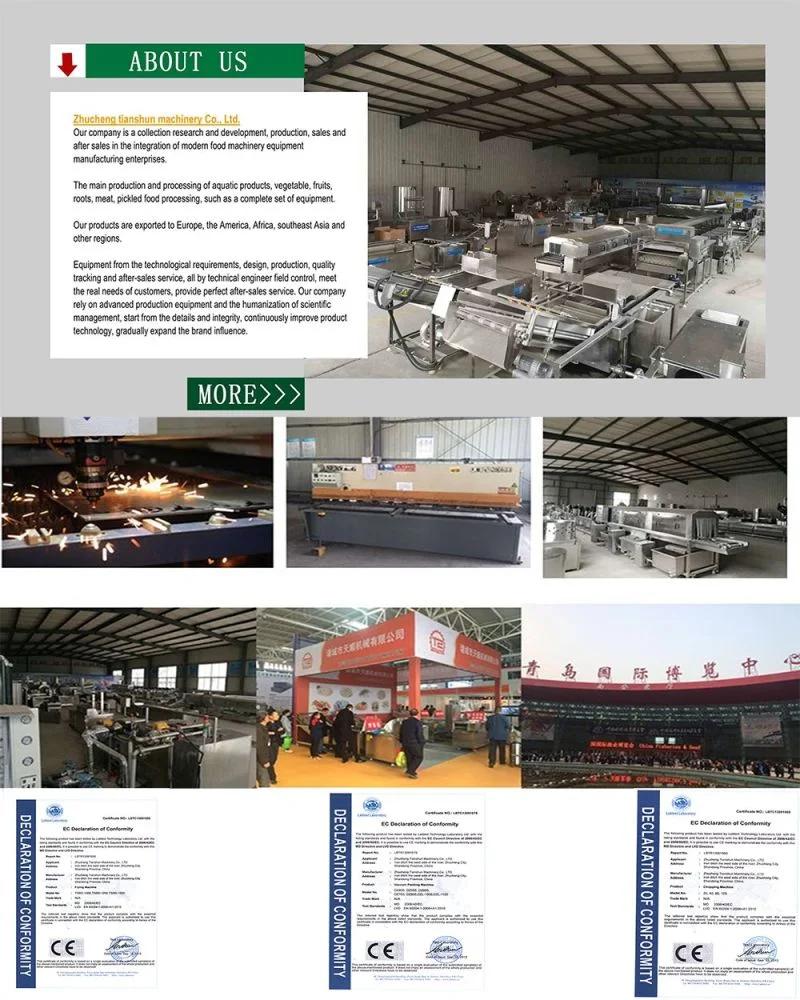

5. -Company Information

Zhucheng Tianshun Machinery Co.,Ltd. has grown into a large, specialized food machinery manufacturing enterprise which integrates R & D and manufacturing. Currently has more than 100 employees, the division of labor is professionalization and specific, there are technical department, after-sales service department, domestic marketing department, international business department, etc. The company has all kinds of welding equipment, machining equipment to meet the needs of different customers.

Main products: Food machinery and complete production lines, including:

Vegetables&fruits cutting machines,
Peeling&washing machines,
Frying equipment,
Air drying machinery,
Blanching&cooking machine,
Food flavoring machine,
Food coating machine,
Vacuum packing machine.

All of them can be designed semi-automatic and full automatic, and widely used for processing varieties of vegetable, fruits, fish, seafood, etc. Some of them have pass the CE certificate. All of them could be customized, and we also provide and design individual machines for customers.
