Basic Info.

Model NO. NO. 220318043 Bit Type Diamond Bit Drilling Way Rotary Type Crawler Transport Package Roro Ship, Cargo Bulk Ship Specification 84000kg Trademark Imachine Origin China HS Code 8705909100

Product Description

All parts and whole machine is in good condition.

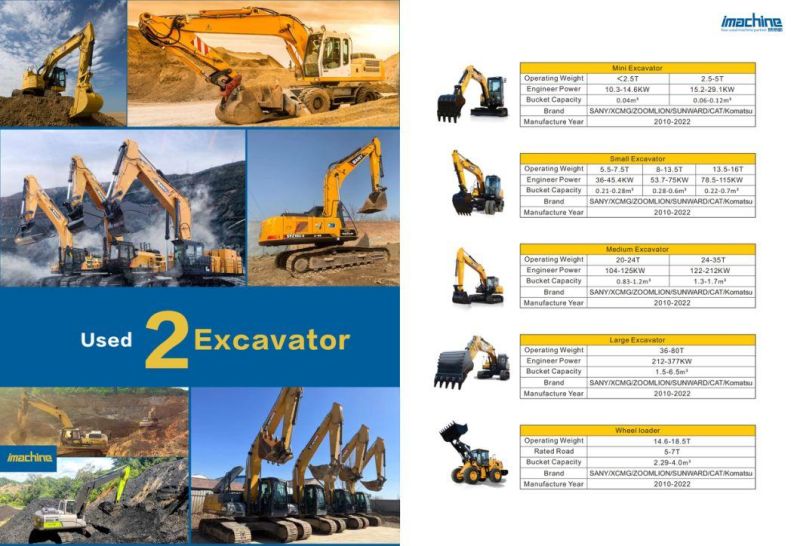

Besides, we could provide all model second hand excavator and all in good condition. If you want to import good quality second hand excavator, I am sure we are your best choice!
Welcome to visit our company and have a try of our machine

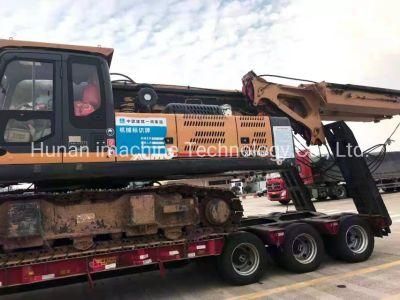

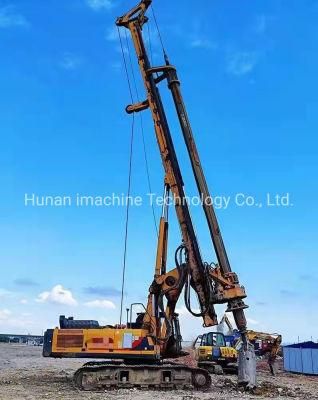

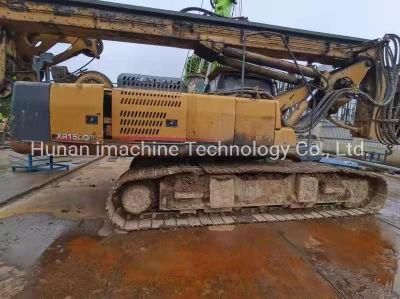

The selling points of XCMG240 as below:
1. One machine has multiple functions, which can realize quick switching of functions such as cylinder pressurization, winch pressurization, pipe rolling machine, long screw, dual power head, etc., to meet the needs of more different engineering constructions;
2. Equipped with electronically controlled turbocharged engine, lower fuel consumption and convenient and fast service;
3. The working performance of the power head and main winch is improved by 20%, and the work efficiency is higher;
4. The power head can be equipped with a torque multiplier (optional), the casing driving torque can reach 360kN m, and the ability to lower the casing is stronger;
5. Both main and auxiliary winches adopt single-row rope technology, the life of steel wire rope is 2~4 times longer than that of multi-layer rope, and the use cost is lower;
6. The double boom large parallelogram luffing mechanism is adopted, the support angle is large, the support range is increased by 16%, and the operation is more stable;
7. The hydraulic main system adopts negative flow control technology, which has fast response and good control performance;
8. The high-power temperature-controlled independent hydraulic oil cooler is suitable for construction in high temperature areas, and the fan speed can be adjusted with temperature changes to achieve energy saving;
9. The intelligent control system realizes the functions of automatic adjustment and display of the verticality of the drill mast, automatic rotation, automatic soil rejection, automatic lifting and pouring of the long spiral method, and pile type display, etc. The bus panel design is adopted to prevent misoperation;
10. The chassis can be equipped with transport outriggers (optional), which can be operated by remote control, making the transportation and transition easier and safer.



Performance parameters/Standard

Total Weight,kg	84000
Made Year	2019
Engine power,kw	270
Maximum Drilling Depth,m	70
Output torque,kN	201-300
Rated power,kw/rpm	270
Rated Working Pressure,bars
