Basic Info.

Customized Customized Condition New Extrusion Main Motor 110kw Extrusion Production Width 1000-1800mm Extrusion Capacity 400kg Extrusion Production Thickness 1.5-6mm Transport Package Wooden Case with Stretched PE Film Specification 12t Trademark Leader Machinery Origin Qingdao HS Code 84772090 Production Capacity 10 Sets Per Month

Product Description

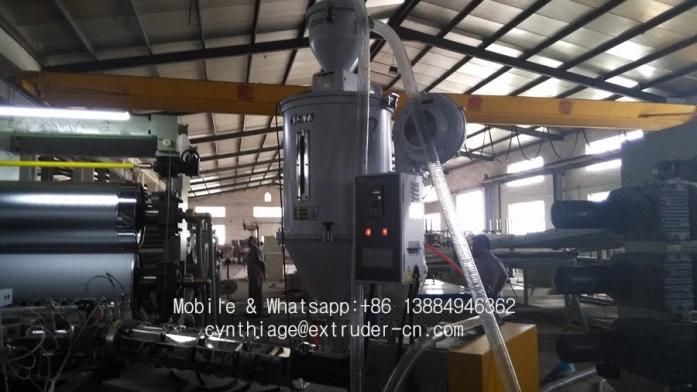

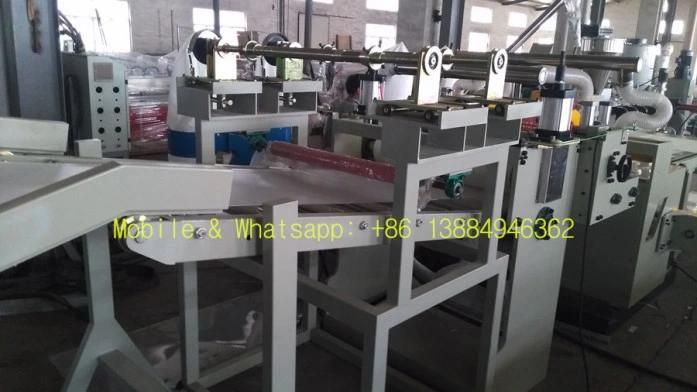

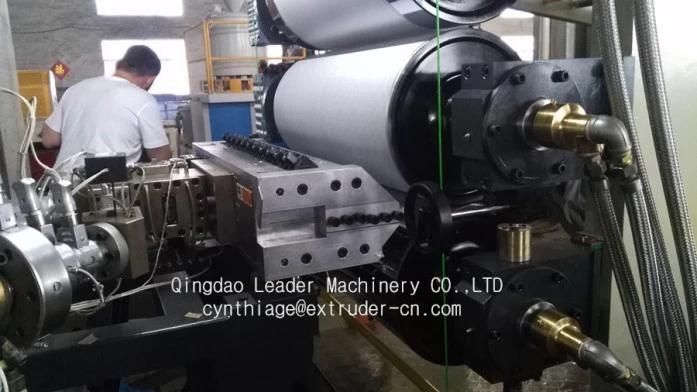

GPPS Frosted Solid Panel Extrusion Line/ GPPS Diffusion Sheet Extrusion Machinery

SPECIFICATION OF GPPS Frosted Solid Panel Extrusion Line/ GPPS Diffusion Sheet Extrusion Machinery

1. Thickness: 0.8mm --4mm
   2) Maximum width: 2,100mm
   3) Length: any dimension
   4) Specific gravity: 1050-1200kg/cbm
   5) Colors: clear, blue, green, opal, brown,bronze,etc.

Diffusion panel/frosted solid sheet is applicable to LED lighting lamps. such as down lights, grille, high-grade aluminum lamps. Diffusion plate suitable for side light LED lighting, like flat panel lights, advertising light boxes, professional film viewer, usually used with light guide panel.

Diffusion panel/frosted solid plate is light diffusion layer of the substrate such as PC/PMMA/PS, met with the refractive index difference of medium (proliferation of particles), multi-angle, multi-directional refraction, reflection and scattering phenomena in order to light diffusion effect, provides a uniform surface light source to display lighting components.

PS light diffusion sheet technical features:The sheet is lighter than PC, PMMA and so on, greatly reducing the transportation costs. Transmittance is above 75%, and to be large-scale used for its cheaper but relative in performance with the PC, PMMA and so on.
Polycarbonate solid sheet technical features:
1) Impact strength: 850J/m.The impact resistance of polycarbonate solid sheet is about 200 times of common glass,20 times of acrylic sheets.
2) Light weight:About 1/2 times of glass
3) Good light transmission(clear color)80%--90% for different thickness
4) Wide service temperature range -40ºCto 120ºC,good weather resistance and UV protection
5) Specific gravity: 1.2 g/cm
6) Coefficient of thermal expansion: 0.065 mm/mºC
7) Tensile strength: >60N/mm2
8) Flexural strength: 100N/mm2
9) Modulus of elasticity: 2,400mPa
10) Tensile street at break: >65mPa
11) Elongation at break: >100%
12) Specific heat: 1.16J/kgk
13) Heat deflection temperature: 140ºC
14) Heat conductivity: 2.3-3.9 W/m2ºC
15) Soundproof index:4mmthickness--27dB, 5mm--28dB, 6mm--29dB, 8mm--31dB, 10mm-32dB 12mm--34dB
Applications: LED lighting,Bathroom,upholster,indoor portion,folding screen, ceiling


Parameters of GPPS Frosted Solid Panel Extrusion Line/ GPPS Diffusion Sheet Extrusion Machinery

Model	LM100-1000	LM120-1500	LM120-2500
Material	PC/PMMA/GPPS	PC/PMMA/GPPS	PC/PMMA/GPPS
Sheet width (mm)	650-1000	1300	2100
Sheet thickness (mm)	1.5-3	1.5-5	2-12
Extruder model	100/38 45/30	120/38 45/30	150/38 90/35
Max capacity(kg/h)	280	500	700
