Basic parametersSuitable materialPE.PP,PVC,PS,PETG,so onMax volume5L (Single head)Output capacity220~240 pcs/hSize3.8×2.3×2.5(M)Weight4.8TsystemSpecificationParametersNotePlasticizion system SummarizeHigh efficient low power consumption plasticizion system,transducer control,self-protect function when started at low temperatureReducerMaterial of Gear box body: HT200
Material of gear: ZG35CrMo
Material of bearing: 42CrMo
Heat treatment of Gear: QuenchingBrand: GuoTai
(The best Gearbox supplier in China)Screw75mm,L/D ratio 25/1,
Material: 38CrMoALA
Nitriding heat-treatment
Cooling by cooling FanCooling system availablePlasticization100Kg/HHDPEHeating Zone3-4 Aluminum HeaterAutomatic heatingHeating power4KW/H Extrusion MotorThree phase asynchronous motor (380V,50HZ) 30HPBrand: SiemensCooling Fan3-4zoneAutomatic cooling

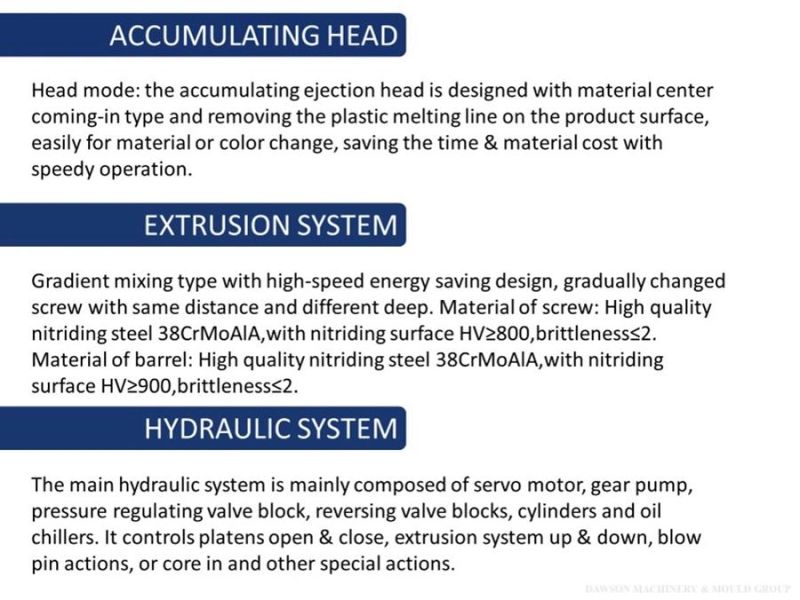

Extrusion system SummarizeHigh-grade alloy steel, center feeding
Avaible to change to double die head or thriple die headsDie head numberSingle head for 5L / double head for 1LCenter distance of die heads130mm or 160mm for Double die head
75mm or 80mm for Four die headDie headMaterial of the die Head:38CrMoAlA+40Cr+45# Steel
Die head corn mirror degreeWe provide complete set die for each sample freeHeating3-4 Stainless steel heating cycle
With Plug type heater
High quality thermocouple for temperature checkingPlug type heater more easy and convinient for changing die headsHeating power3~5KW Clamping systemAutomatic Lubricant system for clamping systemClamping force80KNTemplate distance150~560mmMax mould size400X450mmPlaten moving stroke520mmLubricationEquiped with automatic lubrication system

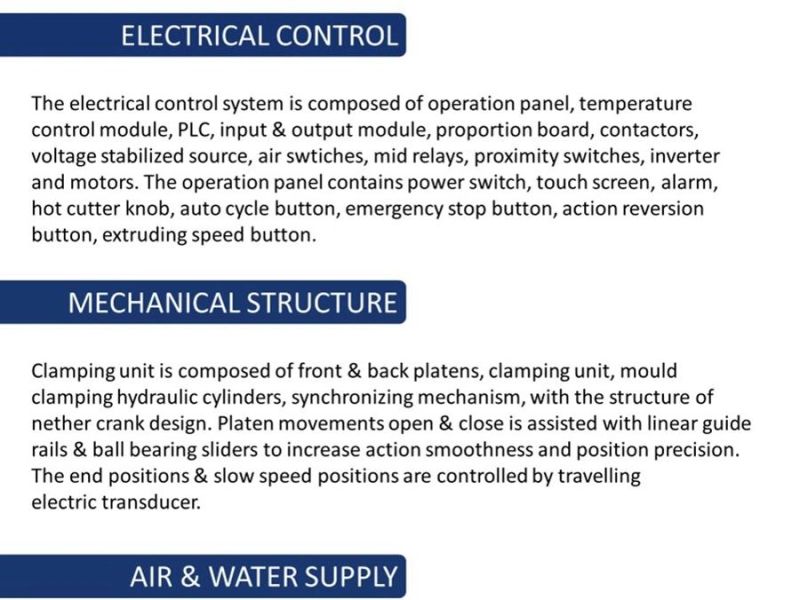

Electric systemSummarizePLC+ touch screen(man-machine interface)standard extrusion blow molding machine controlling system(AUTO monitoring, fault-alarm, auto counting ,auxiliary function available)SIEMENS or MITSUBISHI PLC
System + TOUCH SCREENOperate interfaceTouch screen, automatic self-diagnose alarm system  Temperature controlAutomatic temperature control moduleSIEMENS OR MITSUBISHI MODULEElectrical partsSchneider electricals & Omron relay Electric protectionAmpere overload, electric short circuit self-protection function Parison controllerJAPAN MOOG 100 points parison controller + Moog servo Valve + stainless oil tank + oil pipes & fittings
(Optional : 10500 USD/ complete set if needed ) InvertorDELTA (TAIWAN) 380V50HZ
One for main screw + another for lever line screw Hydraulic systemSummarizeMultiple function hydraulic integrated block Proportional control, high efficient Oil pump motorThree phase asynchronous motor (380V,50HZ) 7.5kw Oil pumpImported double pump ValvesJAPAN YUKEN Hydraulic valves YUKEN Hydrulic valve
Precision control
More safe and easy to operate and maintenance
Also YUKEN series avoid any leakage problem both inner or outter, which makes the all operation reliable and safe.O-sealings
High quality O-sealingsWe provide spare parts for each sealingsOil pipesDouble layer overpressure resistant System pressureLP 100 bar / HP 130 bar
Threads of hydraulic block use of screw joint GE(ISO 1179) Cooling systemSeparate water cooling cycle, oil cooler cooling system
High quality Oil cooler Pneumatic systemSummarizeTaiwan AIRTAC pneumatic system Air pressure0.8Mpa Air displacement0.8M3/min Electromagnetic valveAIRTAC Cooling systemSummarizeSeparate cooling system of mould, barrel and oil system Cooling mediumWater Water flow80L/min Water pressure0.3-0.6MPaLSetSecondMTonKNmmmmmmmmMmKWKWKWKWKWKWKWmmL/DKg/hourZoneKWKW KWContinuous extrusion head805030
