• Model NO.：Vacuum Brazed High-speed drill bit
• Life Span：Long Life
• Transport Package：Color Box, White Box and Brown Box
• Specification：Dia 18mm-120mm
• Trademark：BSP TOOLS
• Origin：China
• HS Code：820719100
• Production Capacity：50000PCS,Year

Basic Info.

Model NO. Vacuum Brazed High-speed drill bit Life Span Long Life Transport Package Color Box, White Box and Brown Box Specification Dia 18mm-120mm Trademark BSP TOOLS Origin China HS Code 820719100 Production Capacity 50000PCS/Year

Product Description

BSP tools manufacture supply Vacuum Brazed High-speed drill bit without wax cooling with 1 year warranty. We devoted ourselves to diamond tools many years,covering most of Europe and Australia market. We are expecting become your long term partner in china.

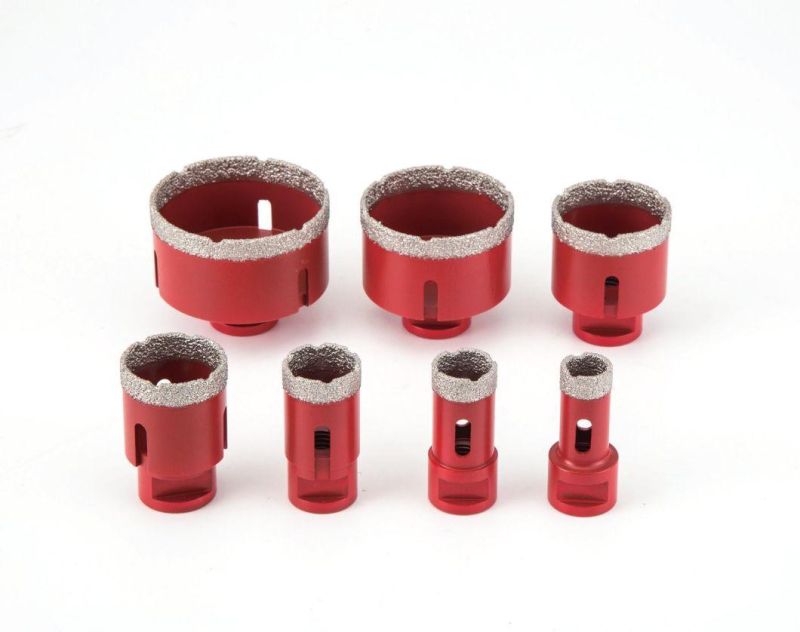

Vacuum Brazed High-speed drill bit without wax cooling

1.Product Introduction of the Vacuum Brazed High-speed drill bit without wax cooling
BSP Vacuum Brazed Drill Bits are the best for Porcelain Core Bit, Ceramic Core Bit, Marble Core Bit, and Granite Core Bits all in one.It can be used wet or dry. Also, one of the best vacuum brazed marble core bits for similar reasons. Virtually no chipping, minimal blowout on the bottom, fast drilling, and great life.
The Vacuum Brazed Diamond Core Drill Bit drills cleanly dry with zero chipping.The Vacuum Brazed Core Drill Bits are made to run at high r.p.m in all types of ceramic, porcelain, marble, granite.The vacuum brazing is on both the inside and outside of the barrel.This special Vacuum Brazed diamond technology allows an uncomplicated, hands-free and clean drilling on angle grinders. The Vacuum diamond coating allows fast drilling with extremely clean, chip free holes.The Vacuum Brazed Core Bits are designed to drill hard and brittle materials such as ceramics, porcelain, marble, granite, stone materials.

2.Product Parameter (Specification) of the Vacuum Brazed High-speed drill bit without wax cooling



Dia.(mm)	Segment Height	Bit Height	Connection
18	10/15	64/76	M14,5/8-11
20	10/15	63/76	M14,5/8-11
25	10/15	63/76	M14,5/8-11
30	10/15	63/76	M14,5/8-11
35	10/15	63/76	M14,5/8-11
40	10/15	63/76	M14,5/8-11
45	10/15	63/76	M14,5/8-11
50	10/15	63/76	M14,5/8-11
55	10/15	63/76	M14,5/8-11
60	10/15	63/76	M14,5/8-11
65	10/15	63/76	M14,5/8-11
70	10/15	63/76	M14,5/8-11
75	10/15	63/76	M14,5/8-11
80	10/15	63/76	M14,5/8-11
85	10/15	76	M14,5/8-11
90	10/15	76	M14,5/8-11
100	10/15	76	M14,5/8-11
110	10/15	90	M14,5/8-11
120	10/15	90	M14,5/8-11

3.Product Feature And Application of the Vacuum Brazed High-speed drill bit without wax cooling
Vacuum Brazed diamond bits: for stoneware, porcelain stoneware, granite, the use of dry-cut .Thanks to the "vacuum brazing" technology with which we manufacture it:The bit life is longer.It manages to increase the retention of diamond grains, thus reducing both friction and temperature.Cutting is faster.Drilling very hard materials such as porcelain stoneware, or others such as marble or granite, is much simpler.In addition, by allowing dry cutting, it is very useful for wall drilling as it does not require water cooling.You get a perfect finish.

4.Product Details of the Vacuum Brazed High-speed drill bit without wax cooling
BSP tools manufacture provide Vacuum Brazed High-speed drill bit without wax cooling is mainly diameter from 18-120mm for construction market. The Segment height could be 10 or 15mm. The core bit thread is M14 or 5/8-11.BSP TOOLS Special length and segment shape are available which is according to the customer request .

5.Product Qualification of the Vacuum Brazed High-speed drill bit without wax cooling
Our Vacuum Brazed High-speed drill bit without wax cooling has ISO:9001 quality certificate

6.Deliver,Shipping And Serving of the Vacuum Brazed High-speed drill bit without wax cooling
The Vacuum Brazed High-speed drill bit without wax cooling samples can be sent within one week and bulk order can be finished within 20 days . Shipping by air or sea all is ok. We provide customer minimum 1 year warranty.

7.FAQ

Do you have MOQ?
OEM is 50pcs MOQ; ODM 100pcs MOQ.

What about the color of diamond core bit?
We have standard color covering red, orange, black, white blue and Grey. Other color are also available according to customer RAL code. But need minimum quantity 50pcs.

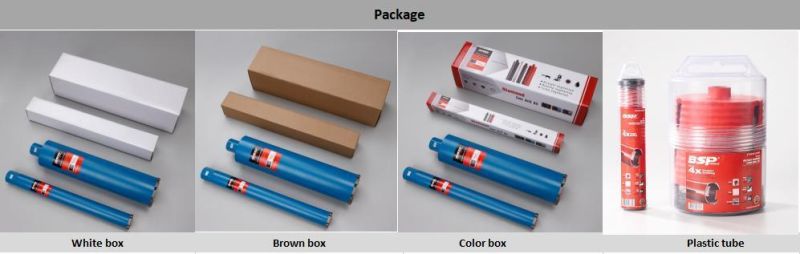

What is the package?
BSP TOOLS offer color box ,white box and brown box .

What information you need to provide the price?
Better tell us the power of your drilling motor/hand held drilling machine/angle grinder and RPM request.
