SpecificationsMaterial PE,PP, PVC, PAMax container capacityL5Number of dieSET1,2,3,4Output(dry cycle)Pc/hr1000Machine Dimension(LxWxH)M3.4x1.9x2.5Total weightT4.0Clamping UnitClamping forceKN68Platen opening strokemm150-500Platen sizemm338x380Max mould size(WxH)mm338x350Mould thicknessmm155-300PowerMax driveKW26Total powerKW32.5Fan power for screwKW0.25Air pressureMPA0.7Air consumptionM3/min0.6Average energy consumptionKW17Extruder unitScrew diametermm65Screw L/D ratioL/D24Melting capacityKg/hr70Number of heating zonezone3Extruder heating powerKW13.8Extruder driving powerKW15DieNumber of heating zonezone3Power of die heatingKW5.7Max die-pin diametermm135Center distance of double diemm160Center distance of tri-diemm110Center distance of tetra-diemm85

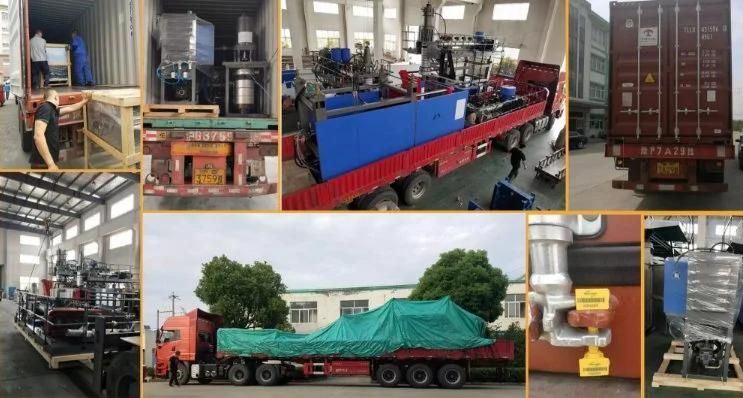

Delivery Time:
- No later than 40 days after receipt of the deposit

Training:
- We provide training service for two or three operating men for free (but the cost for trainer's board and lodging is not included).

Installation:
- The supplier will send one specialist to test run the machine until it is running in normal state.

Guarantee:
- Our guarantee is valid for a period of 12 months. If the malfunction caused of the machine's self quality, we will troubleshoot it for free.

Auxiliary Equipments:
- Auxiliary equipments for production line are available and optional, please kindly ask for quotation.

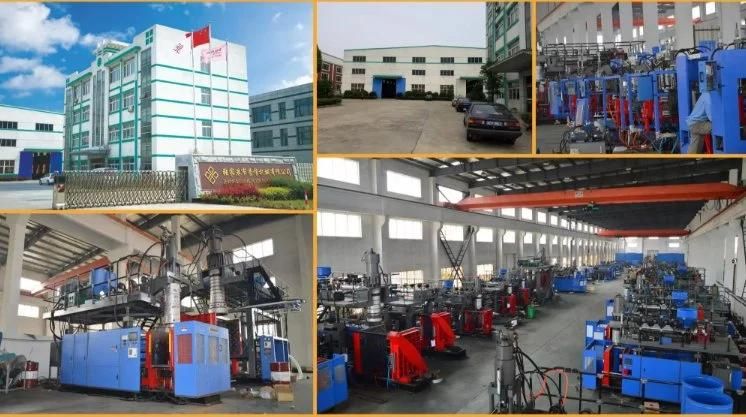

OUR FACTORY:
