• Model NO.：CM1390E
• Structure Type：Split Structure
• Laser Classification：Gaseous Laser
• Laser Technology：Laser Fusion Cutting
• Working Size：1300mm*900mm
• Laser Power：80W 100W 130W 150W
• Adjust Table：Electronic up Down 180mm
• Working Table：Blade Platform, Honeycomb
• Driver：Stepper Motor
• Engraving Speed：0-1000mm,S
• Max Cutting Speed：800mm,S
• Graphic Format：Ai, BMP, Dxf, Dxp, Plt
• Controller System：Ruida Rdworks
• Rotary Attachment：Optional
• Red-DOT Positioning：Optional
• Laser Class：Class 4
• Transport Package：Wooden Box
• Specification：1990 x 1440 x 1100 (mm)
• Trademark：REDSAIL
• Origin：China
• HS Code：8456110090
• Production Capacity：2000 Units ,Year

Basic Info.

Model NO. CM1390E Structure Type Split Structure Laser Classification Gaseous Laser Laser Technology Laser Fusion Cutting Working Size 1300mm*900mm Laser Power 80W 100W 130W 150W Adjust Table Electronic up Down 180mm Working Table Blade Platform/ Honeycomb Driver Stepper Motor Engraving Speed 0-1000mm/S Max Cutting Speed 800mm/S Graphic Format Ai, BMP, Dxf, Dxp, Plt Controller System Ruida Rdworks Rotary Attachment Optional Red-DOT Positioning Optional Laser Class Class 4 Transport Package Wooden Box Specification 1990 x 1440 x 1100 (mm) Trademark REDSAIL Origin China HS Code 8456110090 Production Capacity 2000 Units /Year

Product Description

REDSAIL Co2 Laser Cutting Machine 1300mm*900mm (28''x20'') With CE FDA

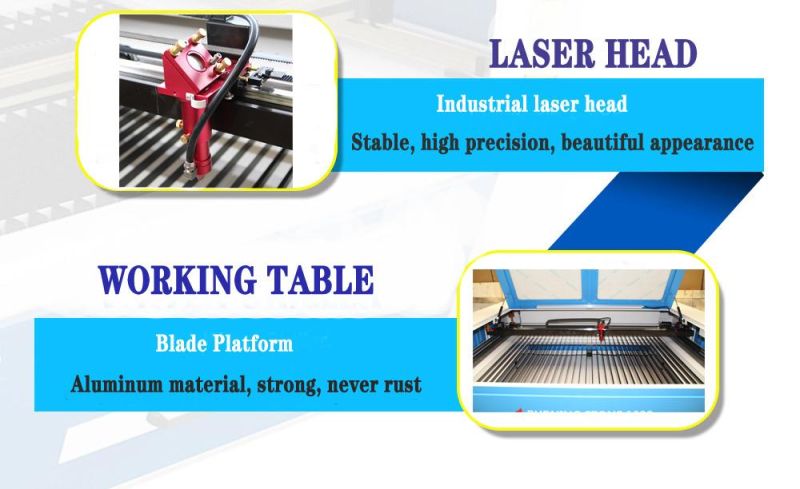

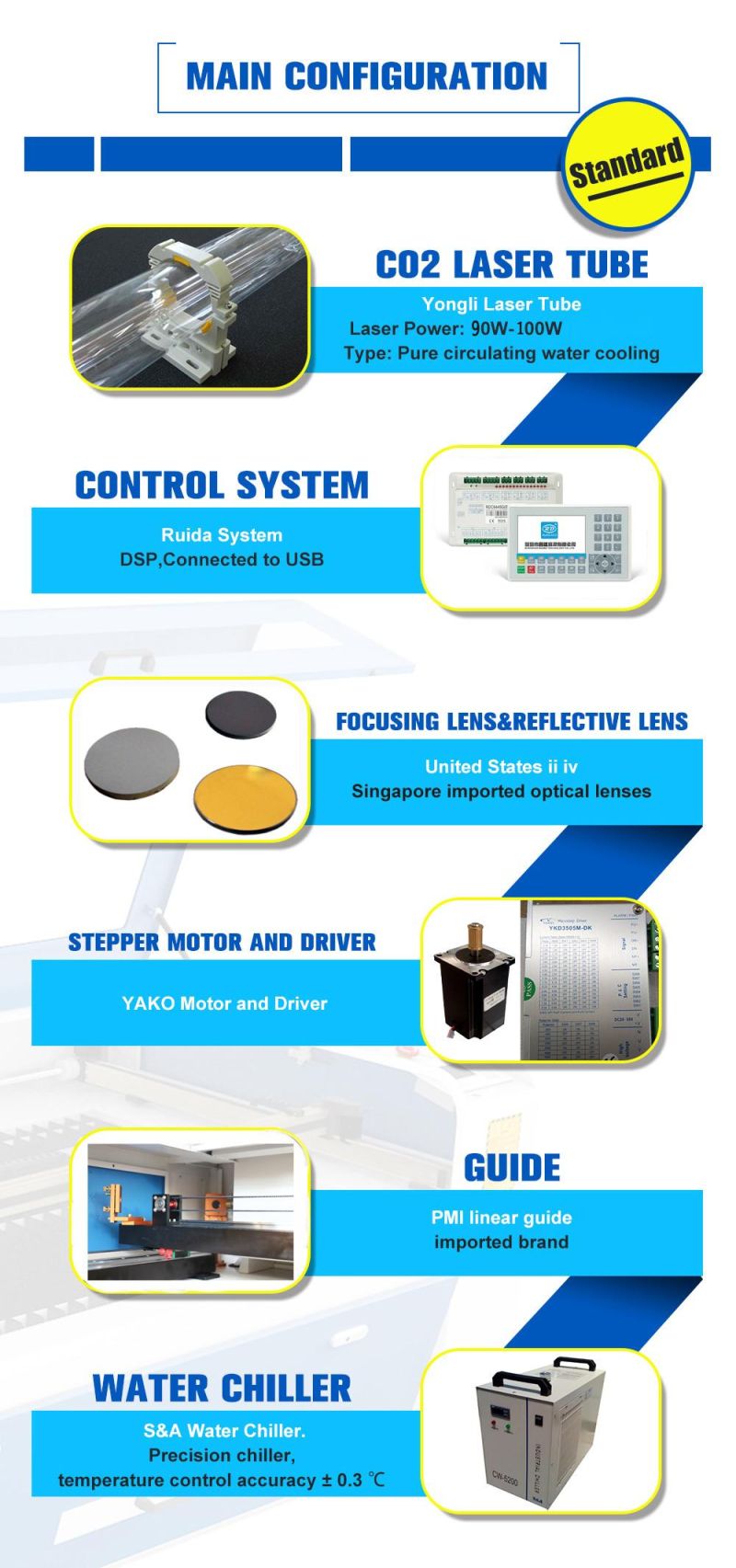

Upgraded configuration  Motorized Up/Down Table RUIDA controller(RDC5121 board) Dia 25mm mirrors, Dia 20mm lens (63.5mm) Customized laser head, beautiful and unique Screw type lifting

Model	CM1390E
Working Size	1300mm*900mm
Laser Power	80W/100W/130W/150W
Type of laser tube	Co2 Sealed glass tube
Controller system	RUIDA (RDworks software)
Cooling system	CW-3000 water chiller
Exhaust system	Air pump, Centrifugal fan
Transfer method	Linear Guides
Adjust table	200mm height, electric table
Working table	Blade platform(You can also ask for Honeycomb)
Mirror and lens	Φ=25mm MO mirror,φ=20mm,FL=63.5mm lens
Max cutting speed	1000mm/s
Adjust tube holder	Same as the RECI laser tube holder
Drive type	Stepper Motor
Location precision	± 0.1 mm
Resolution	2500 DPI
Image form	HPGL, BMP, DXF, GIF, JPG, JPEG, DST, AI
PC Interface	USB2.0 and USB Disk
Voltage	110V or 220-240V/ 50~60Hz
Package	Standard Wooden case for export, fumigation free
Machine size(mm)	1780X1325X1042mm
Packing size(mm)	1800*1370*040
NW(kgs)	270
GW(kgs)	330

Applicable Industry

 This machine is suitable to woodworking, textile cutting, industrial prototyping, industrial marking, signmaking,medical part marking, aerospace, architectural modeling, specialty advertising, plastics fabricating, flexo, point of purchase, rubber stamps, picture framing, gift manufacturing, bar coding,engraving, gasket cutting, puzzles, cabinetry, awards & recognition, personalized pens,door pulls,cut scroll patterns, games & toys, finger joints, inlays & overlays, fraternity paddles, music boxes,light switch plates, jewelry boxes, parts marking, router templates, desk sets, scrap booking,photo albums, jewelry, crafts, Italian charms.

Standard Accessories

• User Manual (CD)
• CW-3000 chiller
• Centrifugal fan
• Air Pump
• Communication cable
• 3 Reflect optics (installed)
• 1 Focus optics (installed)
• 1 Laser tube
• Other tools



Sample

FAQ

Q: Do I need two laser machines to engrave and cut separately? A: No, the laser machines we provide are capable of both engraving and cutting. One machine alone can fulfill the two purposes.  Q: Do the laser machines need to be connected to a laptop or desktop computer to work? A: Yes, either is ok. It supports Windows 10, Windows 2000, Windows XP, Win 7, and other operating systems Q: What kind of graphic format does it support?  A: JPG, PNG, BMP, PLT, DST, DXF, CDR, AI, DSB, GIF, MNG, TIF, TGA, PCX, JP2, JPC, PGX, RAS, PNM, SKA, RAW , etc. Q: How to distinguish laser tubes with different powers and applications?  A: 1. Laser tube length (relatively speaking, the longer, the bigger) 2. Laser tube diameter (relatively speaking, the thicker, the bigger) 3. The bigger a laser tube power is, the deeper the machine can cut, but its light spot is bigger. So, it is better to use a machine with a low-power laser tube to engrave, such as 40W, 50W or 60W.  Q: Is it better to increase blow to improve laser processing performance? A: For some thick materials, it works. But, when carving some other materials, you need to blow less.  Q: How long will it take to learn to operate a laser machine?  A: If you are able to use some basic graphic design software, it will only take a few hours to master the operation. You just need to do some simple tests on different processing materials to know how to set the correct speed and laser power.  Q: Is a laser machine in operation harmful to our bodies?  A: It is not harmful as long as the laser is not exposed directly to skin and eyes.
