50m Hydraulic Motor Driven Crawler Based Mining Drilling Rig
I. Hydraulic Mine Drilling Rig Product Description

WD-50T is a simple rig  suitable for borehole drilling in geo-construction and geo-technical exploration drilling in projects like civil building, construction of railway, hydropower, highway, bridge and dam etc. Typically, it is mainly used for:

• Soil sampling with auger drilling.
• Anchor drilling
• Micro piling.
• Geothermal drilling.
• Core drilling with conventional coring tools.
• Water well drilling by carbide and rotary drilling.

II. Hydraulic Mine Drilling Rig Main Features

This is especially usefully with hydraulic motor driven crawler chassis in the mountainous and mining pit area, suitable for almost all the terrains in mining pit and engineering working areas.

III. Hydraulic Mine Drilling RigTechnical Specification


Model No.	WD50M	WD50T (With Crawler Chassis)
Drill Pipe Diameter	42mm	42mm
Drilling Hole Diameter	75mm	75mm
Drilling Depth	50 m	50 m
Kelly Bar	Dia.=50mm / L=1m	Dia.=50mm / L=1m
Recommend Drill Pipe Length	0.75m	2m
Drilling Angle	90°	90°
Diesel Engine Power	5.7kW/2200rpm	5.7kW/2200rpm
Dimensions of Main Machine  (L x W x H)	1400x600x1600mm (Packaged)	2000x600x2000mm (Packaged)
Total Weight of Main Machine	300KG	800KG
The Heaviest Part of Machine	70KG	350KG
Spindle Rotary Speed	285, 570r/min	285, 570r/min
Spindle Stroke	1m	1m
Lifting Force	300KG	>300KG
Feeding Force	200KG	200KG

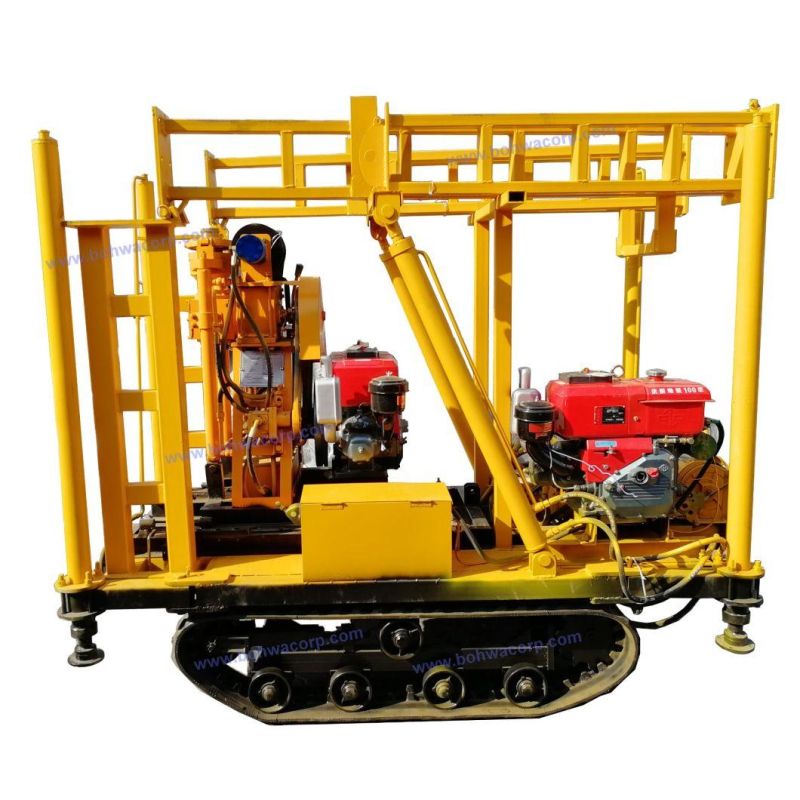

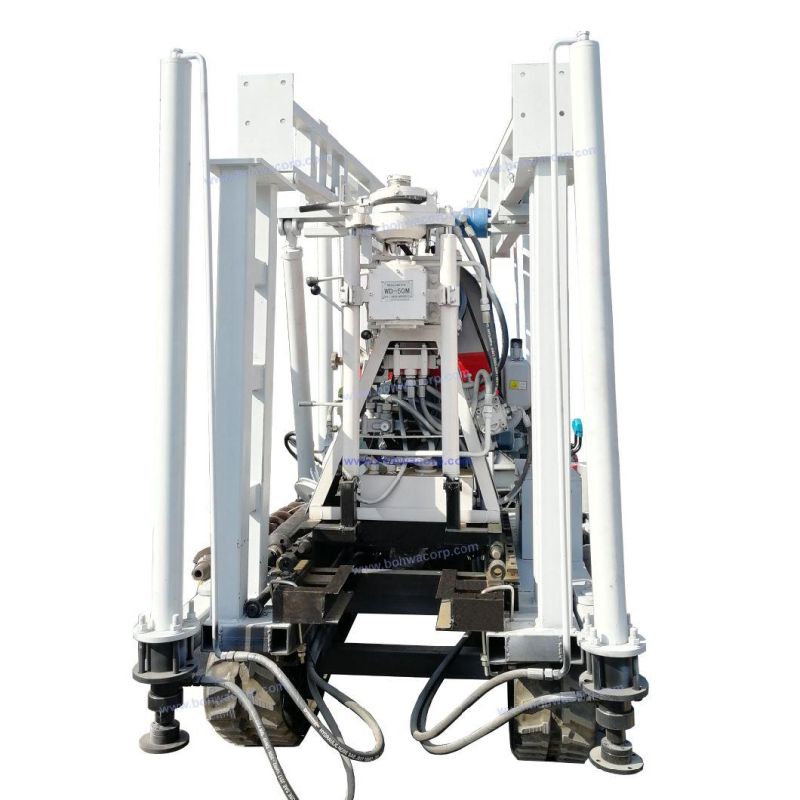

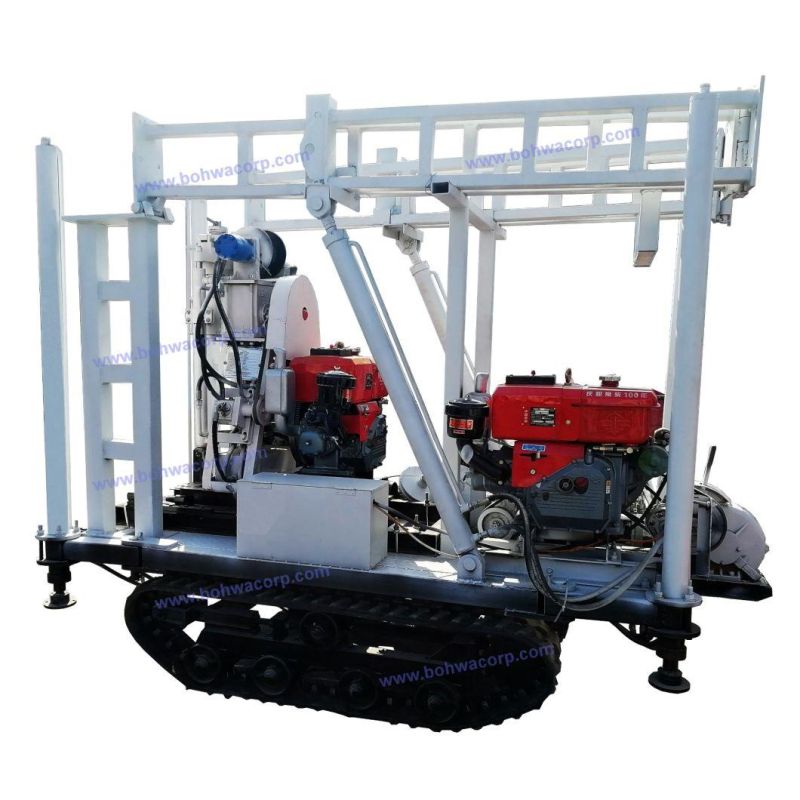

IV. Hydraulic Mine Drilling Rig Photos
