Features For Twin Head film blowing machine:


1) Suitable LDPE.HDPE.LLDPE and can be for blown film
2) To make shopping bags ,garbage bags,fedex bag etc.
3) Operation with remote monitoring interface makes the width changed easily,conveniently and simply.


Main Technical Parameters
Main Technical Variables:ModelSJ-65FM-600Screw Diameter65mmScrew Ratio1:28-30Screw Speed10-110r/minMax.Output55kg/hMax.Folding Width of Film550mmx2Single-sided Thickness of Film0.006-0.10mmPower of Main Motor22KwTotal Power33KwWeight of Machine2800kgOverall Dimensions4800x2200x3000

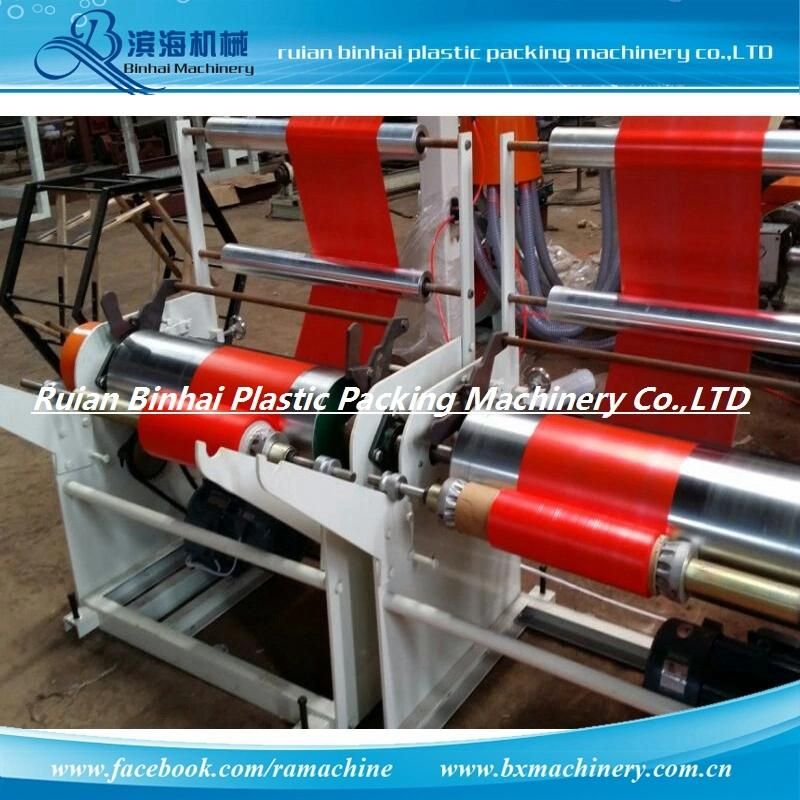

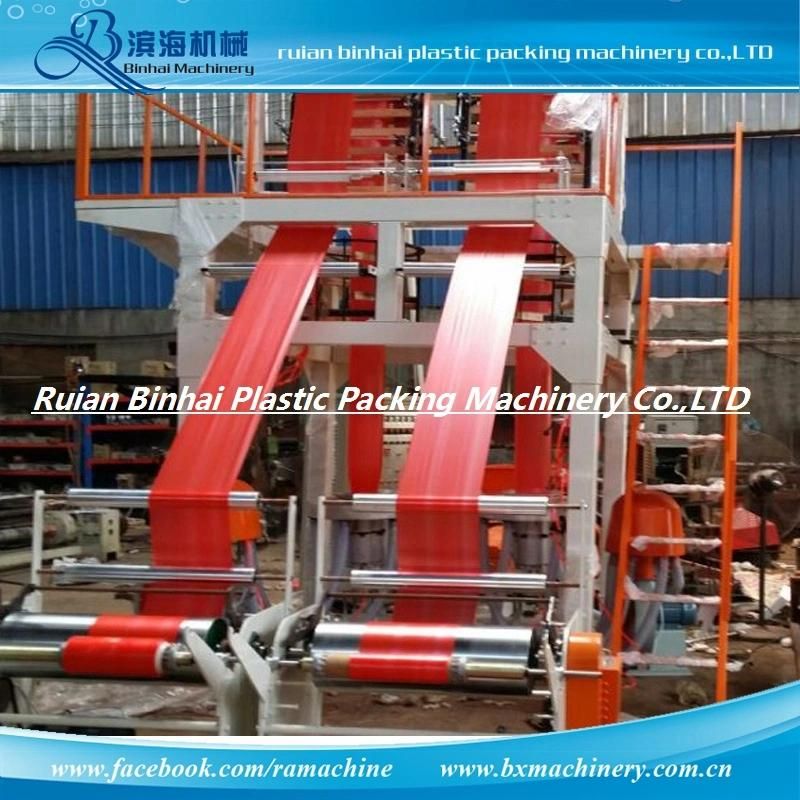

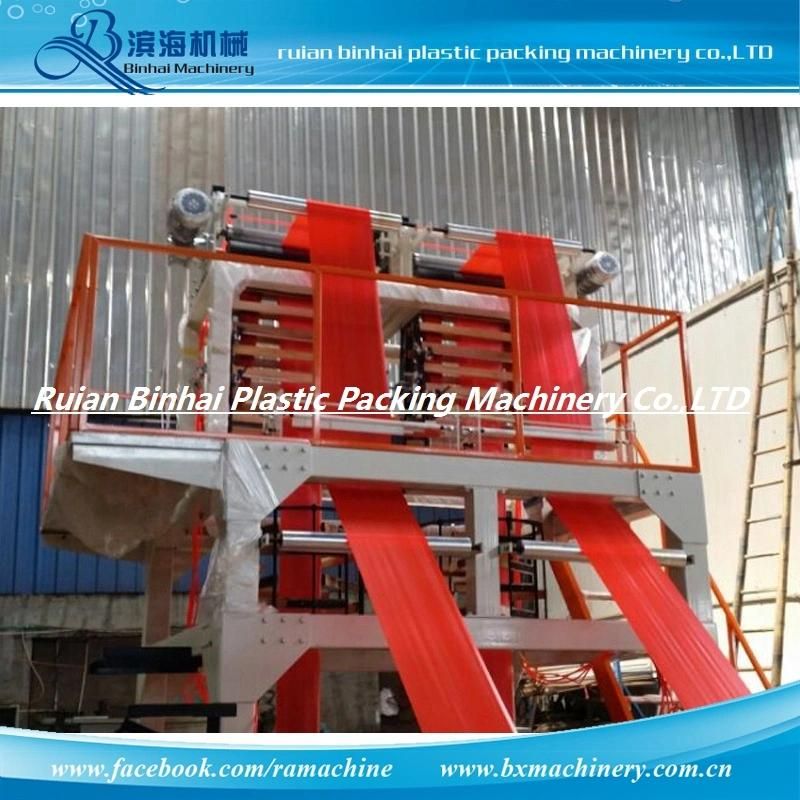

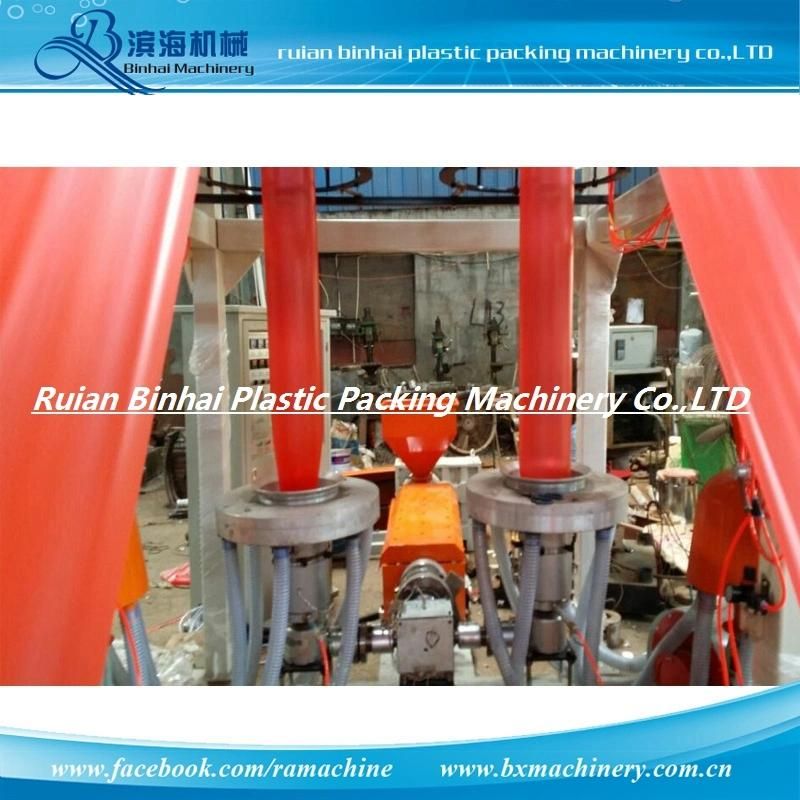

Pictures for Double Head One Screw PE  Film Blowing Machine :
---- Double Head One screw film machine for small size Bag


Optional :
Rotary Head Die .

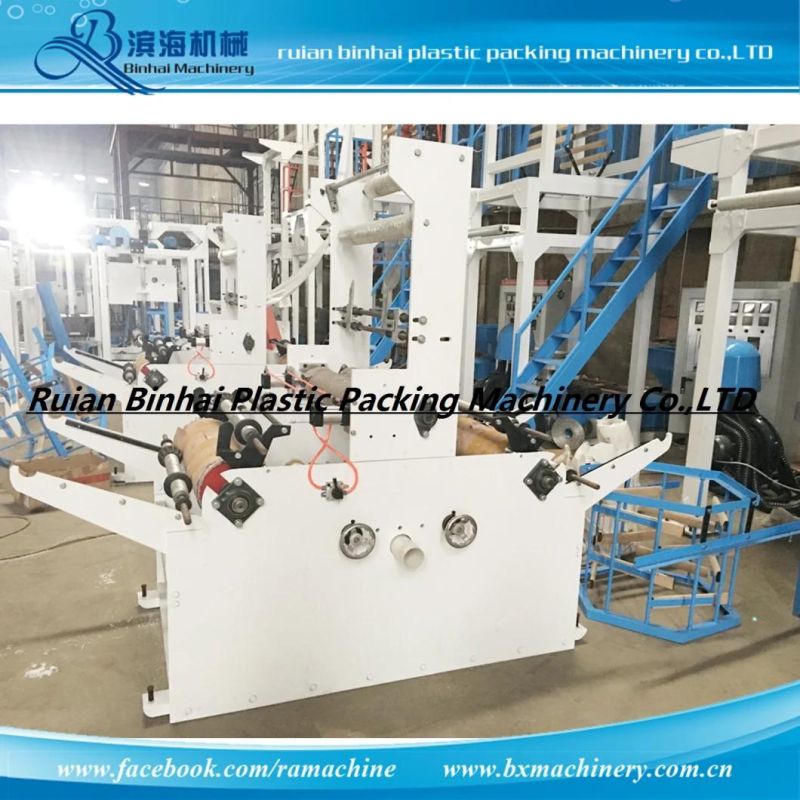

Double winders& Slitter
Auto Screen Change
Auto Loader .
Corona treatment .

Questions:

---- What's your products size
---- Products need print not
---- Film need slit not
---- Single Layer, Two Layer or Three Layer  ?








Single Screw Film Blowing Machine


Main Technical Parameters For Plastic Film Blow Machine

 BH-SJ60BH-SJ65Film Width (mm)200-600300-800400-1000600-1300Film Thickness(mm)HD:0.009-0.08          LD:0.02-0.15Max.Extrusion Output(HD)35kg/hr40kg/hr65kg/hr70kg/hr      (LD)45kg/hr45kg/hr70kg/hr75kg/hrScrew DiameterΦ45Φ50Φ55Φ65Screw L/D Length28:1Screw MaterialSACM-645/38CRMOALAOverall dimension
(L×W×H) mm5000x2000x45005000x2200x50005000x2500x55005000x2800x6500

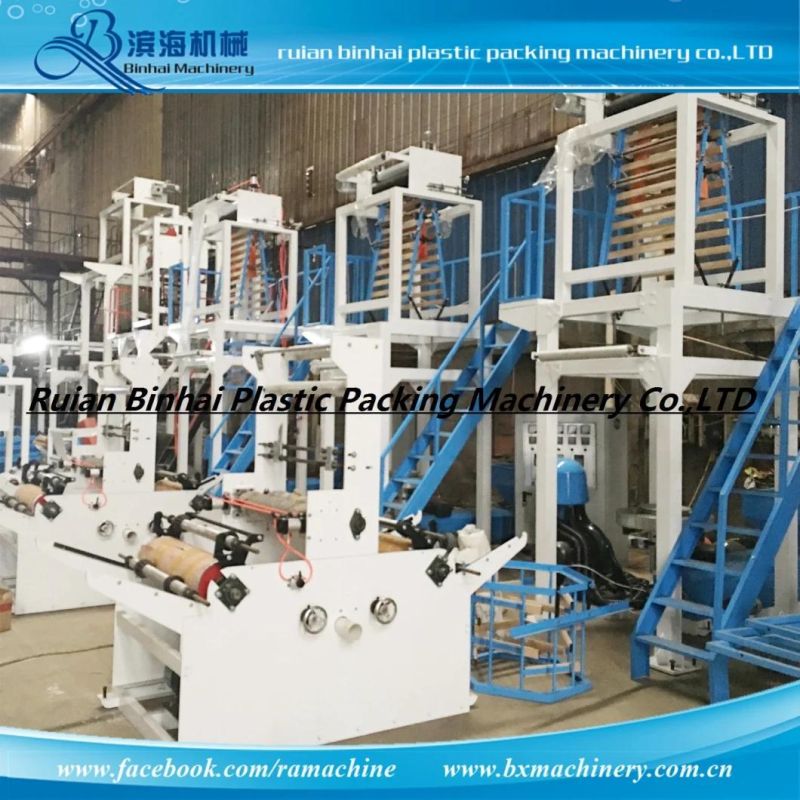

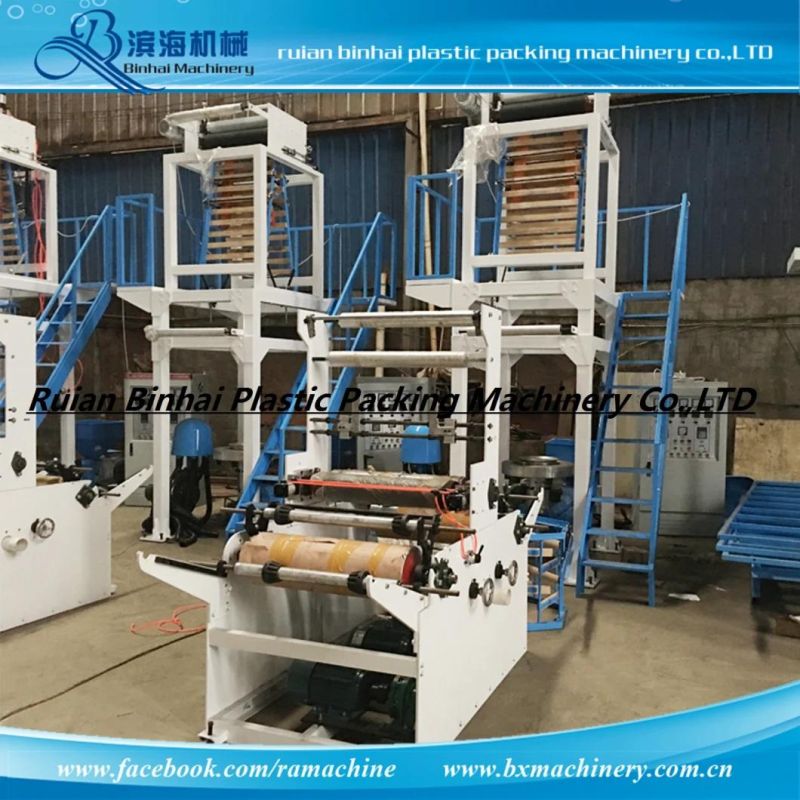

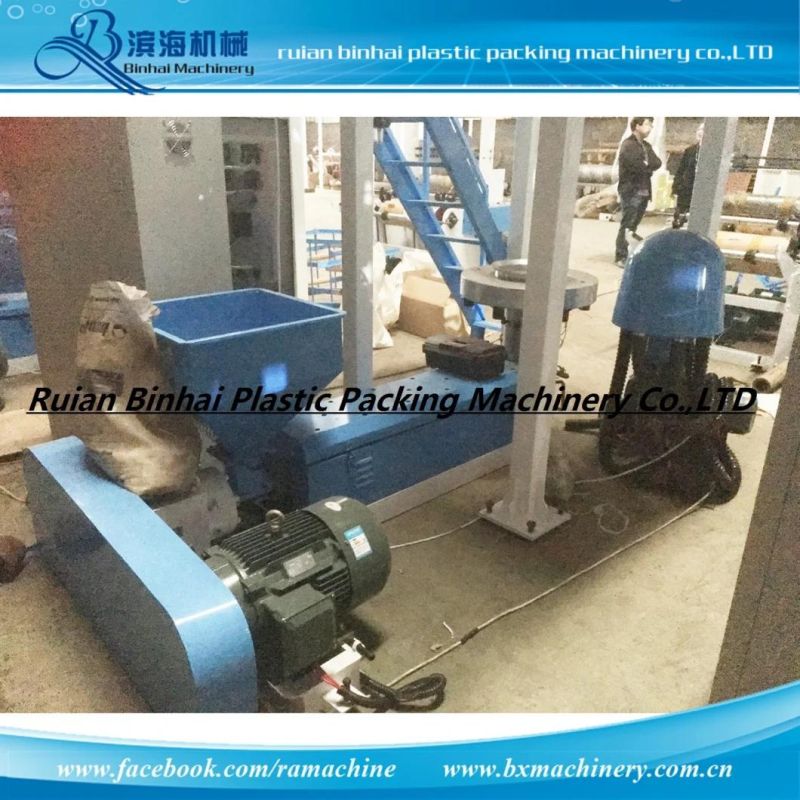

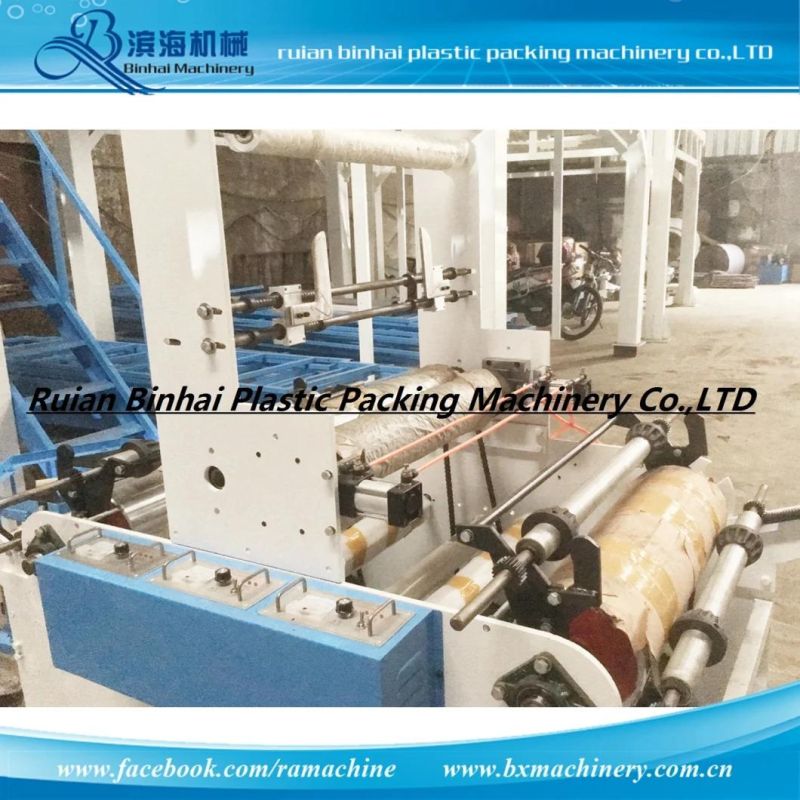

Pictures are 800mm , 50 # Screw For HDPE Film, LDPE Film Blowing Machine .
----Make Tube Film Rolls
----If your Film is HDPE , Suggest Rotary Head Die (Optional )
---If your film is Single Layer For Side Seal bags, suggest Double Winders+Slitter. (Optional )
-- If Your Film need Printing , need Corona treatment . (Optional)

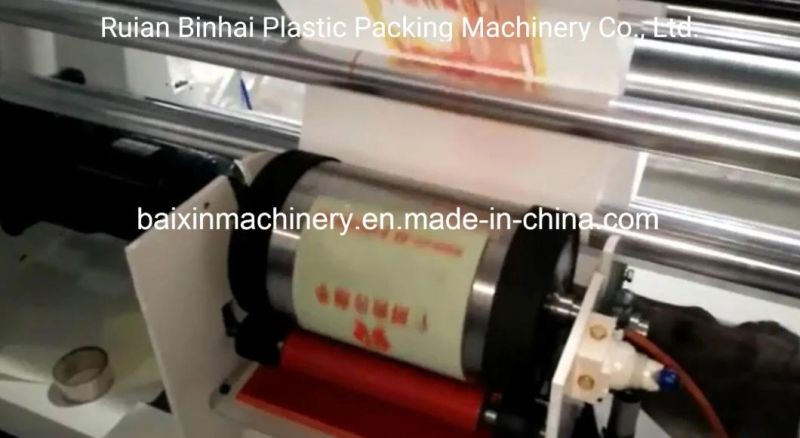

 This is mini printer we installed on Film blowing machine.

  ---Single Color
----- 300mm














Welcome to click learn more information from AMY  Yu , thanks
