• Model NO.：PEDK-9060
• Laser Classification：CO2 Laser
• Engraving Method：Vector&Lattic Engraving
• Power：Small Power
• Drive Type：AC Servo Drive
• Engraving Machine Type：Laser Engraving Machine
• Control：CNC
• Current：AC
• Laser Type：CO2
• Certification：GS, SGS, CE, RoHS
• Engraving Area：900×600mm
• Engraving Speed：0-60000mm,S
• Working Voltage：220V ±10% 50Hz
• Transport Package：Sea-Worthy Packing or Air-Worthy Packing
• Specification：CE & ISO 9001: 2000&FDA
• Trademark：Perfect Laser
• Origin：Wuhan, China
• HS Code：8501310000
• Production Capacity：20 Sets,Month

Basic Info.

Model NO. PEDK-9060 Laser Classification CO2 Laser Engraving Method Vector&Lattic Engraving Power Small Power Drive Type AC Servo Drive Engraving Machine Type Laser Engraving Machine Control CNC Current AC Laser Type CO2 Certification GS, SGS, CE, RoHS Engraving Area 900×600mm Engraving Speed 0-60000mm/S Working Voltage 220V ±10% 50Hz Transport Package Sea-Worthy Packing or Air-Worthy Packing Specification CE & ISO 9001: 2000&FDA Trademark Perfect Laser Origin Wuhan, China HS Code 8501310000 Production Capacity 20 Sets/Month

Product Description

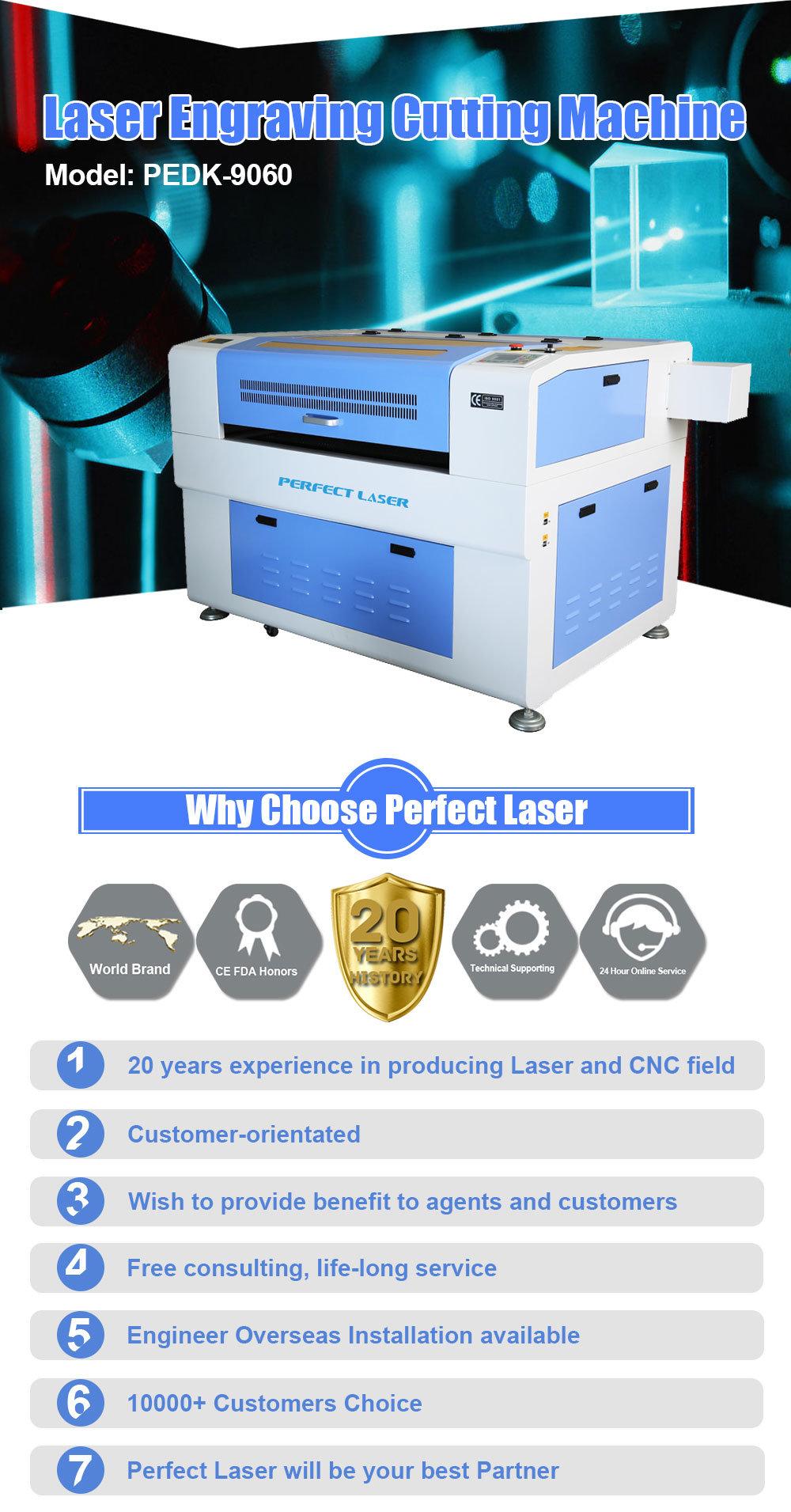

                         Fast Speed CO2 Laser Cutting and Engraving Machine



CO2 Laser Engraving Machine Description:
Perfect Laser - PEDK Models CO2 Laser Engraving Machine with different working area/laser power, which can engrave/cut on acrylic, wood, fabric, cloth, leather, rubber plate, PVC, paper and other kinds of nonmetal materials with complex shapes. Our Laser Engraving Machine is widely applicable for advertisement, arts and crafts, toys, car, mechanism, electron, as well as in trademarks, embroidery, clothing and other industries.

CO2 Laser Engraving Machine Application Fields:
Application Industry: Advertisement, arts and crafts, toys, car, mechanism, electron, as well as in trademarks, embroidery, clothing and other industries.
Available Materials:


CO2 Laser Engraving Machine Special Features:

1. Adopting ball screw rod to make the up and down table, which ensure its long-term using and precision;
2. Adopting LCD offline control system + USB port, red pointer and auto focus system;
3. Equipped with American IIV company's reflect mirror and focus lens, which prolong the lifetime of the spare parts;
4. We use the Chinese top brand laser tube, have very stable performance, lifetime can reach 3000 hours. Also, we have another brand laser tube with 10000 hours lifetime if you require, we can use it in our order;
5. We use both CW3000 for single head, and CW5200 for double head laser machine.

 Technical data:

Model	PEDK-13090
Working Area	1300x900mm (4 feet × 3 feet)
Laser Power	60W/80W/100W/120W/150W
Laser Type	Hermetic and Detached Co2 Laser Tube
Engraving Speed	0-60000mm/s
Cutting Speed	0-10000mm/s
Cutting thickness	0-25mm Acrylic (others determined by materials)
Repeat Location Accuracy	+/-0.0125mm
Driving mode:	DC0.8A 24V stepper motor
Position system:	Red dot
Interface:	USB
Voltage	AC220V/50HZ or 110V/60HZ or depend on customer
Machine Power	900W
Controlling System	CNC Professional Control System
Support Graphics Mode	BMP,HPGL,JPEG,GIF,TIFF,PCX,TAG,DST, PLT,DXF etc.
Cooling Mode	Circulation Water Cooling and Protection System
Auxiliary Devices	Exhaust Fan and Exhaust Pipe

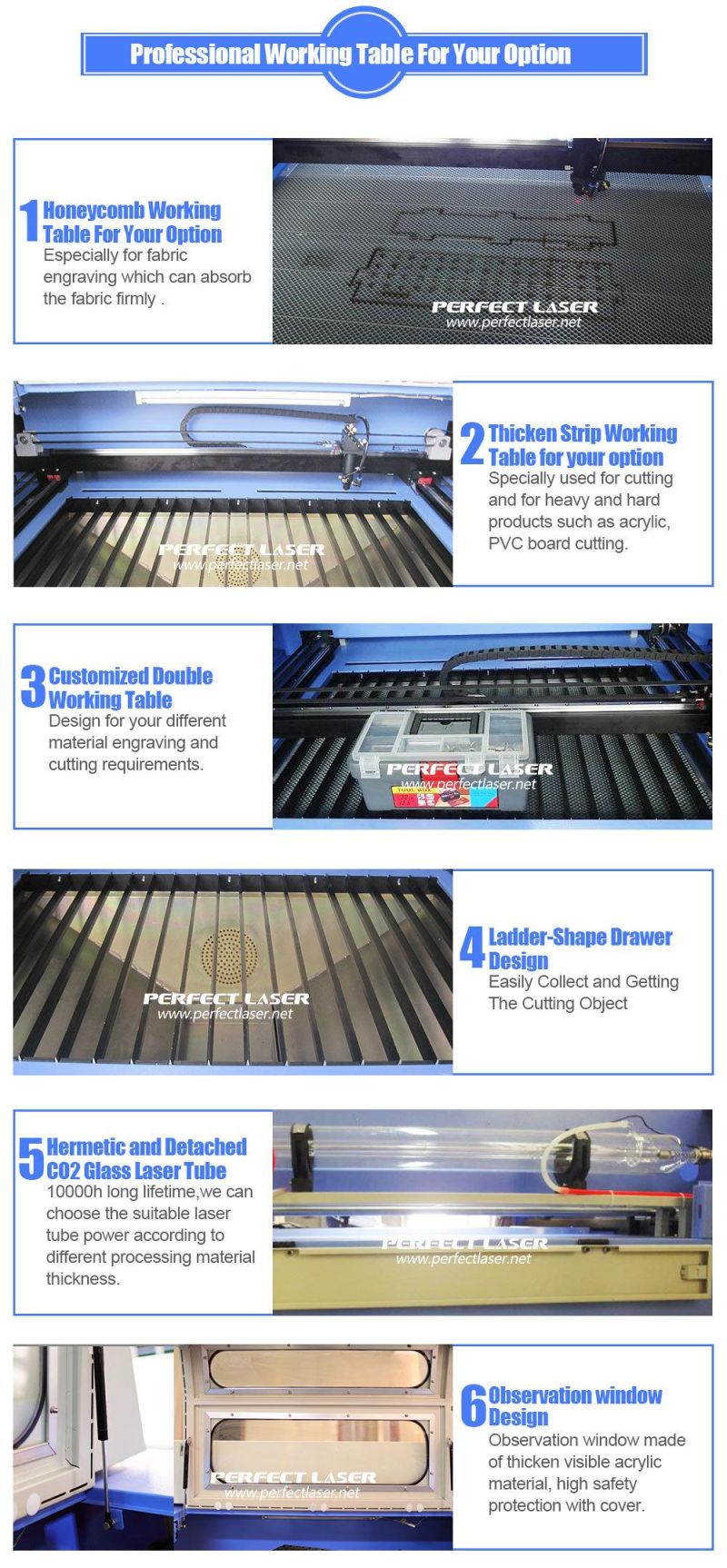

Cutting Platform	Professional Thickening Strip or Honeycomb Work Table
Power Control Mode	Laser Energy Combining Movement Control System
Software	Professional Laser Engraving & Cutting Software(Reader Software)
Operating temperature	0-45C
Operating humidity:	5-95%
Packing:	Standard wooden box
Guarantee time:	12 months
Operation:	Detailed Video to teach customer how to operate the machine
