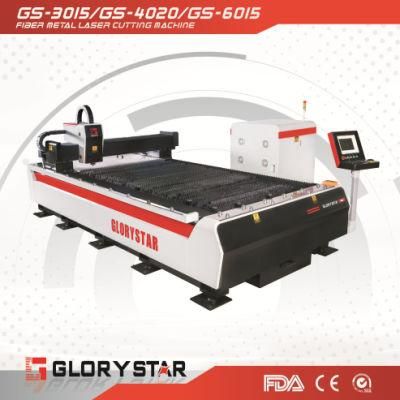

CNC Fiber Laser Cutting Machine Applied to Electronics
Xingyuan Plastic Manufacturing Co., Ltd- Application：Agriculture Machinery, Automotive Industry, Advertising Industry, Metal Cutting Machine
- Cooling System：Water Cooling
- Technical Class：Continuous Wave Laser
- Applicable Material：Metal
- Structure Type：Gantry Type
- Laser Classification：Fiber Laser
Base Info
- Model NO.：GS-3015
- Laser Technology：Laser Control Fault Cutting
- Color：White, Red and Black
- Usage：Cutting Metal in Pieces or Spare Parts
- Maintainance：No Need Maintainance
- Standard Working Area：1500X3000mm
- Optional Choice：Full Covered and Exchange Worktable
- Applicated Materials：Stainless Steel, Carbon Steel, Mild Steel, Copper
- Condition：New
- Certification：GS, Ce, ISO9001, SGS
- Material：Metal
- Transport Package：Packaged by Plywood
- Specification：CE, ISO, SGS, FDA, Bureau
- Trademark：GLORYSTAR
- Origin：Dongguan, China
- HS Code：8456100090
- Production Capacity：1000sets,Year
Description

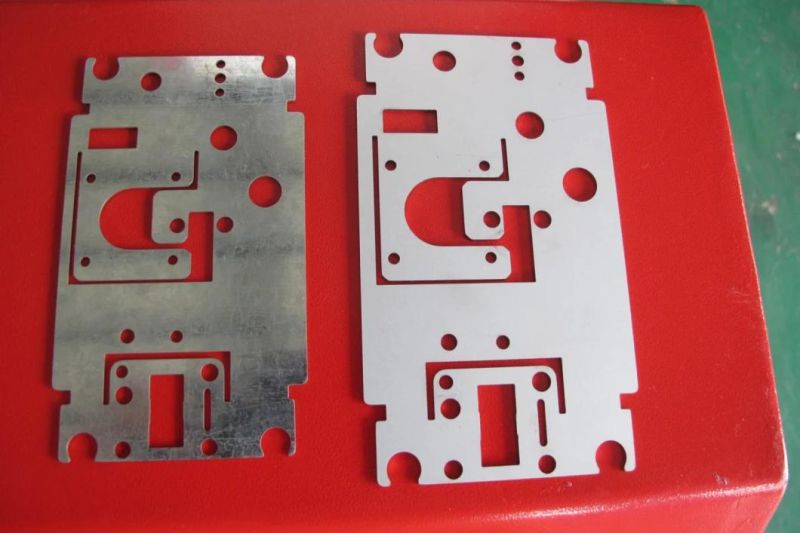

electronic metal plate cutting by 1KW
Technical Data
| Model | GS-3015 |
| Working area | 3000mm*1500mm |
| X axis travel distance | 3030mm |
| Y axis travel distance | 1520mm |
| Z axis travel distance | 120mm |
| X/Y axis geometry positioning accuracy | ≤0.05mm |
| X/Y axis repeat positioning accuracy | ≤0.03mm |
| X/Y axis max.positioning speed | 100m / min |
| X/Y axis max. Acceleration | 1G |
| Cutting line width | 0.1mm-0.5mm |
| Cutting roughness | Ra3.2-25.4um |
| Cutting capacity | 0.5mm-14mm |
| Min.setting unit | 0.001mm |
| Floor size | 8800mm*3160mm |
| Main body dimension | 8800mm*3160mm*2000mm |
| CNC system | CYPCUT |
| Display | 17"LCD |
| Worktable | Exchangeable worktable |
| Worktable max.loading capacity | 1000 kg |
| Unit weight | 4.5 T |
| Overall installed electricity capacity | 50 KVA |
| Phase | 3 |
| Rated Voltae | 380V |
| Frequency | 50 Hz |
| Total power protecting level | Ip54 |
After-sale Service
Installation and debugging
Technicians can be sent to the factory for training (free of service fee for the first time). Customers only need to provide accommodation for engineers.
Training
Free of charge for training within warranty. But customers need to take charge of the cost for accommodation, air tickets, visa fee.
24/7 online service
All our laser equipment is provided with 12 months warranty. Glorystar Laser offers free maintenance or replacement service if something is wrong with the equipment under warranty. If it is out of warranty,Glorystar Laser will send engineers to your factory as soon as possible and only charge the cost of parts.
Accessories supply
IPG laser source is 2 years. Other parts is one year except for optical and consumable parts. Prolong serve is always available for option. Free of charge for fixing and changing parts within warranty. Only changing parts , the freight should be charged by customers.
Remote diagnosis
Glorystar Laser can check the running status of the customer's laser cutter through our remote maintenance system. Our technicians can perform troubleshooting via remote access instead of on-site diagnosis and maintenance, saving you a lot of time.
Additionally, Glorystar Laser will establish a special user profile for all customers who have purchased equipment from us to record your usage, maintenance records and other information. This will help us to learn about customer information more quickly and thus provide necessary upgrades according to customer feedback

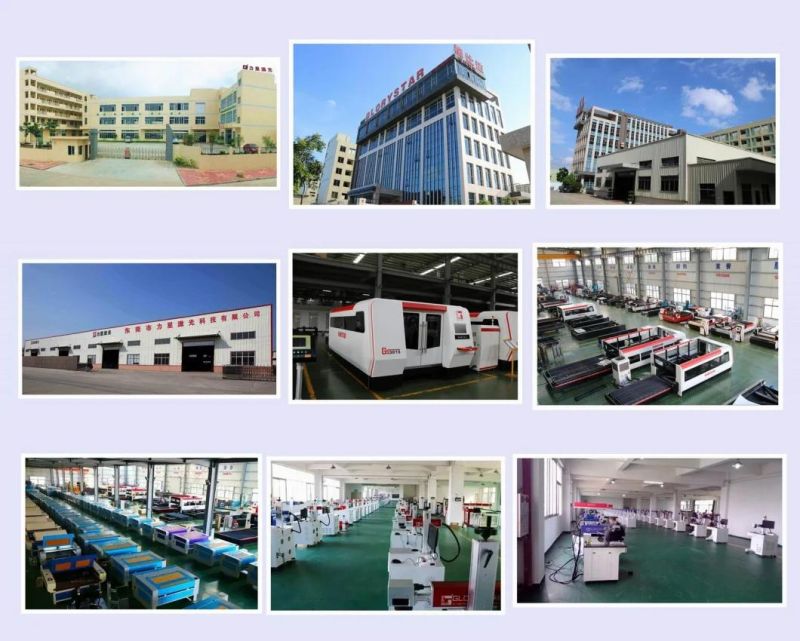

Our Factory
Products selling well in Europe, North America, South America and Southeast Asian countries, and also have service agencies in the United States, Brazil, South Korea and other countries. Main products including fiber laser cutting machines, laser marking machines, laser welding machines and laser application automation lines, etc. 8 major product lines with more than 150 models widely using in the sheet metal industries, 3C industries, new energy and aerospace, automobile manufacturing and other industries.
GloryStar Laser has been working with prestigious universities such as Peking University, Huazhong University of Science and Technology, Jinan University, Nanyang Institute of Technology, City College of Dongguan University of Technology for a long time to carry out university-industry cooperation.The company has nearly 100 patents, set up R&D center, quality center, Glorystar enterprise university, and established R&D center with the Italian laser brand Promotec.
After years of experience and high-speed development, Glorystar Laser successively won the "National High-tech Enterprise", "Famous Trademark of Guangdong Province" and other honorary title. It has set up "Laser Application Research Institute" and "Smart Manufacturing Institute". It is one of the brands with high market share of laser technology and laser application in China, and also one of the fast developing companies in the global industry in recent years.
The company adheres to the core values of "Sincerity and faith, hard Work, Open and Enterprising, Self-Criticism, Teamwork and Customer Success". With the mission of "Technology adds to your value", we are committed to becoming the world′s leading provider of laser intelligent solutions! Glorystar laser adhere to the quality policy of "no quality, no friends", a leading industry in the formation of 21 quality testing processes to high-quality after-sales service to win the high praise of our customers.
We are in top 3 laser manufacture in China,our main products are fiber laser cutting machine ,Co2 laser cutting machine ,laser marking machine ,laser welding machine and CNC bending machine.We are specially for laser technology for more than 15 years,we have our research and development department. now we have more than 300 employees.
