• Model NO.：6218
• Power (Kw)：1.8
• Voltage (V)：220
• Dimension(Net)：725x440x770mm
• Dimension(Packing)：815x530x950mm
• N.W.(Kg)：105
• G.W.(Kg)：120
• Transport Package：Standard Export Packing
• Specification：CE
• Trademark：SPACE
• Origin：Zhejiang, China (Mainland)
• HS Code：8418699020
• Production Capacity：10000 Units,Month

Basic Info.

Model NO. 6218 Power (Kw) 1.8 Voltage (V) 220 Dimension(Net) 725x440x770mm Dimension(Packing) 815x530x950mm N.W.(Kg) 105 G.W.(Kg) 120 Transport Package Standard Export Packing Specification CE Trademark SPACE Origin Zhejiang, China (Mainland) HS Code 8418699020 Production Capacity 10000 Units/Month

Product Description

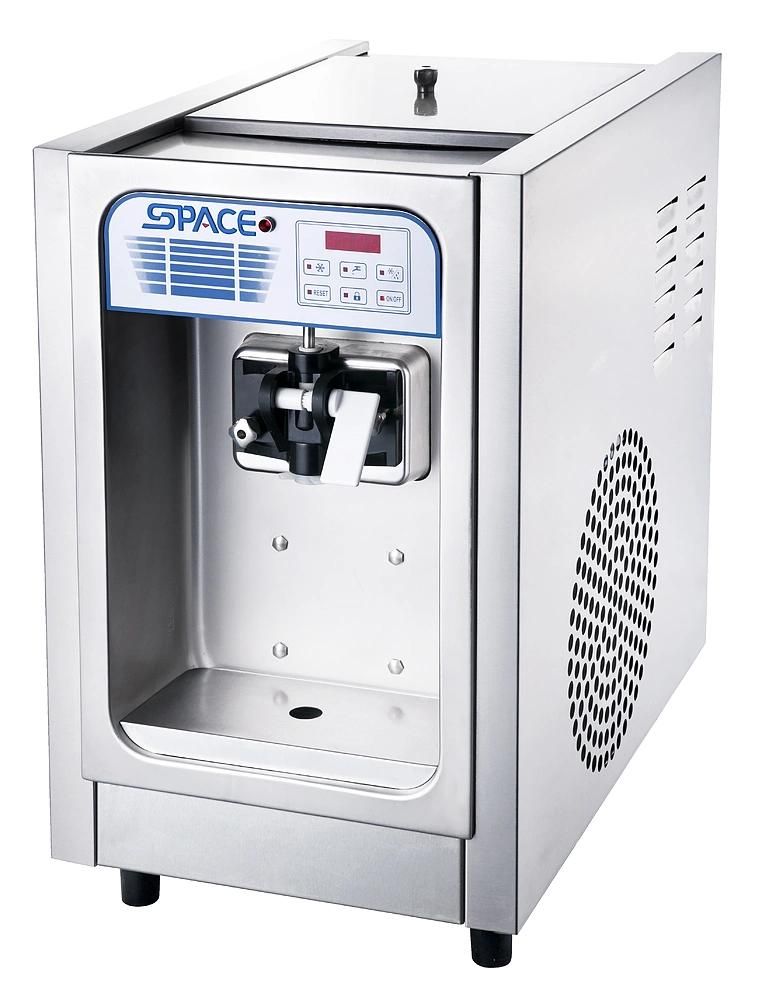

Soft serve ice cream machine 6218






Model: 6218

Feature:
* Single System
* Gravity feed
* Single flavour
* 18 Liters/H
* Stainless Steel Panels
* Double LED touch button control panels

Product Offering:
Offer all popular soft serve variations from low or non-fat ice creams to custards, yogurt and sorbet.

Freezing Cylinder:
One, 1.8 liters

Mix Hopper:
One, 11 liters
Separate hopper refrigeration (Pre-cooling) maintains mix temperature below 4.4º C

Microprocessor Control:
Microprocessor regulates refrigeration by measuring product viscosity to maintain consistent quality.

Mix low light:
The mix low light turns "ON" to alert operator to add mix, preventing cylinder over freezing.

Standby:
Maintains product temperature in the mix hoppers and freezing cylinder below 4.4º C during long no-use periods.

Counter:
Records number of dispenses per day and total number of dispenses.

Agitator in the hopper:
Mixture has better liquidity, the temperature of the mix to be more uniform.

Output:
18 Liter/Hour
(At 4º C Liquid &24º C Ambient)

Electrical requirements:
One dedicated electrical connection is required
Make the voltage steady when machine is ON.

Main motor:
One, 1.25 HP

Refrigeration System:
Two compressors: 3100BTU/hr. R404A
Separate hopper refrigeration (Pre-cooling. ):
One compressor: 400 BTU/hr. R134A
(BTU may vary depending on compressor used. )

Air cooled:
Minmum clearance of 152mm on both sides is to achieve optimum performance.

Specifications
Voltage: 210-230V/50Hz Power: 1.8 KW
Net weight: 105kg Gross weight: 120kg
Machine size: 725x440x770mm Packing size: 8150x530x950mm
Quantity for20": 58 sets Quantity for 40": 116 sets

Options:
1, Manufactured upon request, not available in stock
2, Ice cream cone&cup dispenser
3, Power Supply: 380V/60Hz
4, Local specific plugs of power supply wire.
5, Cover of dispenser door
