Control Valve Dr10-3X Reducing Function Rekith Brand
Jiangmen Jianghai Lianhe Colour Packing and Printing Co., Ltd.- Function：Pressure Regulating
- Installation：Plate
- Drive：Hydraulic
- Type：Pilot-Operated Type
- Max Working Pressure：315 Bar
- Max Flow：150L,Min
Base Info
- Model NO.：DR10-3X
- Transport Package：Standard Carton or Plywood Package
- Trademark：Rekith
- Origin：China
- HS Code：8481201090
- Production Capacity：500 Pieces,Month
Description
Overview
Fixing position Optional Environment temperature range ºC -30 to +50 (for NBR seal) -20 o +50 (for FKM seal) type DR10 DR16 DR20 DR25 DR32 Weight subplate connection DR kg 3.4 - 5.3 - 8.0 DRC 1.2 DRC30 1.5 Threaded connection DR...G 5.3 5.2 5.1 5.0 4.8 Nominal pressure bar 315 Max.operating pressure at port B bar 315 Operating pressure range at port A bar 10 to 315 Max.back pressure at port Y bar 315 Setting pressure Min. bar Related with flow-rate Max. bar 50,100,200,315 Max.flow-rate Subplate connection L/min 150 - 300 - 400 Threaded connection 150 300 300 400 400 Fluid Mineral oil suitable for NBR and FKM seal Phosphate ester for FKM seal Fluid temperature range ºC -30 to +80 (for NBR seal) -20 to +80 (for FKM seal) Viscosity range mm²/s 10 to 800 Degree of contamination Maximum permissible degree of fluid contamination: Class 20/18/15, ISO4406
FAQ
Q2: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q3: How to guarantee the high quality?
A: We have testing department to make sure quality of every product, appearance, flow and pressure test are good.
Q4: How about your delivery time?
A: Generally, it will take 7 to 20 days after receiving your payment. The specific delivery time depends on the items and the quantity of your order.
Q5: What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q6: What is your terms of packing?
A: Generally, we pack our goods in brown cartons and plywood boxes.
Q7: What is your terms of payment?
A: 100% T/T in advance, or 30% T/T as deposit and 70% paid before delivery for bigger order with bigger value.
Q8: How do you make our besiness long-term and good relationship?
A: We keep good quality and competitive price to ensure our customers benefit. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Technical data

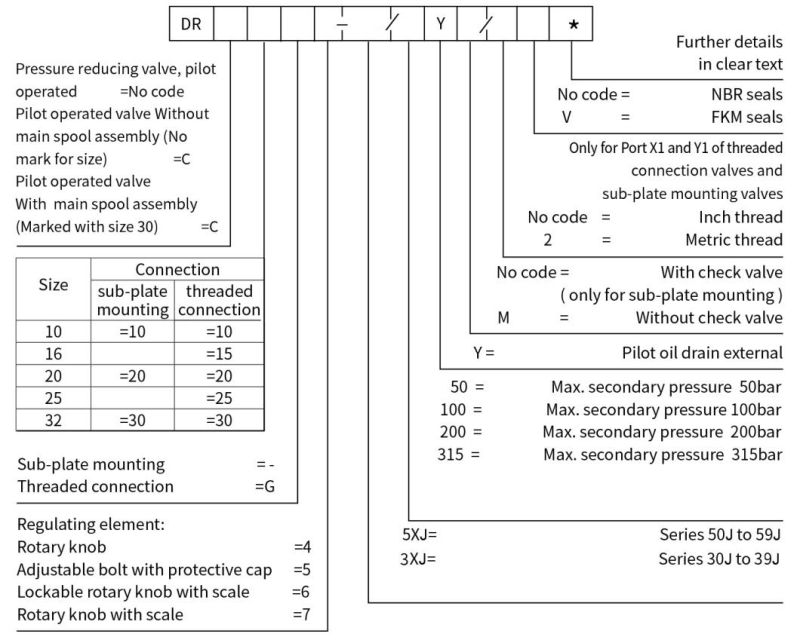

Ordering code
