ABS Pet Compounding Granulation Line/Parallel Twin Screw Pelletizing Line
SHAOXING SHANGYU REAL SAW CUTTING TOOLS CO., LTD.Base Info
Description
32-56400 90 1074 5.0 225-350 500 110 1050 4.8 250-450 SJH-75B 71 290 32-64 600 132 1050 4.8 350-550 SJH-75D 71 290 32-64 60O 220-250 1990 9.2 500-1000
Specification:
1. PSD Series Compounding and Granulating line for Color Master BatchNO. Name 1 SHR500A High Speed Mixer 2 Screw Loader 3 Main feeder 4 PSD series Twin Screw Extruder 5 Electric Control System(cabinet) 6 Strands Pelletizing System/ Under-water Pelletizing System 7 Vibrating screen 8 Product hopper

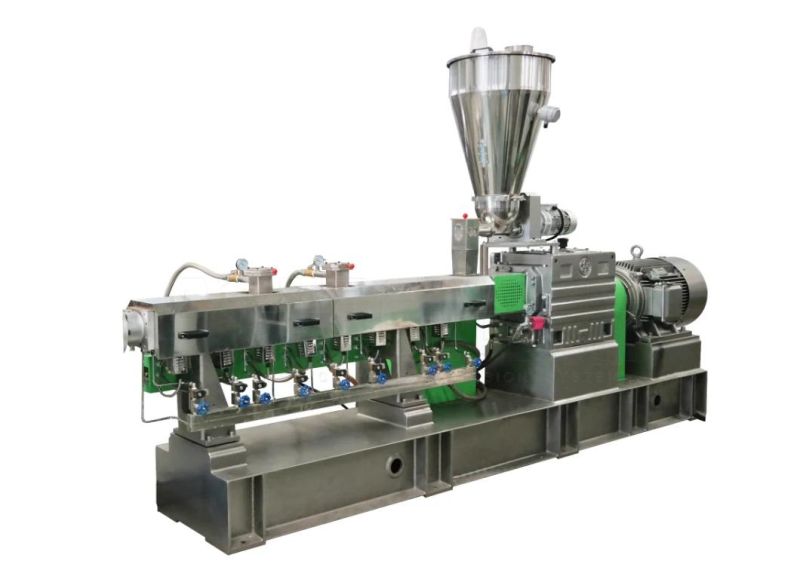

Introduction of parts of PSD Twin Screw Extruder
PSD Twin Screw Extruder adopts modular design principle, component standardization manufacturing, which can present stable and reliable performance. Thanks to the modular principle, PSD extruders can provide highly customizable solutions according to customers' process and special requirements. Based on different output torque grade, PSD series extruders have basic type and efficiency type.
Process section includes barrels, screw shafts, screw elements, individual temperature heating and cooling unit. Barrels and screw elements are designed in block principle.
Block structure allows the screw elements combine and sequence optimized to realize the process:
Conveying-Plasticization- Compounding & Dispersion- Homogenization- Degassing- Pressure building
Also Block structure allows the barrels adjust freely to the fit the process requirement.
Based on different process position, PSD extruders have different barrels type: feeding barrel, side feeding barrel, close barrel, open on top barrel, vacuum vent barrel, etc. According to the different jobs' requirement, barrels' materials can be nitride steel or bimetallic steel.
Multiple cutting systems can be combined with PSD Twin Screw Extruder, such as strands pelletizing, hot-face cutting and under-water pelletizing, etc.
Both Instrument control and PLC control are available to apply in the PSD electrical controlling system. All the key electrical parts adopt European brands to guarantee the controlling system with significant and stable performance.

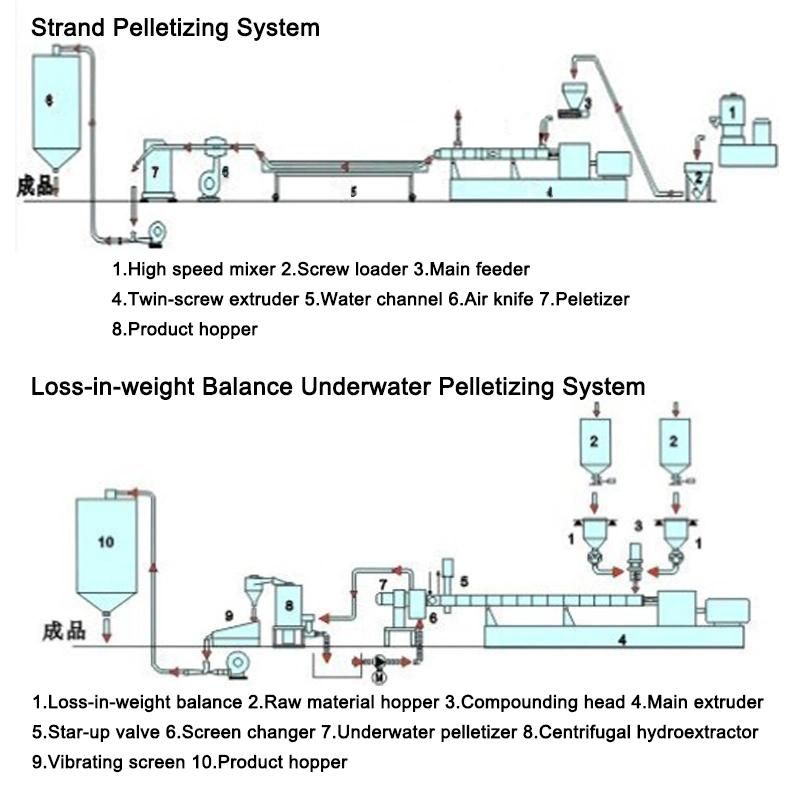

Flow Chart:
Main technical specificationMachine Size Screw Diameter(mm) L/D Screw Speed
Max.(rpm) Motor power
(Kw) Torque per shaft
(Nm) Specific torque
T/A3 Throughput rate
(kg/h) PSD35 35.6 36-44 600 15 115 4.2 40-80 PSD52 51.4 36-44 600 55 415 5.2 120-150 PSD65 62.4 36-44 600 90 675 4.8 250-350 PSD75 71 36-44 600 132 990 4.6 350-500
Advantages of color master batch:
1. High concentration of pigment
2. Excellent dispersion, good heat-resistant, high color fastness, stable performance and shows bright color
3. Non-toxic, environmental-friendly
4. Compatible with various material PE/PP/PS/ABS/HIPS/PVC/TPR etc.
5. Wide application: blow moulding, blowing film, injection moulding, extrusion, spin-dyeing, cable sheathing, etc.
6. Range of industrial application: office automation, household appliances, film and packing material, textile, sheet, pipe, medical appliances, toys and so on.
Advantages of the production line
1. It can produce high-quality, high-quantity filler master batch
2. It works with high efficiency
3. It's computerized with high automation
