Basic Info.

Model NO. CH-MF Machine Weight 4200kg Certification CE Film Thickness 0.006-0.08mm Output 85kg/H Transport Package Film Wrap / MDF Frame Specification 6.5*4.2*6.2m Trademark Chengheng Origin China HS Code 8477309000 Production Capacity 100 Sets Per Year

Product Description

CHSJ-MF Blown Film Extrusion Machine (Mulch Film)




Model	Q-50/1300    Q-60/1600  Q-75/1800
Film width (mm)()	300-1200mm  500-1500mm 500-1700mm
Film thickness()	0.006-0.08mm
max output()	55kg/h   75kg/h  85kg/h   Depend on different width,thickness of film, die size and raw material characteristics
Raw material()	HDPE/LDPE/LLDPE
Diameter of screw()	Φ50,30/1   Φ60,30/1  Φ75,30/1 SACM 645 ,bimetallic ,five years guarantee
Main motor()	18.5kw  30kw  37kw   100% Original three-phase variable frequency motor  Equipped with inverter control
Width Take up roller(mm)	1300mm  1600mm   1800mm
Weight()	2800kg  3500kg  4200kg
Machine size()	6*3.6*5.2  6.5*4*5.8   6.5*4.2*6.2

Note: The above Specifications, Dimensions & design characteristics are subject to change without notic


Our service:

1.Guarantee period: 5 year Garantee for Screw, from the date customers receive the machine.
lifetime warranty for after-sales service and mechanical parts.
2.Delivery:within 35-40days finish production,we start to manufacture the machine after we receiving 30% of the payment as deposit.
3.Packing: Film Wrap
4. After sale service:
We can arrange engineer to install the machine and training worker, but customers need to pay the charges, including flight tickets cost, accomodation cost, salary USD/day.
Free installation, ajustment and training for consumers purchase more than $100000 only
5.Professional advices and consultancy for the relating machines in 24 hours.





Our products

1. Blown film extrusion machine, co-extrusion blown film machine. For 1-5 layers blown film made of LDPE, LLDPE, HDPE, OPP, PP, (bio) degradable plastics, recycled material and blends.
2. Bag making machine. For flat bags, Vest(T-shirt) bags, string drawing bags, Garbage bags, carry bags, roll bags, (Courier)permanent adhesive bags, laminated bags.
3. Plastic film printing machine. Plastic Laminating machine.

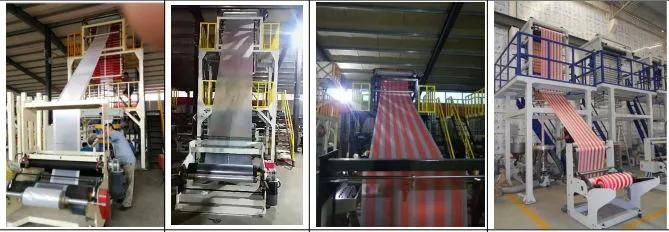

Our Blown Film Extrusion Machine

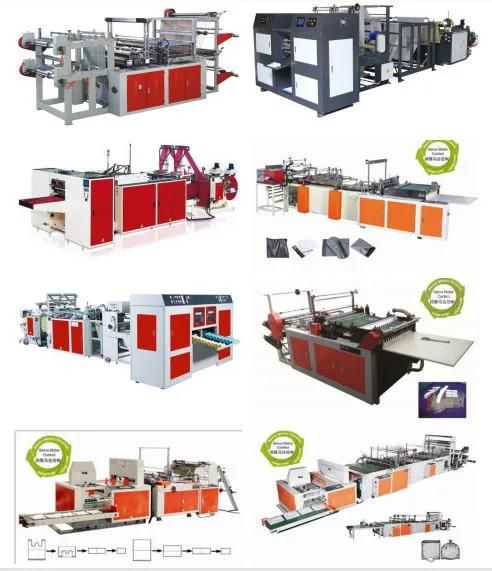

Our AUtomatic Bag making Machine


We have gained CE, SGS, or BV certificates for most of our products.
SGS and TUV audited plant. Golden member of Made-in-China
The factory is located in Ningjin Plastic industrial zone in North China, out of Shijiazhuang city, hebei province, about 2 hours driving south of Beijing airport.
