151b3103 Omv Hydraulic Motor Pdf Marine Hydraulic Motor Straight Shaft Bsp Ports
Changzhou Kaiguan Packaging & Technology Co., Ltd.- Certification:CE
- Pressure:Medium Pressure
- Work Temperature:High Temperature
- Voltage:0
- Installation:Horizontal
- Material:Alloy Steel
Base Info
- Model NO.:BMV
- Warranty:12months
- Delivery:10-15 Working Days
- Transport Package:Carton Packing, and Finally with Pallet or Wooden
- Specification:BMV
- Trademark:HANJIU
- Origin:China
- HS Code:8412291000
- Production Capacity:500, 000 Sets Per Year
Description
DescriptionManufacturer: HANJIUCountry of origin: CHINACondition: NEW packagingMaterialnumber: 151B3103Modelcode: BMVMotorseries: O-SeriesDisplacement: 630Mounting Flange: StandardMounting Thread Dimension: NoneShaft Style: CylindricalShaft Size: 50 mm ; M12 x 1,75 tapShaft Key: A14 x 9 x 70 mm (DIN 6885)Port Size: Side portPort Dimension: G 1Drain Port Style: StandardDrain port Dimension: G 1/4Brake Release Port: NoneBrake Release Port Dimension: NonePainted: BLACKSpecial Features External 1: NoneSpecial Features External 2: NoneSpecial features External 3: NoneDust Seal: StandardShaft Seal: NBR - StandardFront bearing: Tapered roller bearingRear bearing: Tapered roller bearingGear wheel set: StandardCheck valve: YesValve function: NoneSpecial Features Internal 1: NoneSpecial Features Internal 2: NonePackaging: Single packOption Type: Standard

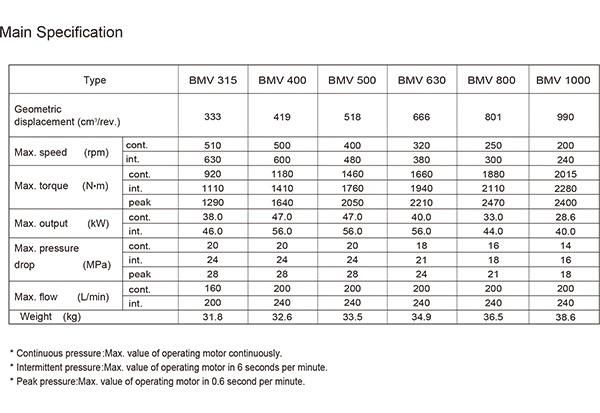

Weight (kg)31.832.633.534.936.538.6
