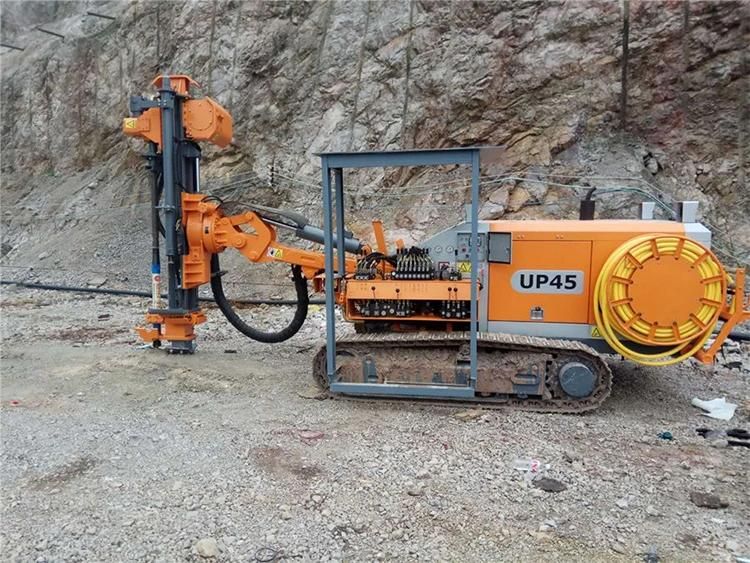

Hole range90-130 mmWorking Voltage380VHole depth30mCable reel capacity60mDrill pipe size68*1200 mmElectric motor Power55 KwNumber of pipes24+1Diesel engine power58KwFeed beam length3010 mmTramming speed3 / 1.5 km/hMax.rotation torque2600 N.mTurning radiusPivot turning 360 degreeRotation speed68-103 rpmClimbing ability30 degreePull up/Feed force25 kNFeed beam rotation angle360 degreeAir compressor pressure10-25 barWorking face dimensions:Width*Height5250*4057 mmRecommended compressor F.A.D4.5-15 m3/minDimensions6000*2400*2550 mmDTH hammer size3" /4"Total weight7500 kg

Application

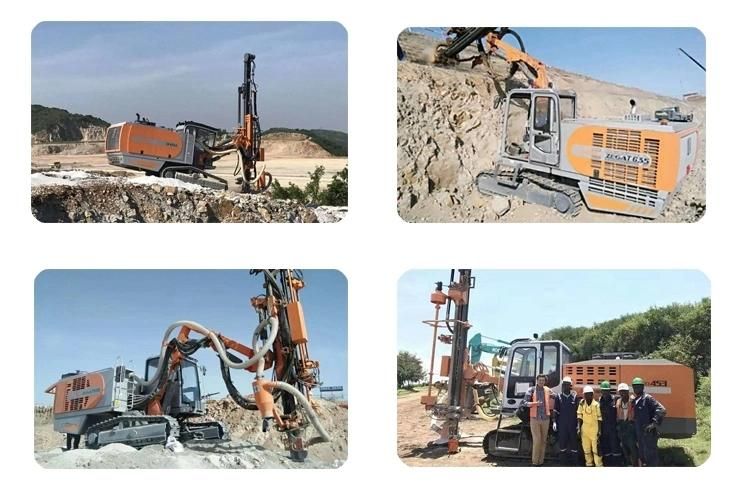

Crawler Down the Hole drilling rig ,for open pit mining , quarries and construction work sites, equipp with dry dust collector,more environment friendly and energy saving.

Company Information

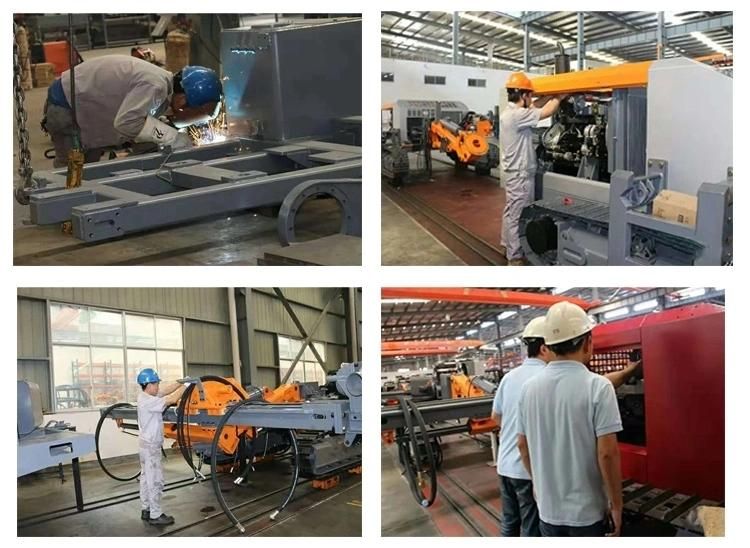

ABT Drilling Equipment Co., Ltd. mainly provides holistic drilling solutions, serving the mining, stone crushing, water conservancy drilling industry, to help you solve the problem of drilling at high efficiency and low cost. We mainly provide mobile air compressors, drilling rigs, hammer, drill bit, crushers, underground water detector.We are your trustworthy partner.

FAQ

1. What is your payment terms?

We can accept T/T, L/C.If you have any special requirements, please contact us.

2.What is your MOQ?

Our MOQ is 1 sets.

3.How about OEM?

We support OEM.
