• Model NO.：STBA
• Transport Package：Carton, Pallet
• Specification：250mm-600mm
• Trademark：COREDIAM
• Origin：China
• HS Code：82023910
• Production Capacity：1000PCS,Month

Basic Info.

Model NO. STBA Transport Package Carton, Pallet Specification 250mm-600mm Trademark COREDIAM Origin China HS Code 82023910 Production Capacity 1000PCS/Month

Product Description

1. Introduction

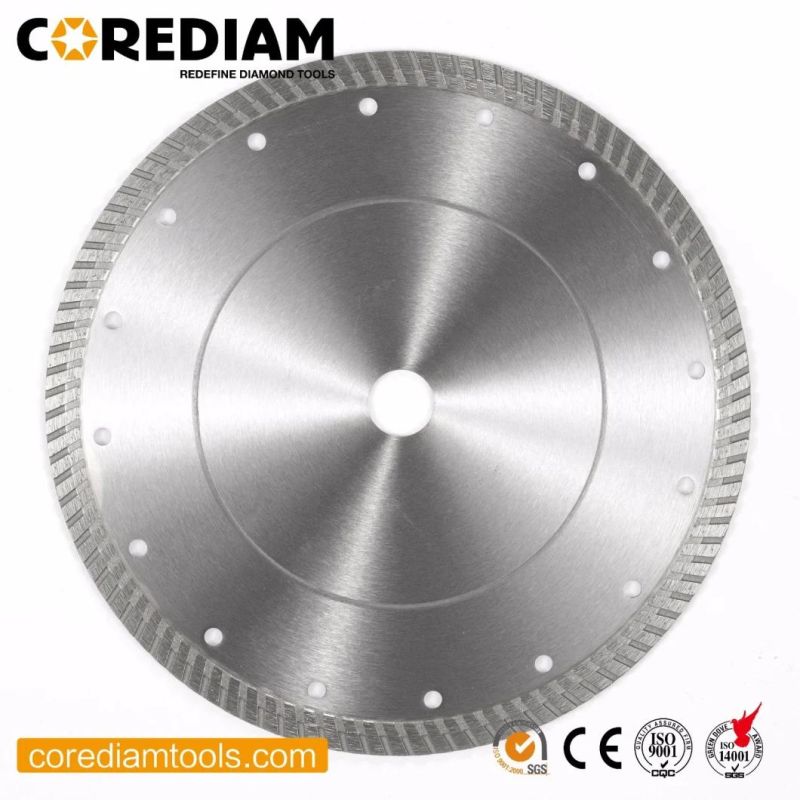

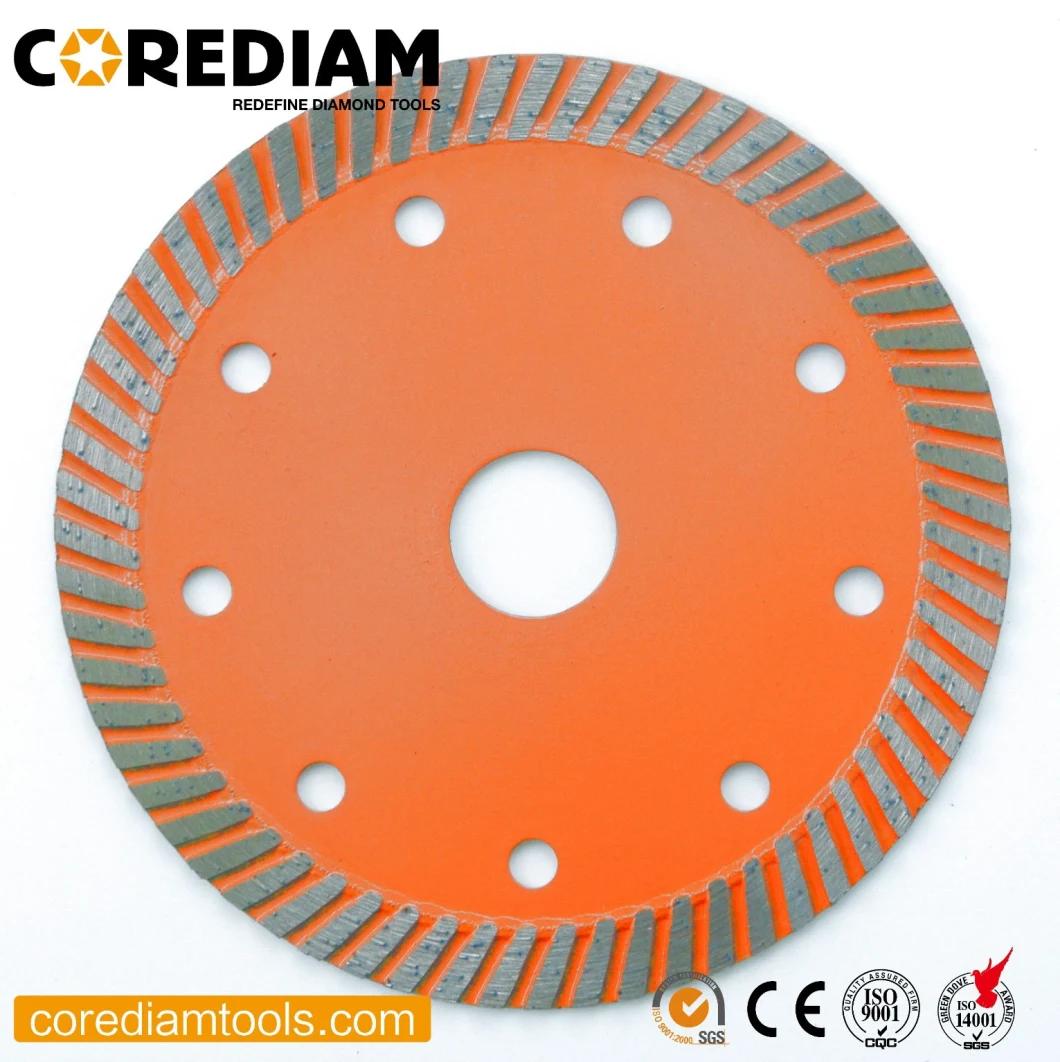

This blade is with turbo type segments, it is sinter hot-pressed. Turbo type segments can make fast cutting speed with a clean edge and no chipping. Specially designed fine turbo teeth and the mature bond system offers extremely fast and smooth cutting. Specially designed fine turbo teeth and mature bond system provides extremely fast and smooth cutting.

2. Cutting materials & equipment
Cutting materials: granite, marble and other stone materials with good efficiency.
Install equipment: angle grinder, circular saw, tile saw



3. Features:
- Suitable for dry/wet cutting.
- Good cutting result: smooth and stable cutting, stone waste reduction./wet cutting
- Fast cutting speed with a clean edge and no chipping.
- Specially designed fine turbo teeth and mature bond system provides extremely fast and smooth cutting.


4. Specification:

Item No.	Diameter	Segment Height	Segment Width	Arbor
STBA10508	105mm	8mm	2.2mm	22.23mm
STBA11508	115mm	8mm	2.2mm	22.23mm
STBA12508	125mm	8mm	2.2mm	22.23mm
STBA15008	150mm	8mm	2.2mm	22.23mm
STBA18008	180mm	8mm	2.5mm	22.23mm
STBA23008	230mm	8mm	2.7mm	22.23mm
STBA30010	300mm	10mm	3.2mm	25.4mm
STBA35010	350mm	10mm	3.2mm	25.4mm

5. Delivery time &Packing

Our leading time will be about 2-3 weeks for the batch order.
For sample test, we can finish preparation within 2 weeks
We use box, carton and pallet to ship the blades.

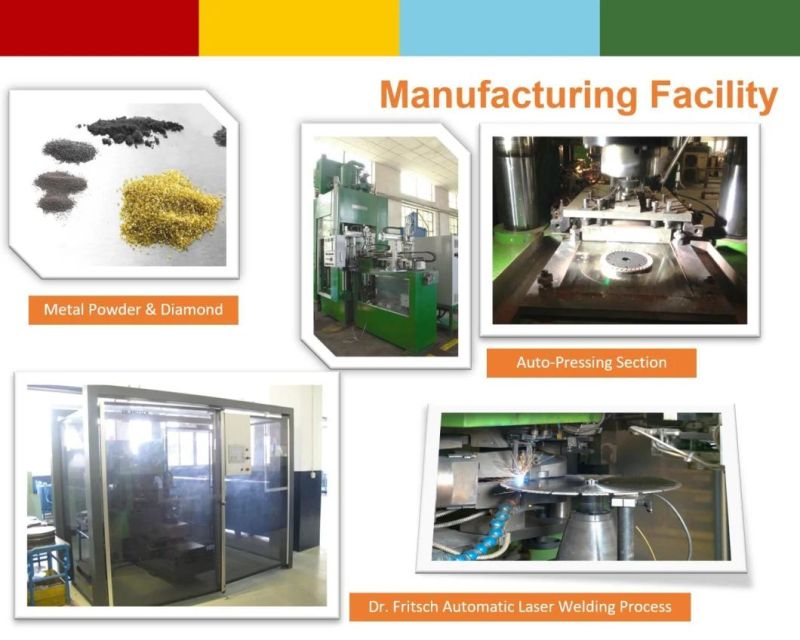

6.Prouction & Testing Process











7. Corediam Introduction

Corediam Tools Co., Ltd., as a high-tech enterprise, concentrates on researching & developing manufacturing and marketing diamond tools industry. We have the most extensive, innovative and powerful range of diamond tools for construction, stone and DIY markets. Corediam strives to be the leading professional supplier in the world through technology innovation.
