Technical Parameter Of Hydraulic Drilling Rig      Machine Specification    model    BJ130   Drilling Depth(m) 190   Open Hole Diameter(mm) Soil/Rock 220   End Diameter (mm) 75   Drill Rod Diameter(mm) 42-60   Drill Angle(°) 90-75   Matching Engine Power(KW) 13.2   Weight Without Engine(KG) 620/750   Dimension L*W*H (mm) 2400*800*1400  Spindle Speed(r/min) 142/285/570   Stroke(mm) 450   Winch Single Rope Lift Force(kg) 2000   Single Rope Lift Speed(m/s) 0.41-1.64   Rope Diameter(mm) 9.3   Rope Capacity(m) 27  Drill Mast Rated Load(Ton) 18   Effective Height(m) 6.5  Mud Pump Flow(L/Min) 95   Max.Pressure(Mpa) 1.2   Back and Forth(times/min) 93   Inlet Hose Diameter(mm) 51   Outlet Hose Diameter(mm) 32  Company Profile

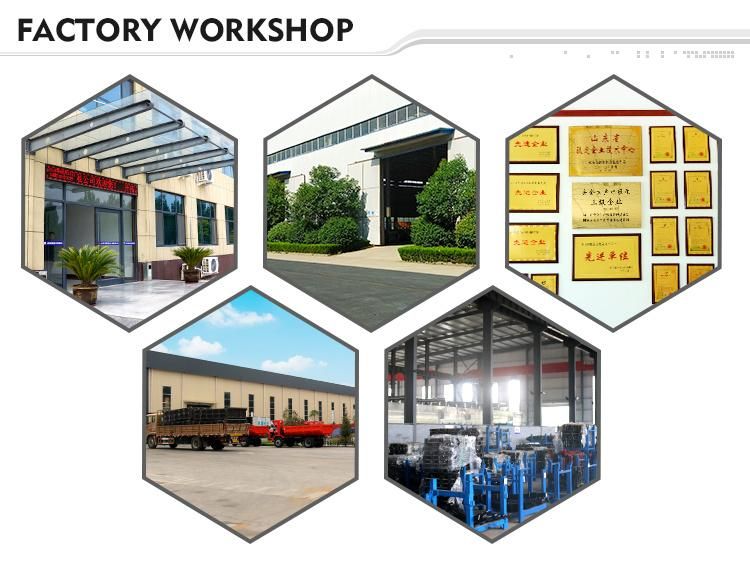

  Factory workshop

  Certifications

 Why Choose Us


    FAQ
