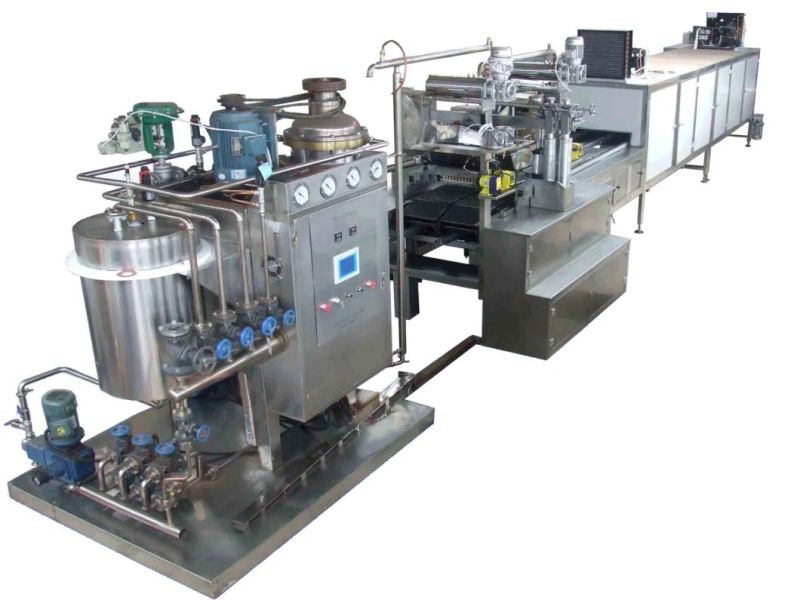

• Function：Single Color,Double Colors,Filled Hard Candy
• Package：Standard Wooden Case
• Voltage：220V,380V
• After-Sales Service Provided：Field Installation, Commissioning and Training
• Model Number：Jyh150-600
• Dimension(L*W*H)：17-18m
• Weight：3500-5000kg
• Application Fields：Snack Food Factory
• Key Selling Points：High Productivity
• Material：304 Stainless Steel
• Warranty：5 Years
• MOQ：1 Set
• Raw Material：Water, Sugar
• Service：Engineers Available Overseas
• Model NO.：JYH 150-600
• Capacity：150-600kg,Hr
• Transport Package：Sea Worthy Wooden Packing
• Trademark：Junyu, Junyu
• Origin：Shanghai, China (Mainland)
• HS Code：84382000
• Production Capacity：10 Set,Sets Per Month

Model

JYH-150

JYH-300

JYH-450

JYH-600

Standard yield(kg/h)

150

300

450

600

Maximum sugar weight

6

6

6

6

Pouring speed(n/min)

55~65

55~65

55~65

55~65

Steam demand

250kg/h

0.5~0.8MPa

300kg/h

0.5~0.8MPa

400kg/h

0.5~0.8MPa

500kg/h

0.5~0.8MPa

Compressed air demand

0.2m³/min

0.4~0.6MPa

0.2m³/min

0.4~0.6MPa

0.25m³/min

0.4~0.6MPa

0.25m³/min

0.4~0.6MPa

Working environment

temp20~25

humidity55%

temp20~25

humidity55%

temp20~25

humidity55%

temp20~25

humidity55%

Total power

27KW/380V

28KW/380V

41KW/380V

64KW/380V

Full length

17

17

18

18

Total Weight

3500

4000

4500

5000
