Basic Info.

Model NO. DFQ-200W Work Pressure 1.05-2.0 MPa DTH Hammer DHD350360 Engine Diesel Engine Feature High Efficiency Transport Package Standard Container Specification 3700X1660X2350 mm Trademark DEFY Origin Henan, China Production Capacity 100 Sets Per Month

Product Description

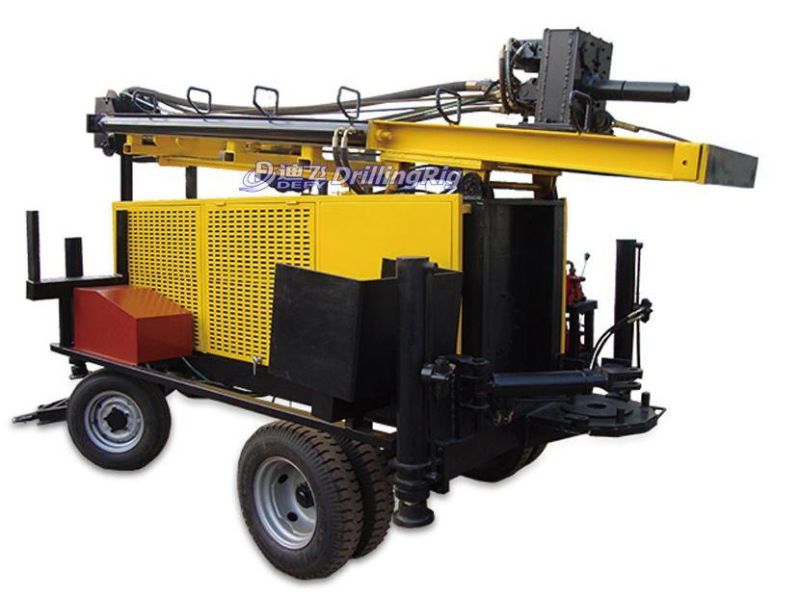

                      Borehole DTH hammer drilling rig equipment factory
 Product Description

1. DFQ series drilling rig used with DTH hammer and air compressor.

2.Suitable for drilling water wells, agricultural irrigation well, geothermal air-conditioning hole and other uses, especially for water engineering in mountainous and rock areas.

3.It can be designed as trailer mounted, crawler mounted and truck mounted.

4. Good performance for drilling hard rocks, gravel, pebble stratum , DFQ series can work efficiently under all kinds of geological structure.

Main Features 1. Drill different stratums, Max. borehole diameter 203 mm, Maximum depth 200 m.
 2. Adopts the new type hydraulic technology, DTH hammer and bits, used with air compressor.
 3. Two large caliber high pressure cylinders,supplying the lifting power as much as 8.5t for the drill rig.
 4. Multi-cylinder water-cooled engine by Famous brand provide abundant power for the hydraulic system.
 5. Innovative embedded idler pulley structure.
 6. Four independent large diameter hydraulic jack cylinder (can load 5 tons), the drill rig can automatically go up and down through hydraulic drive.

Product Parameters


Item	Specification
Drilling caliber	Φ105-203mm
Max. drilling depth	200m
Diameter of drill pipe	Φ76
Unit Length of drill pipe	3000mm
Work pressure	1.05-2.0 MPa
Gas consumption	10-24 m³/min
DTH Hammer	DHD350360
Apply to rock hardness	f=6-12
Power	50Kw/2200rpm
Gradeability	25°
Walking speed	0~2.0 Km/h
Rotary torque	2000N.m
Weight	5200 Kg
Dimension	3700×1660×2350 mm

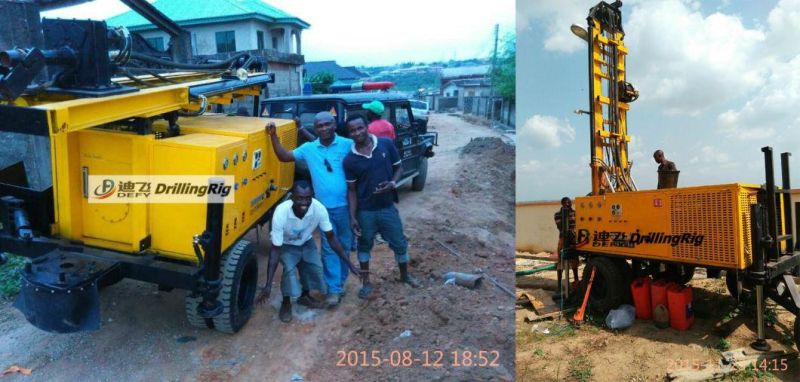

Customer Visit



Buying Tips

How to choose a suitable drilling rig?

1. What will you do using drilling rig?

---For water project, core sample, soil test, mineral prospect or others?

2. The depth you need?

---For water well, generally, 30-200m. For core sample, 30-600m, even more.

3. Any requirements to hole diameter?

---Within a certain range, the smaller diameter, the deeper depth. Mathematically, we call it inversely proportional.

4. Working land condition?

A. soil, sand, weathered land, etc. soft stratum.

B. soil, sand, soft and hard rock stratum, mixed one.

C. Mainly hard rock, like granite.

Based on the above information, DEFY experienced engineers will help you recommend suitable machine and price. If you have special demands, please tell us ahead.

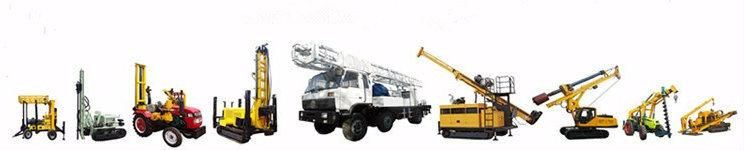

Rich Product Series
