Basic Info.

Model NO. SJSZ-80/156 Material Stainless Steel Power Supply 380V Three Phase Control System PLC Control System Inverter ABB Intelligent Temperature Controller Omron From Japan Warranty 12monthes After Sale Service Life Long with Professional After Sale Team Raw Material PVC+Wood Powder Machine Color as Request Cooling Method Recycling Water Transport Package PE Film and Wooden Package Specification ISO9001 CE Trademark suke Origin Qingdao, China HS Code 84775900 Production Capacity 25sets/Year

Product Description

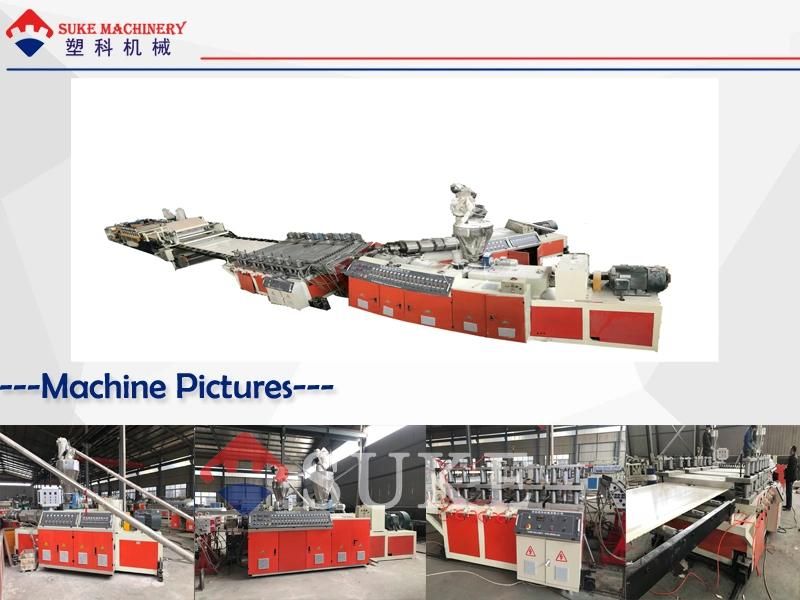

PVC Crust Foam Board Machine Line


Specifications
1, Building WPC PVC Crust Foam Board Machine
2, Thickness: 3-30mm
3, Width: 1220mm
4, CE, ISO9001




Main Technique Parameter

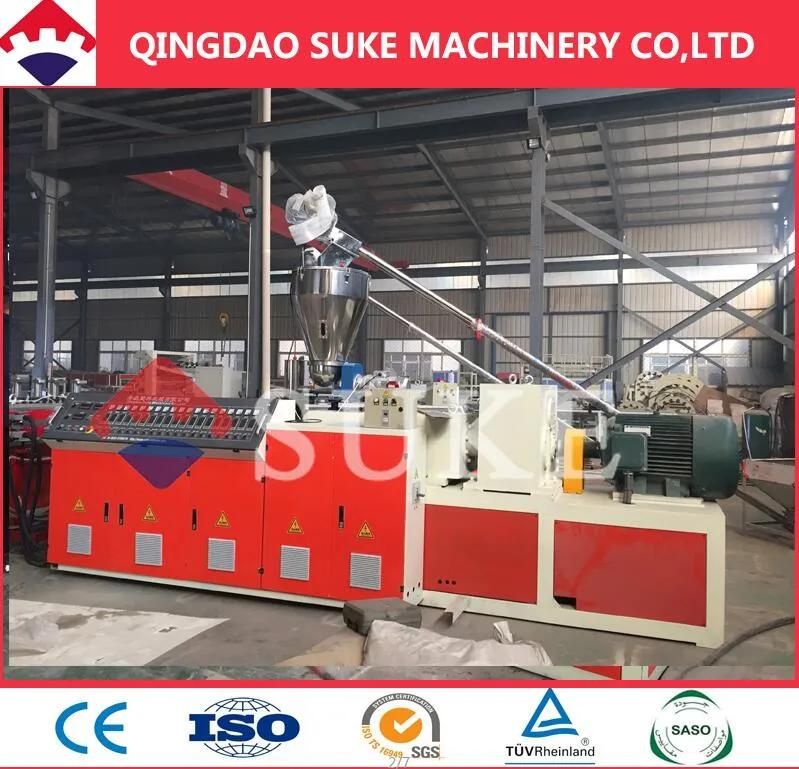

1,Conical double screw extruder SJSZ-80/156
A) Output: 300-400kg/h
B) Transmission system:
High torque output vertical reducer gear box
Structure: Vertical
Provided with outside-circulation cooling system
Imported thrust bearing and high-torque output
Material of Gear: 20CrMnTi, with gear grinding technical treatment and cementite

2,Mold
A) Structure: Special design for PVC WPC board
B) Width of die: 1400mm
C)Thickness: 12-20mm
D) Material: 5CrNiMo, high quality alloy

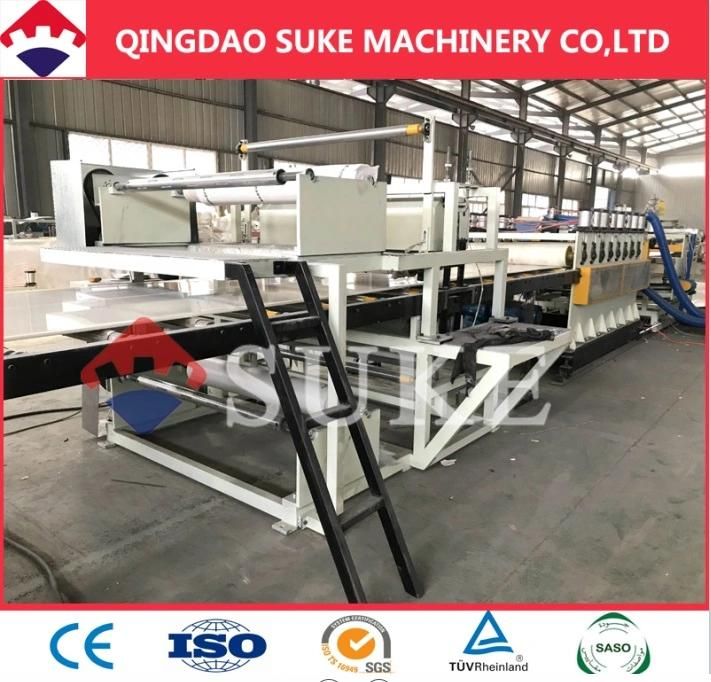

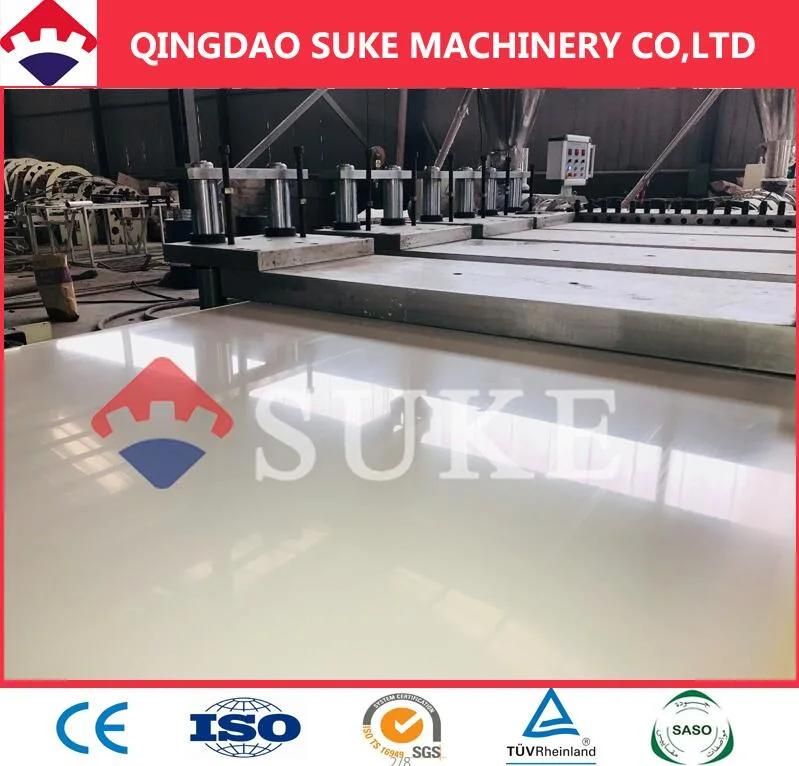

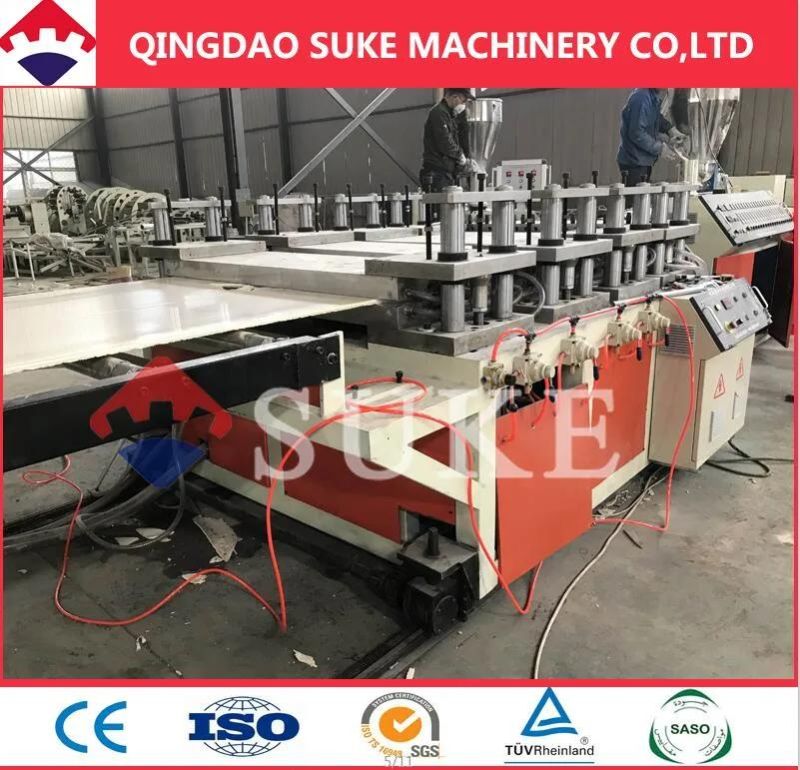

3,Vacuum calibrating and forming table
Max. Calibrating width: 1450mm
Calibrating table length: 2000mm
Vacuum pump power: 5.5kw*2 units
Max. Exhausting volume: 80m3/min
Water pump power: 4kw

4,Cooling bracket
A) Total length of roller bracket 5000mm
B) Cooling Roller
Diameter: Ø 63mm
Length: 1320mm

5,Haul-off unit
Max. Pulling width: 1450mm
Max pulling thickness: 20mm
Pair roller qty: 7 pairs
Driven motor power: 5.5kw

6,Transverse cutting bracket
Rack type synchronize pressing unit
Special design flat cutting motor: 2.2kW
With non-pole cylinder left and right moving system




Components	Amount
1,Conical double screw extruder SJSZ-80/156	1 set
2,Extruder Mould	1 set
3,Vacuum calibrating and forming table	1 set
4,ZS-1450 Cooling bracket	1 set
5,Haul-off unit	1 set
6, Transverse cutting bracket	1 set
7, Dropper for the finished product	1 set
8, Control system	1 set
