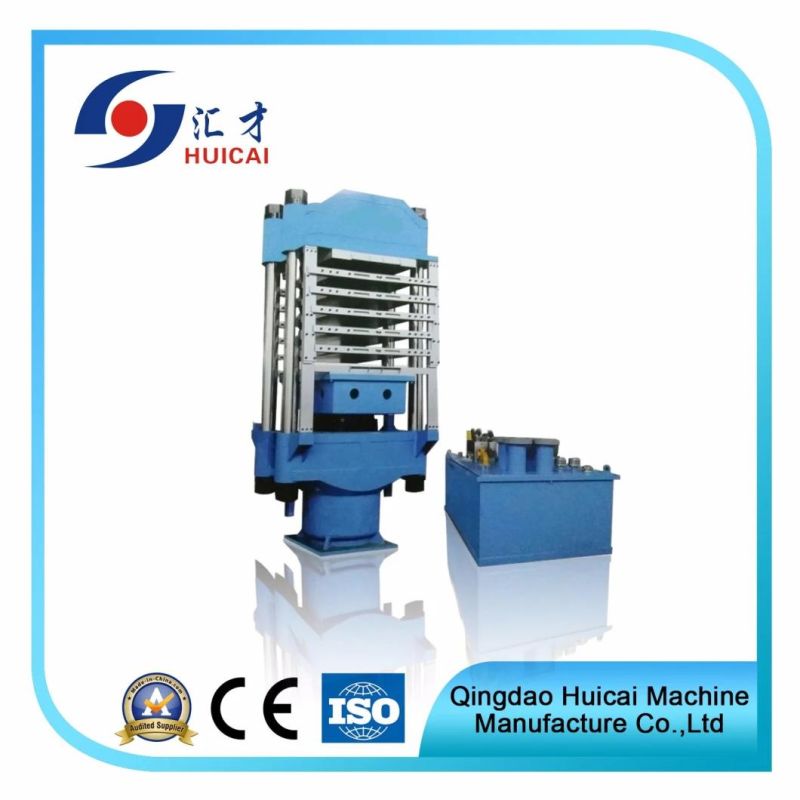

EVA Foaming Machine
Wenzhou Meters Int'l Trade Co., Ltd.Base Info
Description
Basic Info.
Model NO. XLBQ Color Green Type of General Rubber Machinery Material Processing Machine Type of Tire Machinery Rubber & Plastic Foaming Press Weight <50 Tons Power 10~100kw Voltage 380V Customized Customized Warranty 1 Year Transport Package Wooden Case or as The Requirement Specification XLQ Trademark HUICAI Origin Qingdao. China HS Code 8477800000 Production Capacity 200 Sets/MonthProduct Description

Why choose our this machine?
1. High speed open/close mold, high production efficiency, protect mold.
2. Adopt new sealing material, excellent seal and long life.
3. Matching avanced oil way, reduce energy consumption.
4. Its structure is simpleand application is wide. It is easy to be operated.


Type | XLBQ(column)1200*1200*4 | XLBQ(column)1400*1500*6 | XLBQ(column)1500*1500*6 |
Total pressure(MN) | 5.0 | 8.0 | 10.0 |
Plate size(mm) | 1200*1200 | 1400*1500 | 1500*1500 |
Plate clearance(mm) | 150 | 150 | 150 |
Piston stroke(mm) | 500 | 800 | 150 |
Plate pressure(Mpa) | 3.4 | 3.8 | 4.5 |
Main motor power(Kw) | 18.5 | 26 | 33 |
Overall dimension(L*W*H)(mm) | 2400*21003200 | 2650*2400*3600 | 2750*2400*3600 |
Weight(KG) | 22000 | 38000 | 48000 |
