• Model NO.：GS-3015
• Laser Technology：Laser Fusion Cutting
• Usage：Laser Cutting
• Cutting Speed：13800mm,Min
• Graphic Format Supported：Ai, BMP, Dst, Dwg, Dxf, Dxp, Las, Plt
• Laser Type：Fiber Laser
• Transport Package：Packaged by Plywood
• Specification：CE, ISO, SGS, FDA, Bureau
• Trademark：GLORYSTAR
• Origin：Dongguan, China
• HS Code：8456100090
• Production Capacity：1000sets,Year

Basic Info.

Model NO. GS-3015 Laser Technology Laser Fusion Cutting Usage Laser Cutting Cutting Speed 13800mm/Min Graphic Format Supported Ai, BMP, Dst, Dwg, Dxf, Dxp, Las, Plt Laser Type Fiber Laser Transport Package Packaged by Plywood Specification CE, ISO, SGS, FDA, Bureau Trademark GLORYSTAR Origin Dongguan, China HS Code 8456100090 Production Capacity 1000sets/Year

Product Description

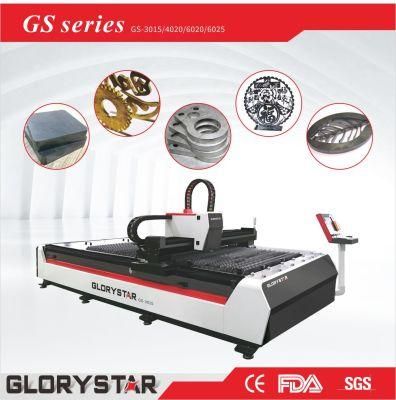

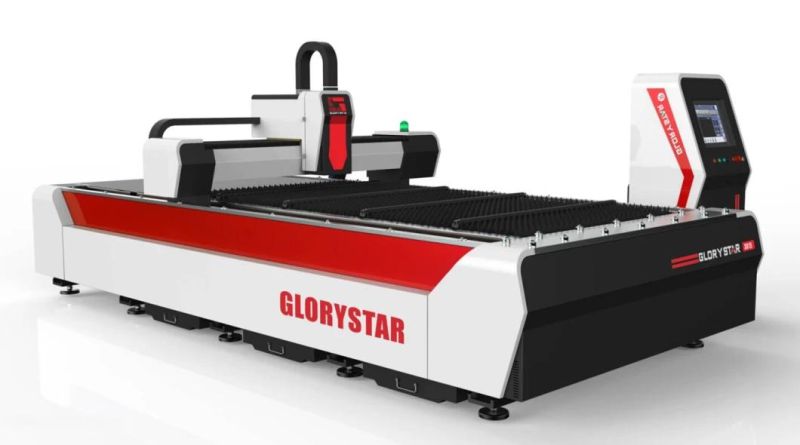

CNC Fiber Laser Cutter Machine ,Cutting Machine ,for stainless steel etc metal materials


Fiber Laser Cutting Machine Characters
High Speed----- 1mm Stainless Steel Cutting Speeds Up to 22m/min, 0.5mm Stainless Steel Cutting Speeds Up to 40m/min.
High Performance------ Mirror Stainless Steel, Aluminum Copper Materials, High Anti-normal Cutting.
High Efficiency------ High Cutting Speed Low Running Costs Low Gas Consumption No Working Gas Laser.
Low Power------ Consumption Energy Saving, Low Power Consumption, Gas Cutting Machine is a traditional 20%-30%.
Low Maintenance ------ Optical Fiber Transmission, Non-reflective Lenses Without Optical Adjustment.

CNC Fiber Laser Cutting Features:
GLORYSTAR LASER sheet metal laser cutting systems adopts the most sophisticated Germany IPG laser and double driver, combining Gantry CNC machine designed by our company and high strength welding body, after high temperature annealing and precision machining by large CNC milling machine. It has good rigidity and stability with precision ball screws, linear guide drive run. It is mainly for cutting sheet metal below 6mm in high speed and high precision. Fiber laser has a series of advantages, such as high beam quality, high brightness, high conversion rates, maintenance-free, stable and reliable operation of low cost and small size, etc. Air-assisted cutting is the most advanced level of laser cutting, which is particularly suitable for stainless steel, alloy steel, copper, titanium and other metal materials' precision cutting. It is widely used in metal products, hardware, precision machinery, auto parts, glasses, jewelry, nameplate, electronics, toys, advertising and other industries.

Based on imported laser head, optical systems, stepper motor, guide rail, lead screw, advanced auto-focus system, precise welding steel frame structure, 600º C heat treatment, 24 hrs furnace cooling, 8 meters gantry milling finish, FOL series metal laser cutting machine performs with long lifetime, high cutting precision, stability, flexibility.

CNC Fiber Laser Cutting Application Industrial:
Kitchenware, Saw Blade, Mechanical Parts, Electrical Equipment Components, Electric Cabinet, Textile Machinery, Billboard, Automobile, Cooking Utensil, Hardware, Crafts, Spectacle Frame, Earrings And Rings, Advertising Words And Letters, Adornment, Subway Parts, Household Appliances, Electrical Appliance, Precision Components
Tools, Gifts and Crafts, Ultra-fine Contours, Filigree Structural Components, Gearing Components
Reamer, Mobile Phone Housing, Aviation

Applicable materials:
Stainless steel, carbon steel, mild steel, alloy steel, copper, brass, aluminum sheet, titanium sheet and pipe, especially good at processing various high hard and brittle alloy materials.


Technical Data:
GS is the most popular mode of fiber laser cutting machine. more than 2000sets of GS fiber laser cutting machines are working in the market. GS enjoys high reputation in the market by its high quality and price ration as well as high stability and efficiency. GS enjoy the honour of well-known product in China as well some overseas market. Now we have GS third generation to appreciate the customers.

Technical parameters

Model	GS-3015	GS-4015	GS-4020	GS-6015	GS-6020
Laser Power (W)	1000-3000 (Optional)	1000-4000 (Optional)	1000-4000 (Optional)	1000-4000 (Optional)	1000-4000 (Optional)
Working Area (MM)	3000*1500	4000*1500	4000*2000	6000*1500	6000*2000
Total Power Consumption (KW)	12<30	12<30	12<30	12<30	12<30
Dimensions (MM)	4800*2300*2000	6000*2700*2000	6000*3200*2000	8100*2300*2000	8300*3200*2000
Weight (T)	5	5.5	6	7.2	8
