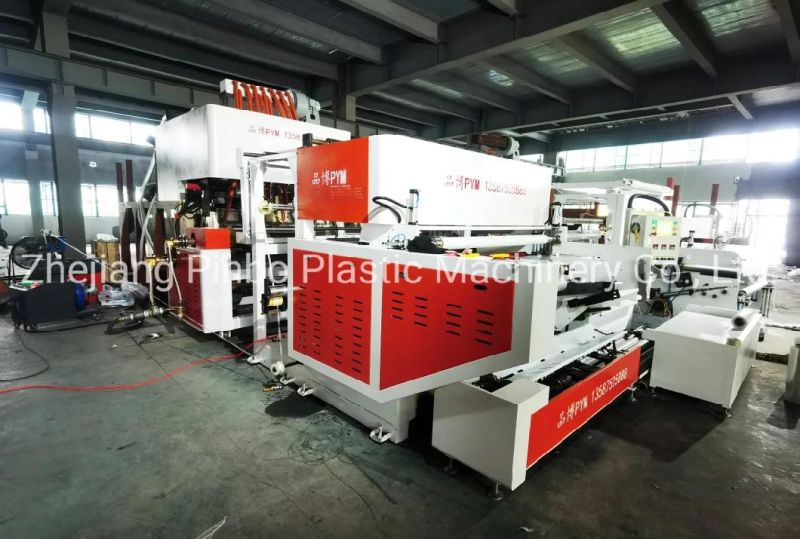

1500mm High Speed Multi Layer Plastic Stretch Film Cast Machine Group Production Line

Wenzhou Handpack Machinery Co., Ltd.

Base Info

Description

Model No.PYM-65/90/65*1850Screw Diameter65/90/65mmScrew L/D30:1Screw Speed50-150rpmLayer StructureABC/ACBCAFilm materialPEFilm Width1500mm/3*500mmFilm Thickness0.01-0.05mmElectric power supplyCustomized, Standard is 380V/50HZ/3PTotal Power130KWCapacity180-300Kg/hTotal weight13.5TDimension13.5M*3.5M*3.5MProduct Advantages
  • Easy operating, long life, energy saving
  • Stable and reasonable extrusion
  • High quality T-die for excellent film evenness and stability
  • Enhanced cooling system
    (adopts 720 mm diameter primary cooling roller and 370 mm diameter secondary cooling roller)
  • Advanced oscillation (swing) system
  • Highest winding speed (up to 200m/min) among similar stretch film machines
  • High production capacity: up to 350 kgs/h at film thickness 23 microns and 150 m/min
  • Optional full automatic thickness gauge

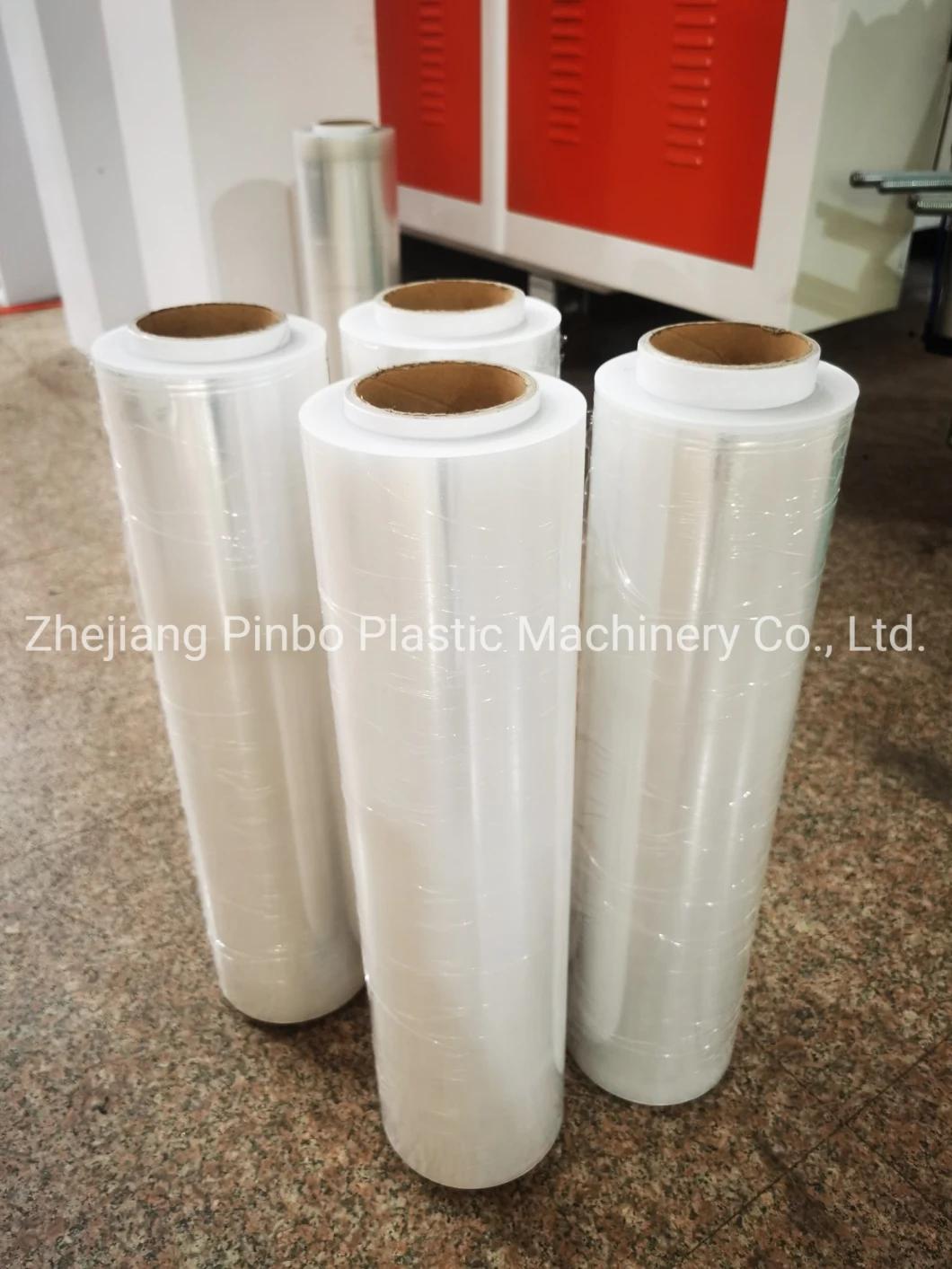

  • Excellent stretch film rolls quality for both hand use rolls and stretch use rolls

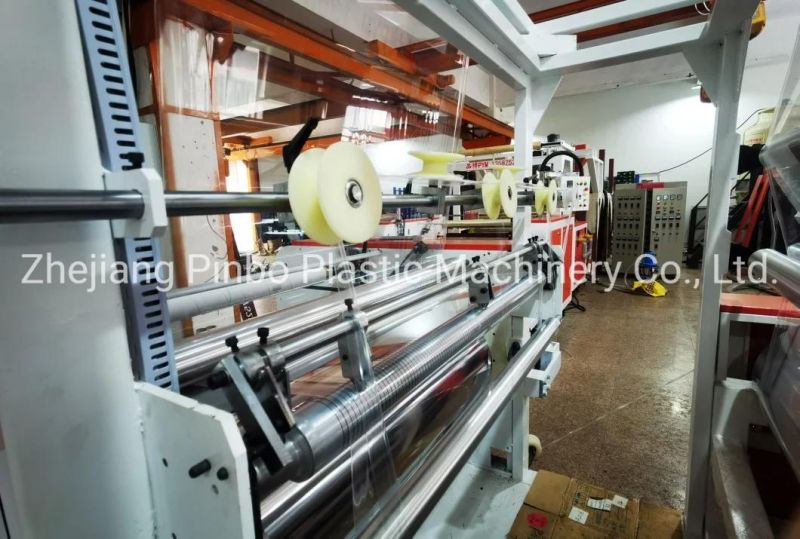

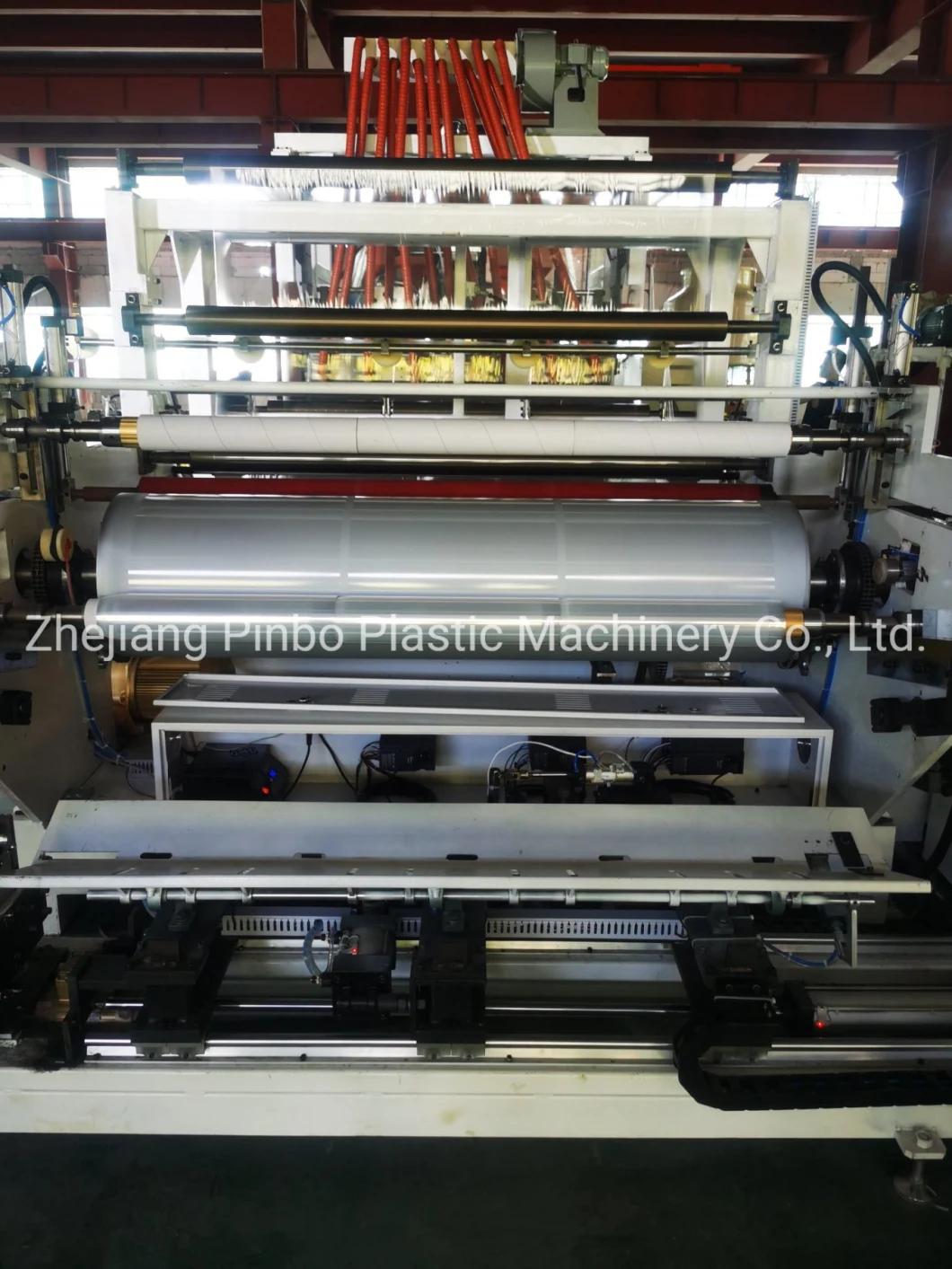

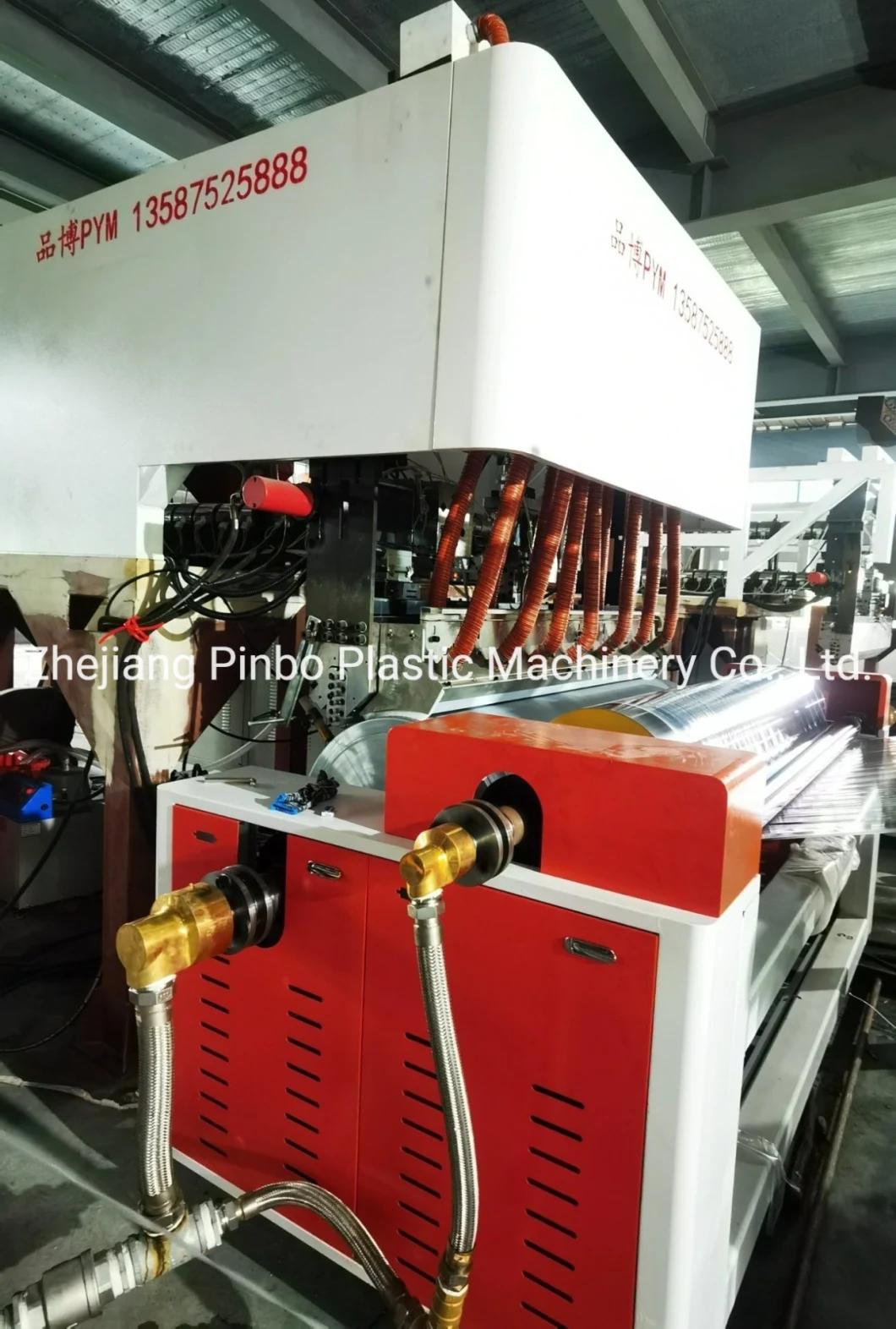

Machine details:
1500mm High Speed Multi Layer Plastic Stretch Film Cast Machine Group Production Line1500mm High Speed Multi Layer Plastic Stretch Film Cast Machine Group Production Line
1500mm High Speed Multi Layer Plastic Stretch Film Cast Machine Group Production Line
1500mm High Speed Multi Layer Plastic Stretch Film Cast Machine Group Production Line
1500mm High Speed Multi Layer Plastic Stretch Film Cast Machine Group Production Line

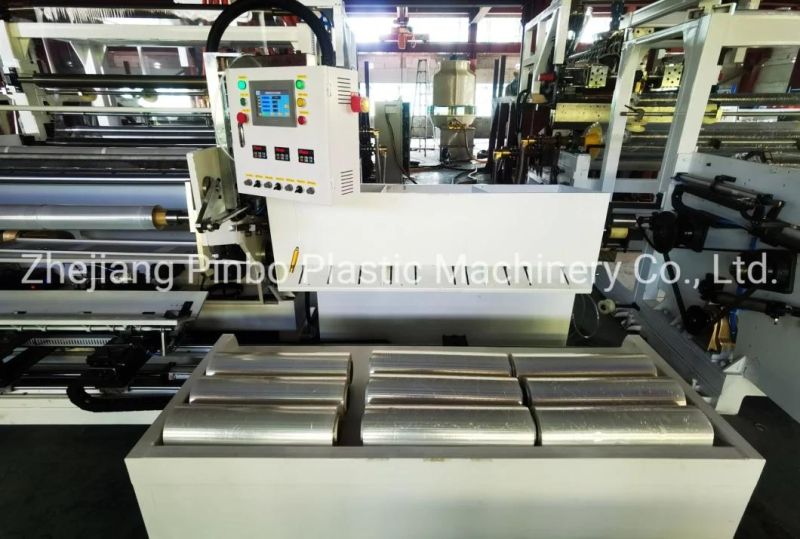

Option: (automatic roll discharge & auto paper core loading)
1500mm High Speed Multi Layer Plastic Stretch Film Cast Machine Group Production Line1500mm High Speed Multi Layer Plastic Stretch Film Cast Machine Group Production Line1500mm High Speed Multi Layer Plastic Stretch Film Cast Machine Group Production Line1500mm High Speed Multi Layer Plastic Stretch Film Cast Machine Group Production Line1500mm High Speed Multi Layer Plastic Stretch Film Cast Machine Group Production Line1500mm High Speed Multi Layer Plastic Stretch Film Cast Machine Group Production Line
