Basic Info.

Model NO. SJSZ Engagement System Intermeshing Screw Channel Structure Deep Screw Exhaust Exhaust Automation Automatic Computerized Computerized Processing Material PVC, WPC, EVA Application Produce PVC Pipes, Profiles, Granules, Board Screw Type Conic Twin Screw Feeding Mothed Dosing Feeding System Low Pressure Electrics Schneider Motor Siemens Inverter ABB Transport Package Woodbox with Film Wrapped Specification 16-800mm Trademark Faygo Origin Jiangsu Suzhou HS Code 84778000 Production Capacity 100sets Per Month

Product Description

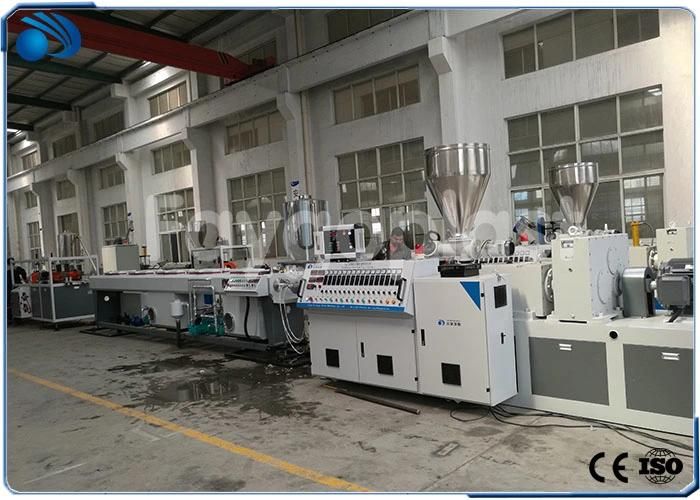

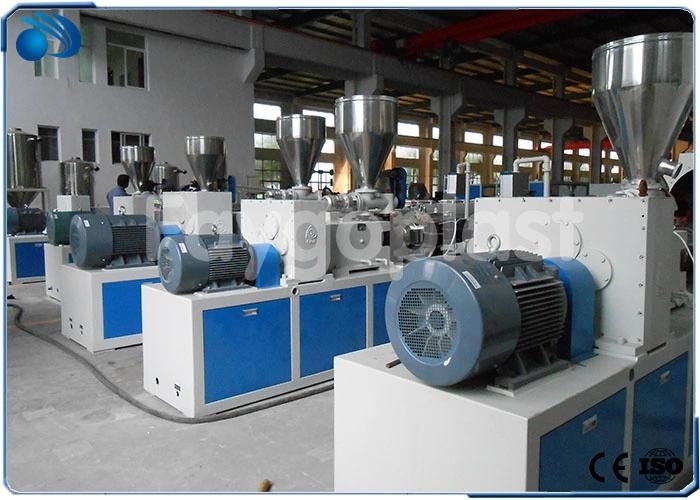

conic twin screw extruder for PVC compound



It is special equipment designed for various kinds of PVC powder or WPC extrusion. With different mould and downstream equipments, this PVC pipe extruder machine can produce PVC pipes, profiles, panel, board, granules and so on.

Standard PVC pipe extruder machine is conic twin screw extruder, and it adopt electrical heating with air force cooling, which can easy control. The temperature within±1°c. Main motor, gearbox, screws are in the same centre line. The screw and barrel contains oil cooling unit, which can make the temperature control procise.

The screw&barrel is from Zhoushan, gearbox is made by Jiangyin gearbox company, motor is Siemens Berde, inverter adopt ABB. All of our PVC pipe extruder machine will be checked and tested at the workshop to avoid any necessary trouble.



Technical data of PVC pipe extruder

Model	SJSZ51/105	SJSZ55/100	SJSZ65/132	SJSZ80/156	SJSZ92/188
Screw diameter(mm)	51/105	55/100	65/132	80/156	92/188
Quantity of screw	2	2	2	2	2
Max. Rotation speed of screw(r/min)	40	38	38	37	36
Effective length of screw(mm)	1200	1200	1440	1800	2500
Main motor power(kw)	18.5	22	37	55/75	90/110
Productuion capacity(kg/h)	100	150	250	400	750
Center height(mm)	1000	1000	1000	1100	1200
Dimensions(L*W*H)mm	3360*1290*2127	3620*1050*2157	3715*1520*2450	4750*1550*2460	6725*1550*2814
