Basic Info.

Model NO. SJ120-130 Certification CE Brand Name Pym Vlotage 380V Application Plastic Recycling Quality Control Test Before Delivery Delivery 25 Days Pimension(L*W*H) 4000*1500*1800 Weight 3200kg Power 45kw Transport Package Wooden Box Packaging Specification CE SGS BV TUV Trademark PYM Origin Zhejiang Province Wenzhou City HS Code 847790000 Production Capacity 135kg/Hr

Product Description

Production description :

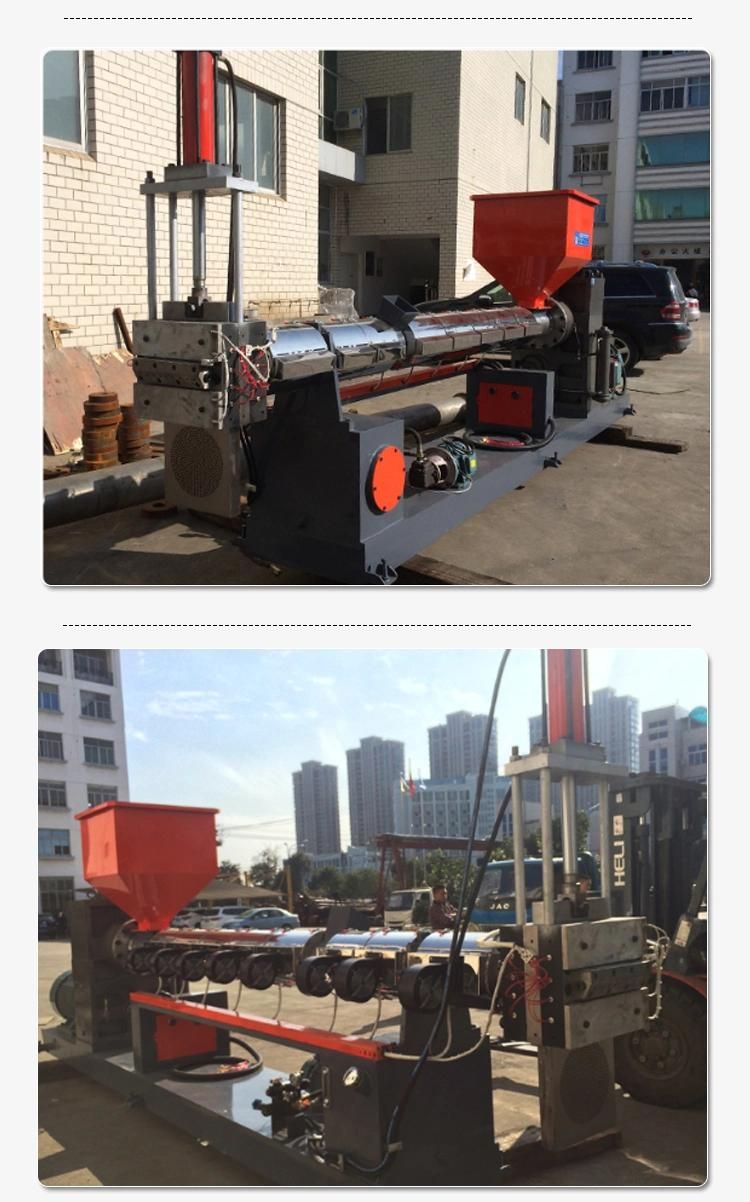

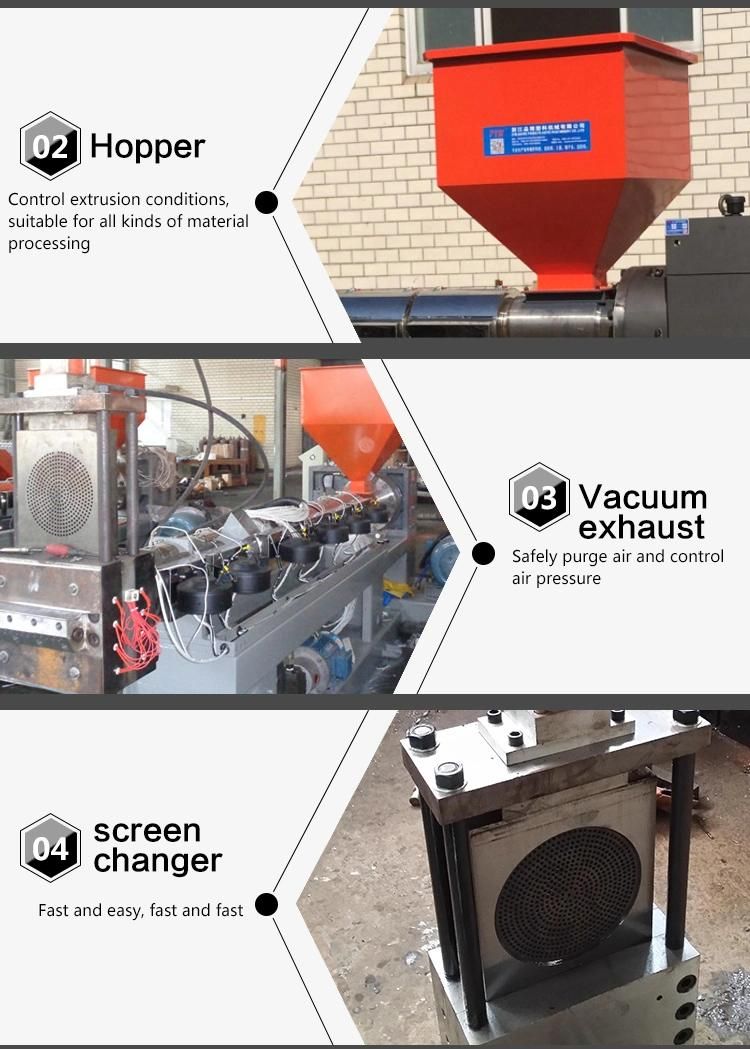

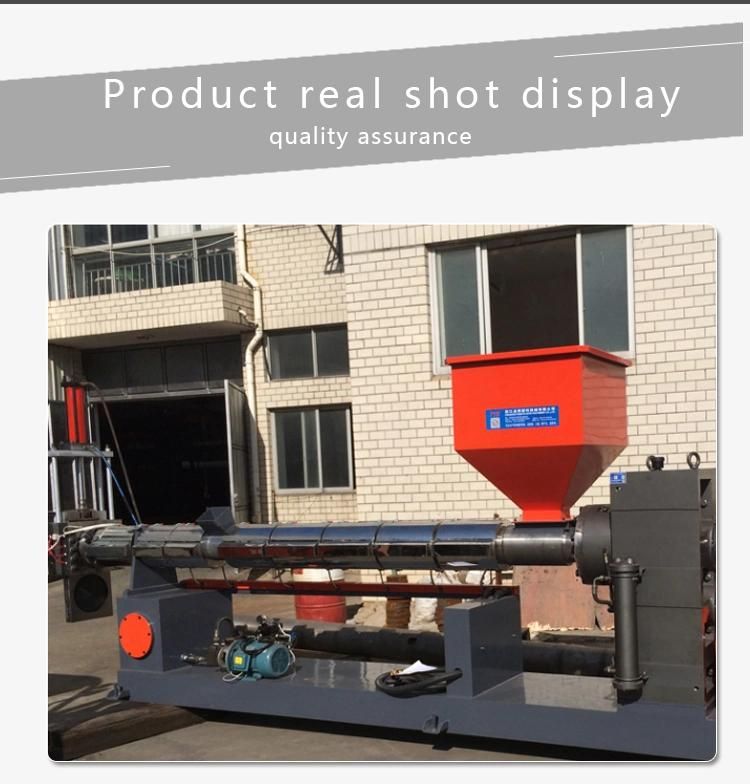

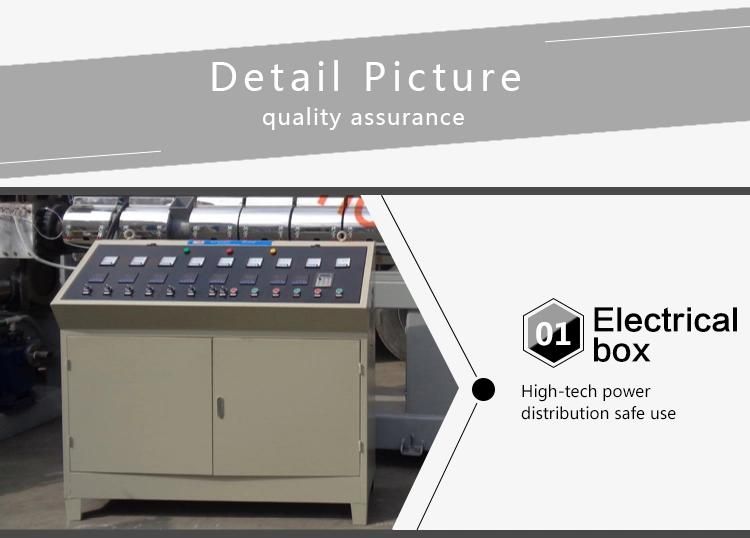

This machine is suitable for regeneration and granulation of waste plastics, as HDPE, LDPE and PP, etc. Its equipped with quick motor-operated filter-screen-replacing unit and automatic temperature control. The granulating crusher uses adjustable speed motor, pelleting with and extruding machine at the same discharging speed synchronistically. The unit is easy to operate, with a high output, steady performance and favorable economic benefit.





Process Waste Plastic Recycling Machine
Belt conveyor--- label remover--- select table--- belt conveyor---plastic crusher---friction washer---floating washing tank---screw conveyor --- how washer--- screw conveyor --- friction washer---floating washing tank--- floating washing tank ---dewatering machine---dryer---label separator--- silo.

Specifications:

Model	SJ-B90	SJ-B100	SJ-B110	SJ-B120
Type Diameter of Screw Stem	φ90	φ100	φ110	φ120
Major Diameter Ratio of Screw Stem	L/D 20:1 -22:1	L/D 20:1 -22:1	L/D 20:1 -22:1	L/D 20:1 -22:1
Rational Speed of Screw Stem	10-100r/min	10-100r/min	10-100r/min	10-100r/min
Main Motor Power	22kw	30kw	37kw	45kw
Output	68kg/h	95kg/h	120kg/h	135kg/h
Weight of overall(kg)	2600kg	2800kg	3000kg	3200kg
Cover dimensions (l×w×h) (mm)	4000×1500×1800	4000×1500×1800	4000×1500×1800	4000×1500×1800

Why choose us?
A> long time experience and history
B> long time nitriding treatment and heating treatment by itself
C>advanced Fanuk series CNC computer-controlled milling machines
D>depth hole drilling machine in 8meters length, which ensure the
Straigtnss of barrel inside.
E> CAD drawing confirmation before start making
F> Prompt after sale service
G>Land owner and registration capital 25, 000, 000RMB
H> prompt after-sale


Packaging&shipping
1. Standard packing is wooden case;
2. Delivery: By sea, by air or others, depend on you;
3. Fast and Low Cost Deliver: Long-term cooperated shipping forwarders;
4. Payment of terms: T/C, T/T, Western union, Money Gram etc.

Company profile:

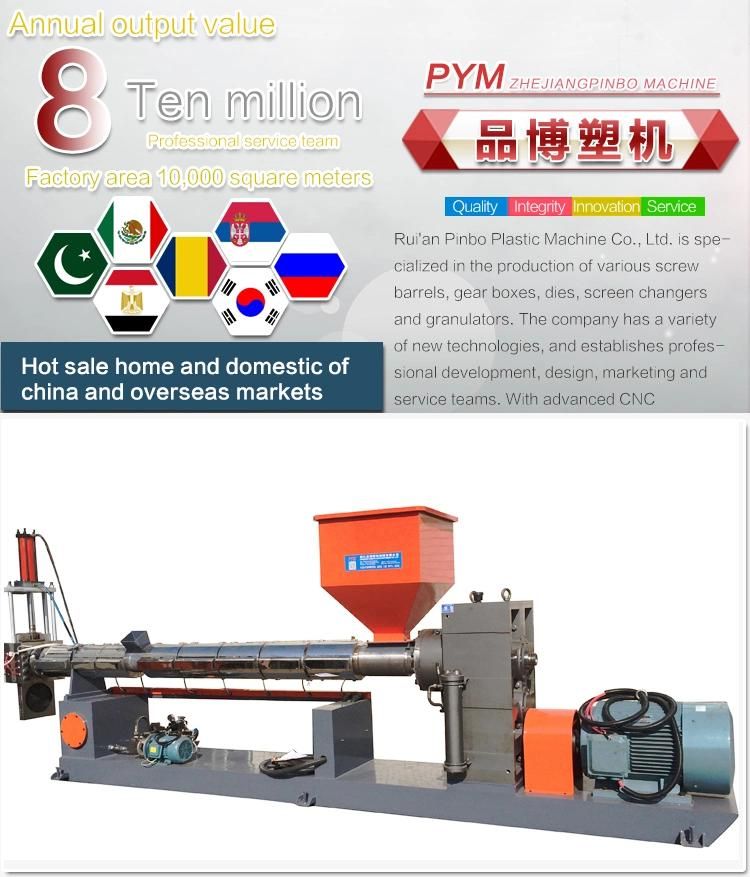

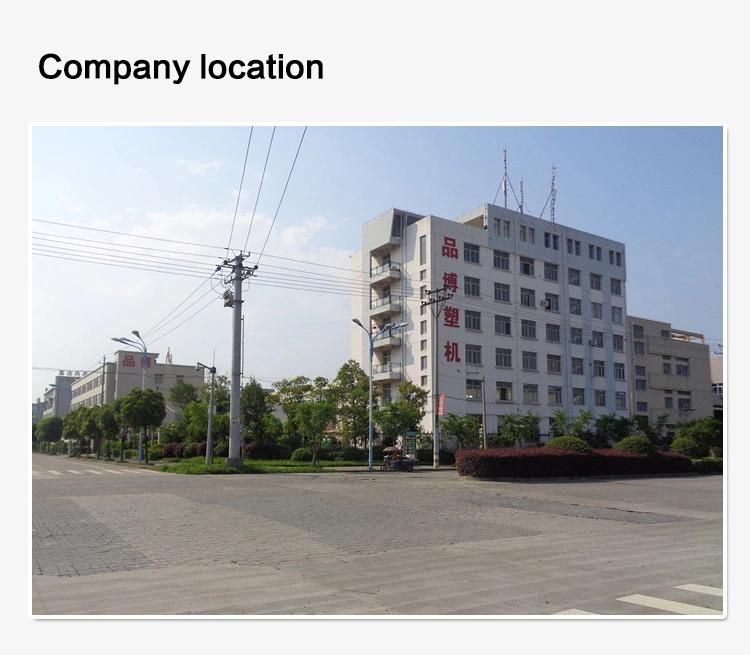

Zhejiang pinbo plastic machinery co.,ltd is located in ruian wenzhou city with brand of PYM(Former Ruian yumin machine screw co.ltd since 1988). The company is specialized in making screw barrel, gearbox zlyj series, t die, filter and extruder machine. It has become one of the largest supplier of main parts in Ruian city which is the basement of plastic machines.
