Basic Info.

Model NO. DFQ-150W Type Four-Wheel Trailer Drilling Caliber 105-203mm Diesel Engine 70HP/2200rpm Work Pressure 1.05-2.0 MPa Apply to Rock Hardness F=6-12 Movement Wheel-Trailer or Crawler or Truck Rock Hardness F=6~12 or F=6~20 Air Consumption 15~24 M3/Min Good at Soil, Sand, Granite, Marble etc Complete Set with All Accessories Usage Water Well Power Type Diesel Transport Package Container Specification 150M DTH DRILL RIG Trademark Defy Origin China Henan Production Capacity 200 Sets Per Month

Product Description

DFQ-150W 150m rock drill machine tool, drilling rig drilling machine

Application:
DFQ-150W drilling rig is mainly used for geological general investigation and exploration,road and

 tall building foundation exploration, kinds of hole in concrete structure, river levees, subgrade grouting

 hole ,drilling and direct grouting, civil wells and  earth temperature central air-conditioner,etc

Technical Parameter

No.	Item	Specification
1	Drilling caliber	Φ105-203mm
2	Max. drilling depth	150m
3	Diesel engine	70HP/2200rpm
4	Work pressure	1.05-2.0 MPa
5	Gas consumption	10~24 m³/min
6	Apply to rock hardness	f=6-12
7	Gradeability	25°
8	Walking speed	0~2.0 Km/h
9	Propulsion	5.0 tonf
10	Speed of spindle	Fast  105 rpm
		Slow  68 rpm
11	Rotary torque	2200N.m

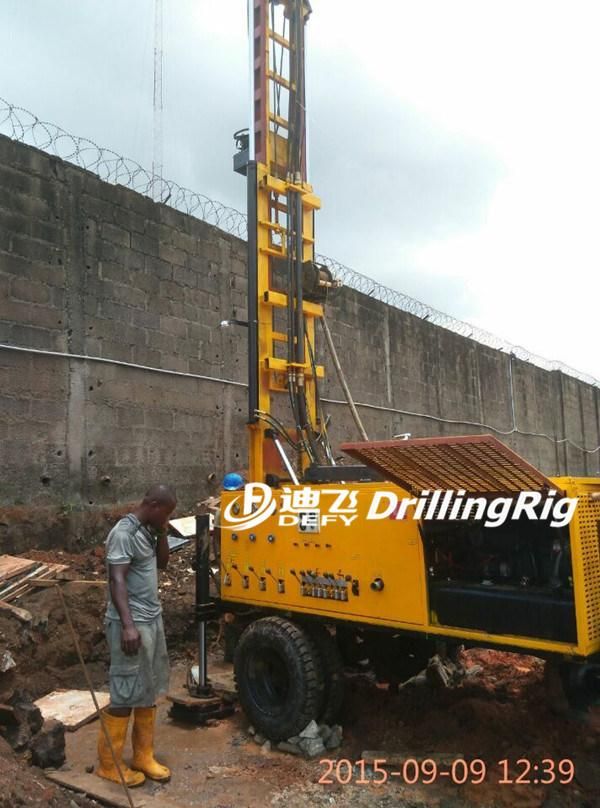

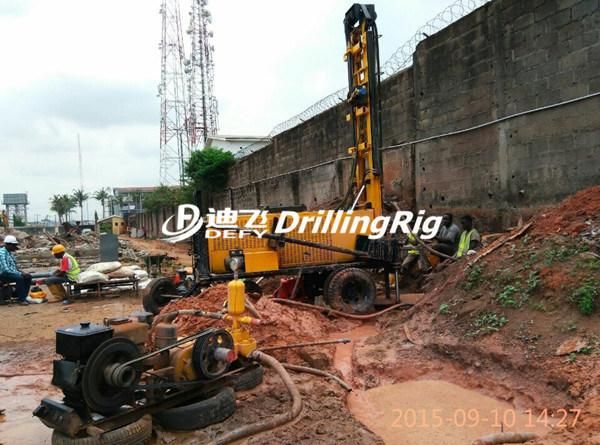

DFQ-150W Drilling rig Working site in Nigeria:
