Model

YG-X180

The weight (T)

4.5

Hole diameter(mm)

140-254

Hole depth (m)

180

Once-time advance length(m)

3.4

Walking speed (km/h)

2.5

Climbing angles

30

Equipped capacitor(kw)

55

Working pressure (Mpa)

1.7-2.5

Air consumption(m³/min)

17-31

Drill pipe diameter (mm)

76  89

Drill pipe length (m)

1.5  2.0  3.0

Rig lifting force (T)

15

Swing speed (rpm)

45-65

Swing torque(N.m)

3200-4600

Dimension (mm)

3800*1500*2200

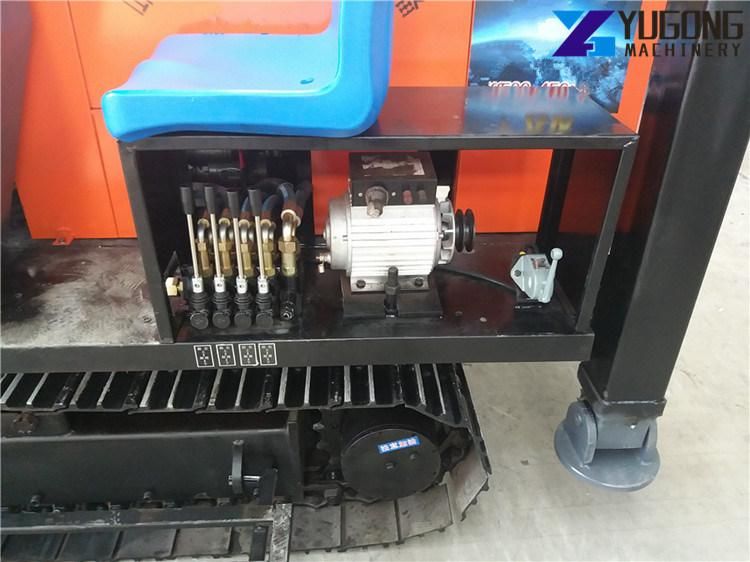

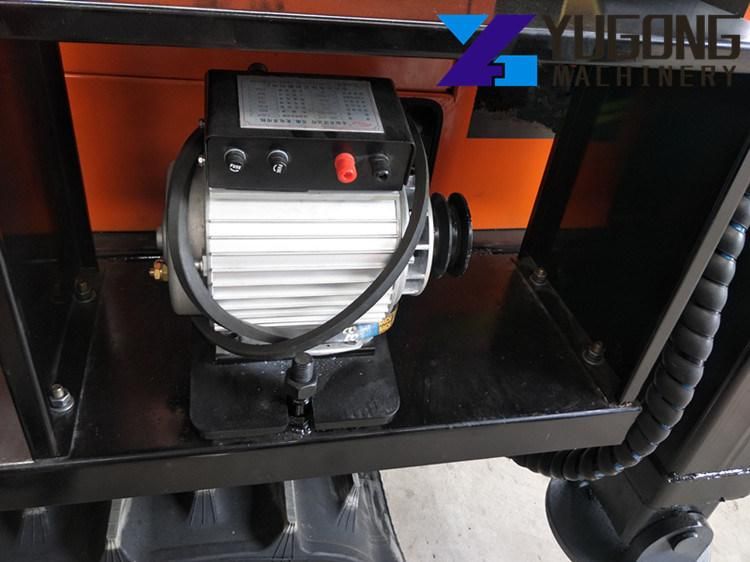

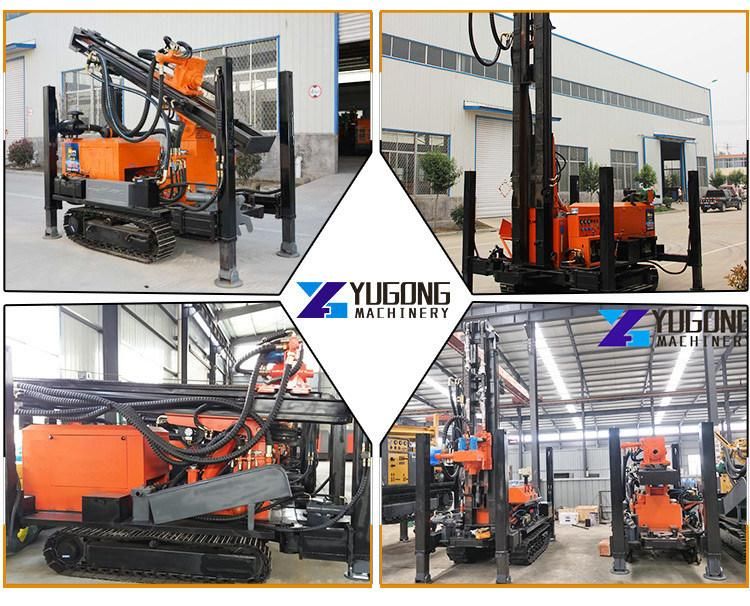

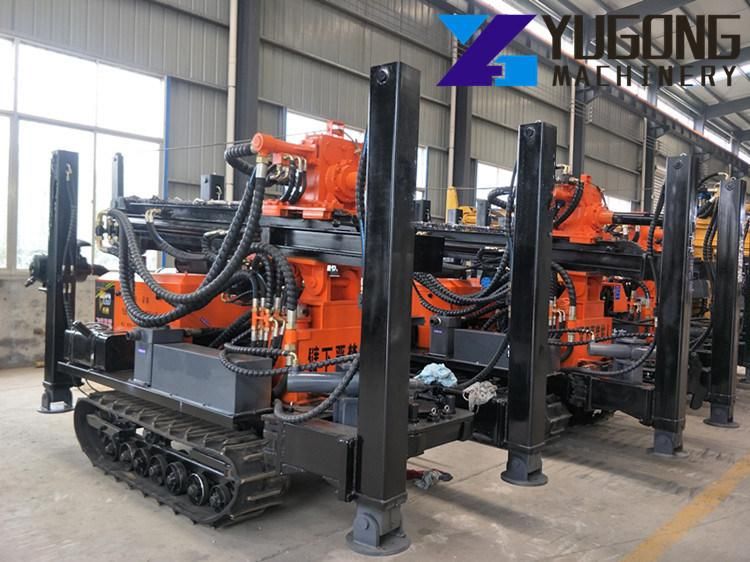

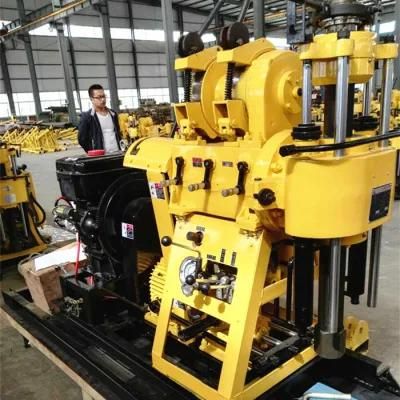

Product details :

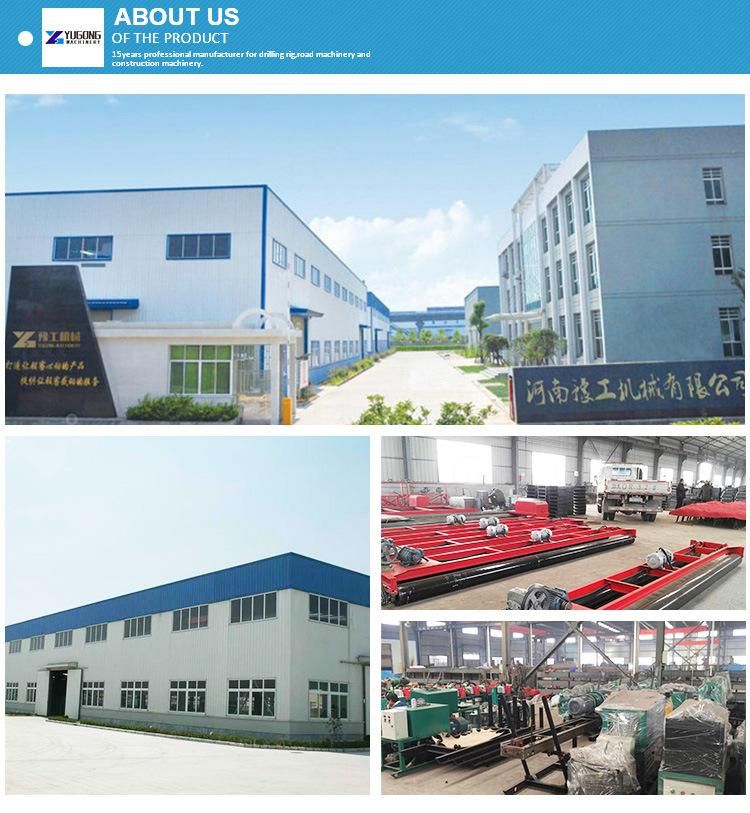

Our factory :

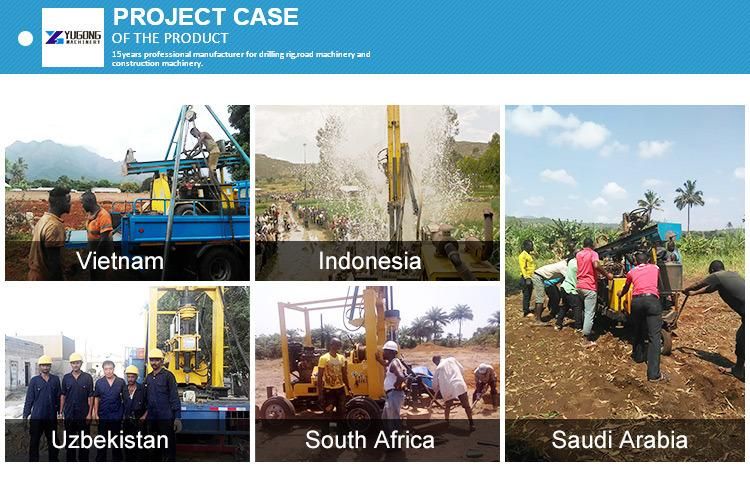

Project case:

About us :

Henan Yugong Machinery Co., Ltd, located in Zhengzhou,Henan province,China.Its a large engineering machinery manufacturing enterprise which focus on research and development, production and sale kinds of drilling rigs.Our drilling rigs are widely applicable for water well, farm irrigation, geological prospecting, small pile foundation, geothermal air-conditioner and so on.

We insist on the strategy of technology research and development. Technical design, material purchasing, precised manufacturing and strict quality inspection are all processed according to the ISO9001 standard. Sincerely hope we can establish close,trustworthy and long term relationship with each customers. Any interests and needs about our Drilling rigs,please contact us.

Our team :
