• Model NO.：WSHG-1
• Key Wrod 2：Fruit Dryer Machine
• Key Word 3：Sea Food Dryer Machine
• Usage：Fruit and Vegetable Processing Machine
• Transport Package：Export Wooden Cases
• Specification：ce co ccc
• Trademark：GMEC
• Origin：Zhengzhou
• HS Code：8474900000
• Production Capacity：50kg,Batch

Basic Info.

Model NO. WSHG-1 Key Wrod 2 Fruit Dryer Machine Key Word 3 Sea Food Dryer Machine Usage Fruit and Vegetable Processing Machine Transport Package Export Wooden Cases Specification ce co ccc Trademark GMEC Origin Zhengzhou HS Code 8474900000 Production Capacity 50kg/Batch

Product Description

China Vegetable Fruit Fish Sea Food Drying Dryer Machine

Product Description
This is hot air drying machine, which adopts noise elimination and thermal stable axial flow fan and automatic temperature control system. The entire circulation system is fully enclosed to make the drying efficiency of the tray dryer increase from 3-7% of the traditional tray dryer to 35-45%, the highest heat efficiency can be up to 50%.


Specification


Model	Capacity	Power	Trolley quantity	Tray quantity	Size
WSHG-1	50kg/batch	9kw	1 unit	24 pcs	1.55*0.8*2.2m
WSHG-2	100kg/batch	12kw	2 units	48 pcs	2.1*1.1*2.3m
WSHG-4	200kg/batch	18kw	4 units	96 pcs	2.1*2*2.3m
WSHG-6	300kg/batch	22kw	6 units	144 pcs	2.6*2.1*2.3m
WSHG-8	400kg/batch	30kw	8 units	192 pcs	4.2*2.3*2.62m

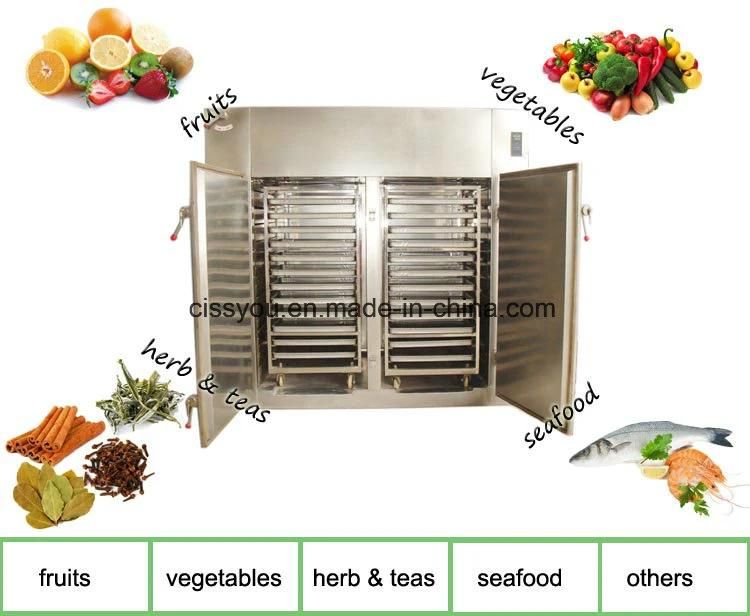

Application


• This drying machine is suitable for material and product hot solidification and dry or dehydrating dewatering in the food processing industry, fruit and vegetable processing industry, agricultural farming and sideline industry, seafood processing industry, medicinal pharmaceutical industry, chemical industry, aquatic product, light industries, heavy industries and other industries.
• The raw material can be: powder, particle, crude drug, herbal medicine of Chinese traditional medicine,plaster, drinking agent, pill, packing bottle, pigment, dyestuff, de-watering vegetable, dried fruit slices, sausage, plastic, resin, electric component, baking varnish and etc.

Dried fruits: apple, lemon, berry, banana, plantain chips, kiwi, figs, pear, peach, pineapple, mango, jujube, plums.
Dried vegetable:mushroom, pepper, carrot, cabbage, red chilli, onion, tomato, potato, sweet potato, garlic, ginger, etc.
Dried nuts:cashew nuts, walnuts, peanuts, etc.
Dried seafood:sea cucumber, fish, sardines, shrimp, etc.
Dried beans: Cocoa beans, black beans, red beans, peas, etc.



Detailed Images

There are two types of 100kg drying machine

• Carbon steel outside and 304 stainless steel inside
• Fully stainless steel both outside and inside

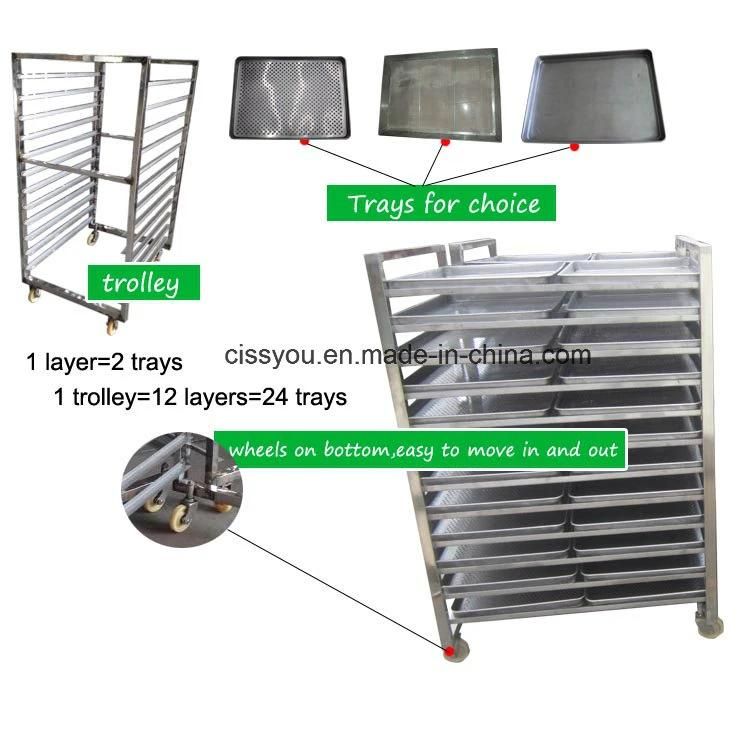

Below are the stainless steel trolley and trays inside the machine

• There are wheels on the bottom of the trolleys so that people can move it in and out easily.
• There are holes on the trays to increase the hot air contact area. We can customize different trays based on customers' need.

Temperature controller and axial flow fan

• Customers can set the drying temperature according to different materials' requirement. All the instructions are marked clearly in the controller.

FAQ

1. What is the heat source available?

Heat source: electricity, steam, gas, steam+electricity

2. The temperature range can be set?

Operation temperature: The steam heating temperature is from50ºC -150ºC. Electricity heating temperature is from 50ºC-350ºC. Customer should steam boiler or furnace if choose steam heating or gas heating.

3. Can the voltage be customized based on clients' need?

Voltage can be customized. So please kindly confirm _phase, _V, _Hz when send inquiry.


Finished Products

The drying time of this drying machine will vary by different materials, moisture content, sugar content, local climate, etc.
1. Fruits can be dried whole, or as slices, such as mango, papaya, kiwi, etc. Alternatively they can be chopped after drying, made into pastes, or concentrated juices.
2. Dried fruit is widely used by the confectionery, baking and sweets industries.
3. Food manufacturing plants use dried fruit in various sauces, soups, marinades, puddings, etc.

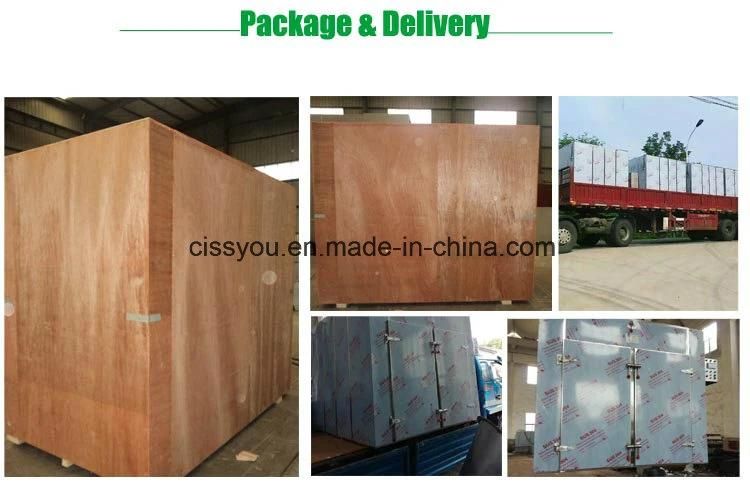

Package & Delivery

1. This drying machine will be packaged by standard wooden case
2. It will be delivered within 15 days after receiving the deposit.
