• Model NO.：SMBA
• Transport Package：Carton
• Specification：450x10x60mm
• Trademark：COREDIAM
• Origin：China
• HS Code：82023910
• Production Capacity：1000PCS,Month

Basic Info.

Model NO. SMBA Transport Package Carton Specification 450x10x60mm Trademark COREDIAM Origin China HS Code 82023910 Production Capacity 1000PCS/Month

Product Description

1. Introduction

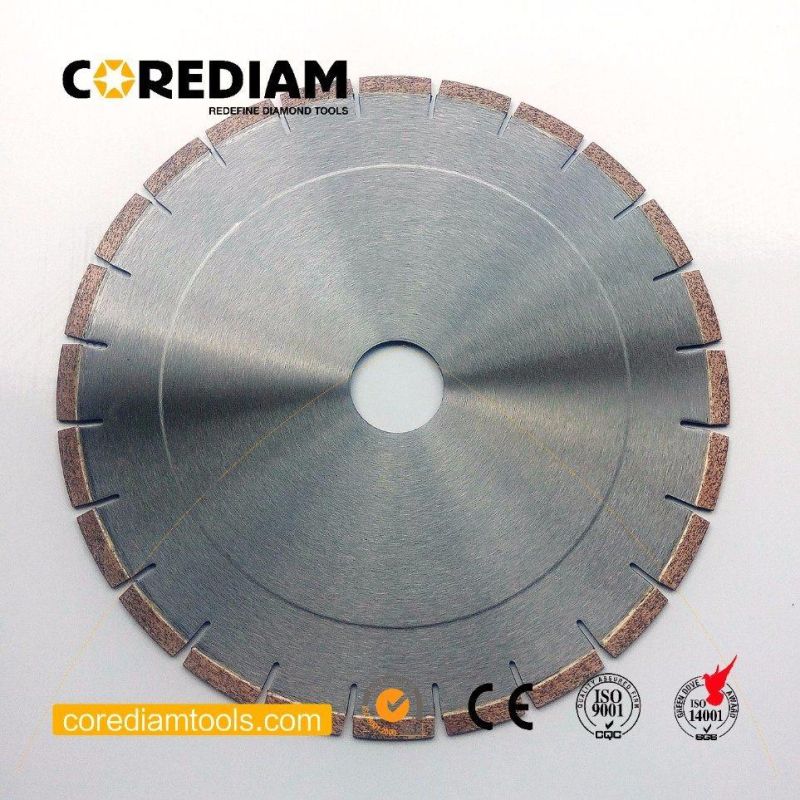

This type blade is designed for marble, the diameter is 450mm, it has narrow U slots. The narrow U slots can make fast and smooth cutting. It can be widely applicated in wet cutting marble and other masonry materials with superior efficiency. The quality level is premium. The Brazed cutting blade for marble has a long lifespan. The stone blade has a good cutting result: slippy cutting, flat surface, and even size. Stable cutting, narrow cutting gap, stone waste reduction.

2.Cutting materials & equipment
Cutting materials: marble and other stone.
Install equipment: stone saw, tile saw, Masonry saw



3. Features:
Manufacturer technology: brazed
Advantage: The narrow U slots, the segments are not easy to fall off during work. At the same time, granite cutting disc has a long lifespan. Good cutting result: smooth cutting, flat surface, and even size. Stable cutting, narrow cutting gap, stone waste reduction.

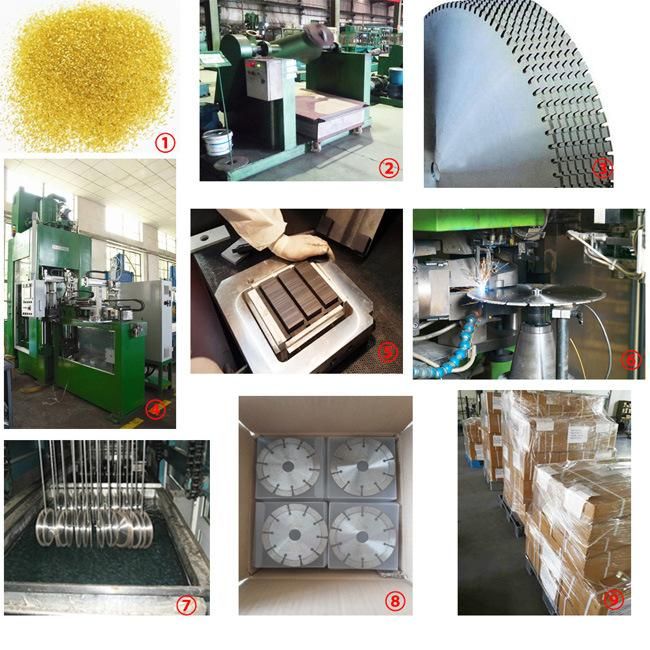

4.Brazed marble blade production process.
Raw material→ powder mixing → Steel core process → cold press → segment sintering → welding → surface treatment → package → dispatch



Size data are as below:


Item No.	Diameter	Segment Height	Segment Width	Arbor
SMBA25010	250mm	10mm	3.0mm	60mm
SMBA30010	300mm	10mm	3.2mm	60mm
SMBA35010	350mm	10mm	3.2mm	60mm
SMBA40010	400mm	10mm	3.4mm	60mm
SMBA45010	450mm	10mm	3.6mm	60mm
SMBA50010	500mm	10mm	3.6mm	60mm
SMBA60010	600mm	10mm	4.0mm	60mm
