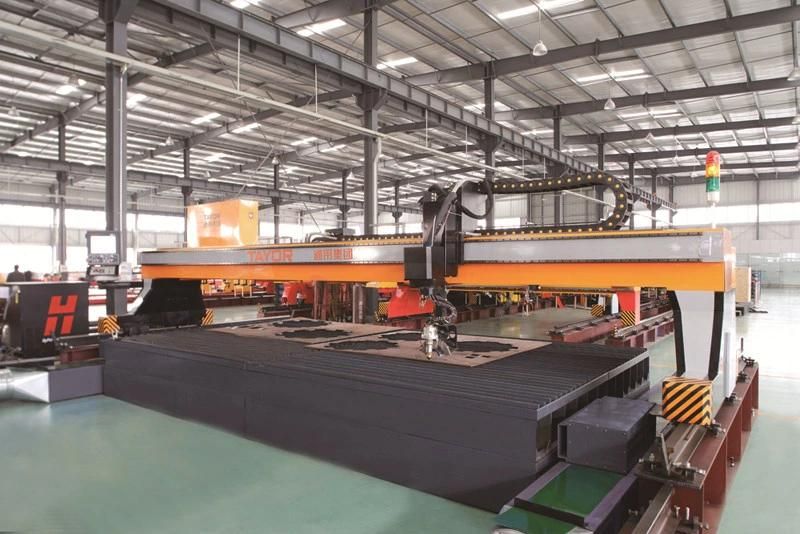

3X8meter 5 Axis CNC Plasma Bevel Cutting Machine with Hypertherm Hpr260xd Cutting System
Wenzhou Talent Packing Co., Ltd.- Type:Plasma
- Control Mode:CNC
- Cutting Mode:Plasma
- Torch Type:Fire-Suction
- Cutting Nozzle Shape:Quincuncial
- Cutting Width:3500mm
Base Info
- Model NO.:CNCBSG4000
- Cutting Thickness:1-50mm
- Cutting Speed:0-5000mm,Min
- Voltage:AC380V
- Gas:Oxygen
- Transport Package:Wooden Case
- Specification:CNCBSG4000
- Trademark:TAYOR
- Origin:China
- HS Code:8456901000
- Production Capacity:500 Sets , Year
Description
Basic Info.
Model NO. CNCBSG4000 Cutting Thickness 1-50mm Cutting Speed 0-5000mm/Min Voltage AC380V Gas Oxygen Transport Package Wooden Case Specification CNCBSG4000 Trademark TAYOR Origin China HS Code 8456901000 Production Capacity 500 Sets / YearProduct Description
3x8meter 5 axis CNC Plasma Bevel Cutting Machine with Hypertherm HPR260XD Cutting systemPrecision CNC Oxy Fuel and plasma Cutting Machines
Working width from 10' to 40'
Thickness of gas cutting: Carbon steel 5mm-300mm
Thickness of plasma cutting: Stainless steel 1mm-70mm
Steel plate, stainless steel, aluminum and high alloyed steels are available
Framework structure, moved by high precision gear and rack, which is stable and accurate
Bilateral drive of the cross beam allows high dynamics of motion, which is especially suitable for plasma cutting
CNC software
Fast, accurate, flexible
Amazingly smooth cutting surfaces
Cuts with almost no slag-adherence
Beveling
Cutting torch number can be matched as per customer request.
Auto height controller
Automated Ignition

Mechanical components | Description |
Machine Width | 3500mm |
Rail Length | 12000mm |
CNC Plasma bevel cutting torch | 1set (Hypertherm) |
CNC oxy-fuel cutting torch | 1set (TAYOR) |
Auto-ignition | 1set (TAYOR) |
Arc voltage plasma height controller | 1set (Hypertherm sensor THC) |
Plasma torch anti-collision device | 1set (TAYOR) |
Drive Model | Dual-side |
Cable/hose Supply Model | Pedrail |
Numerical control system model | Hypertherm EDGE pro |
PLC | OMRON |
Electric components | OMRON |
Plasma power source model | Hypertherm HPR400XD |
Programming and nestling software | FASTCAM (BEVEL) |
Horizontal Servo Driving motor | Panasonic AC servo motor(0.75Kw) |
Longitudinal Servo driving motor | Panasonic AC servo motor(0.75Kw) |
Rotation axis | Panasonic(0.4KW) |
Deflection | Panasonic(0.1KW) |
Gear box | SEW/Neugart |
