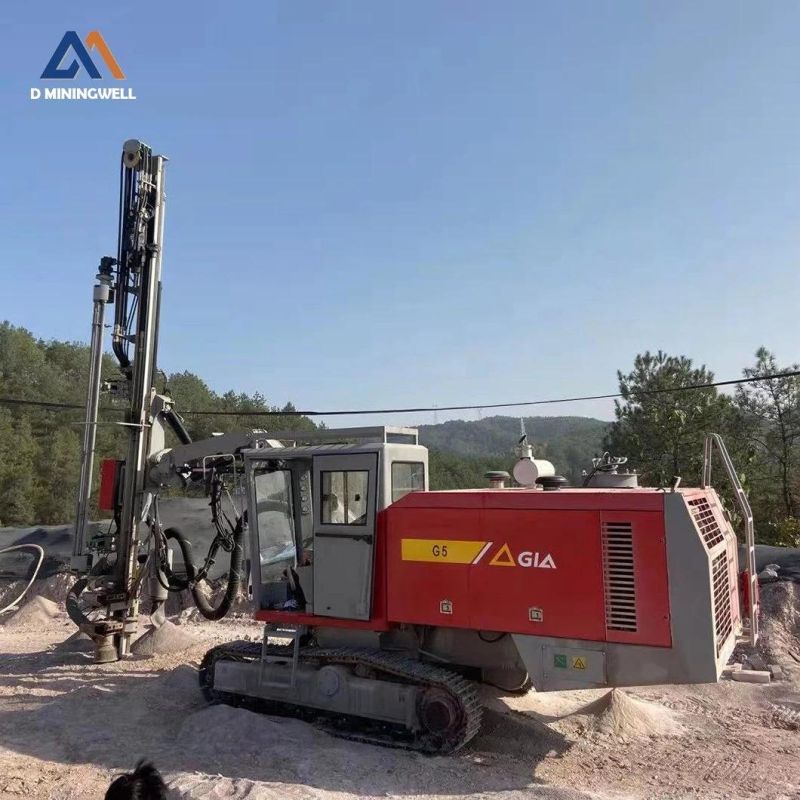

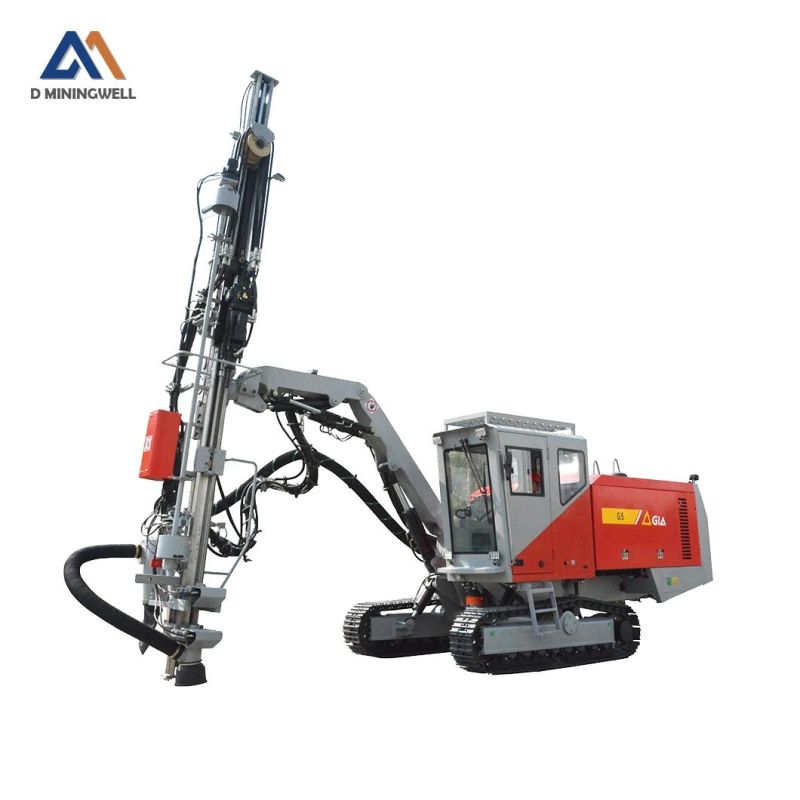

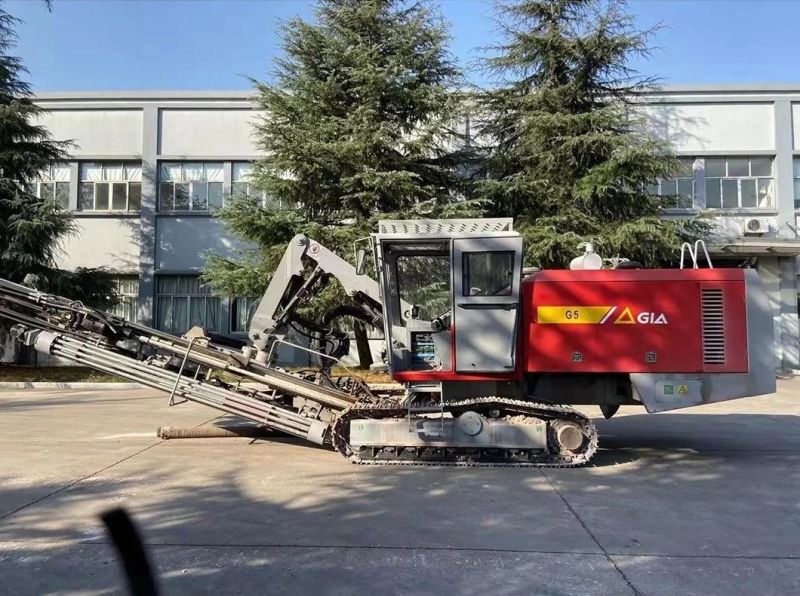

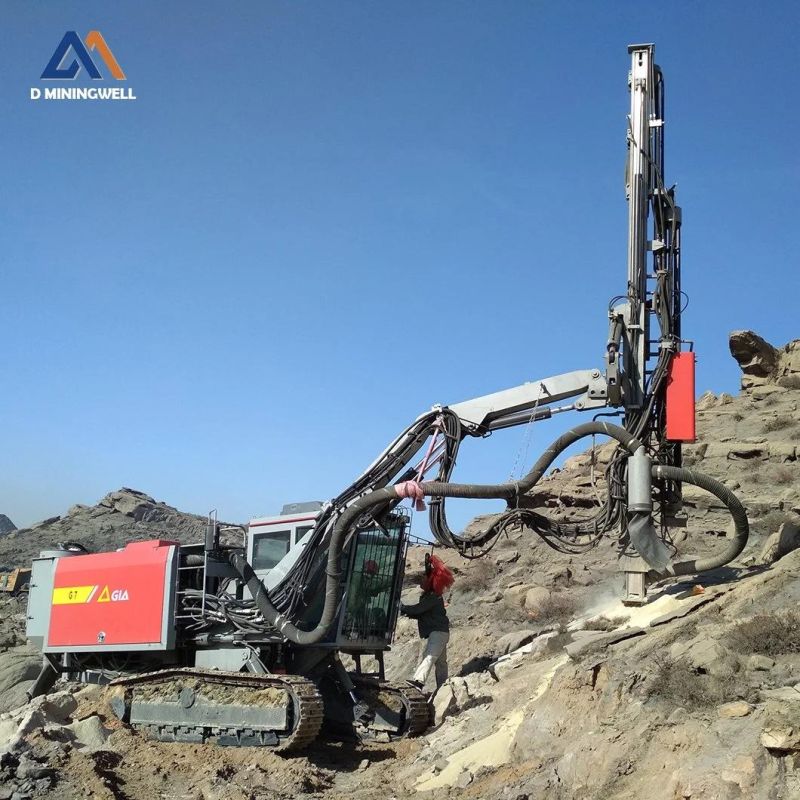

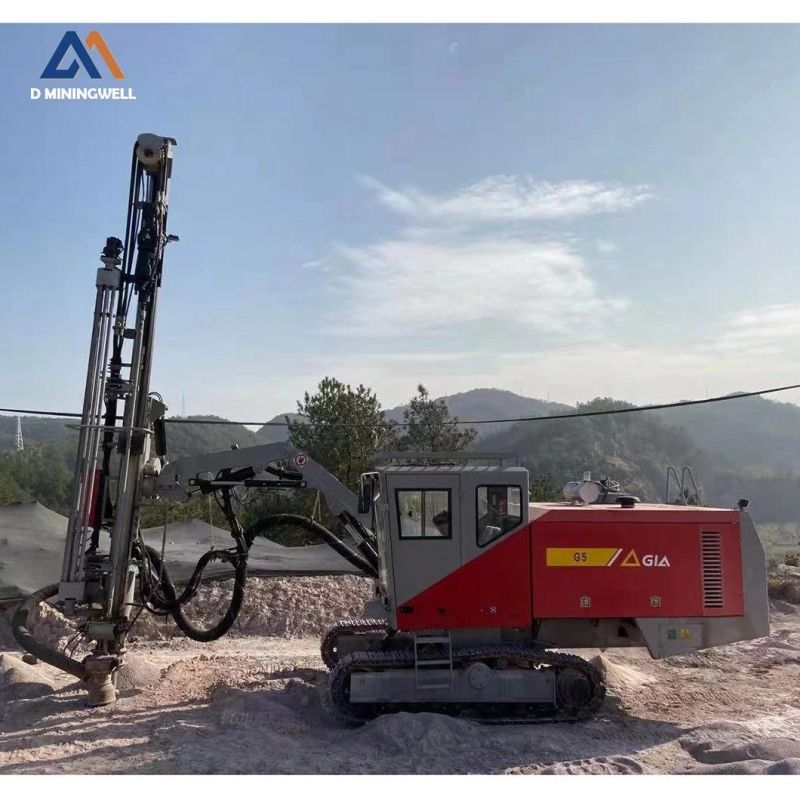

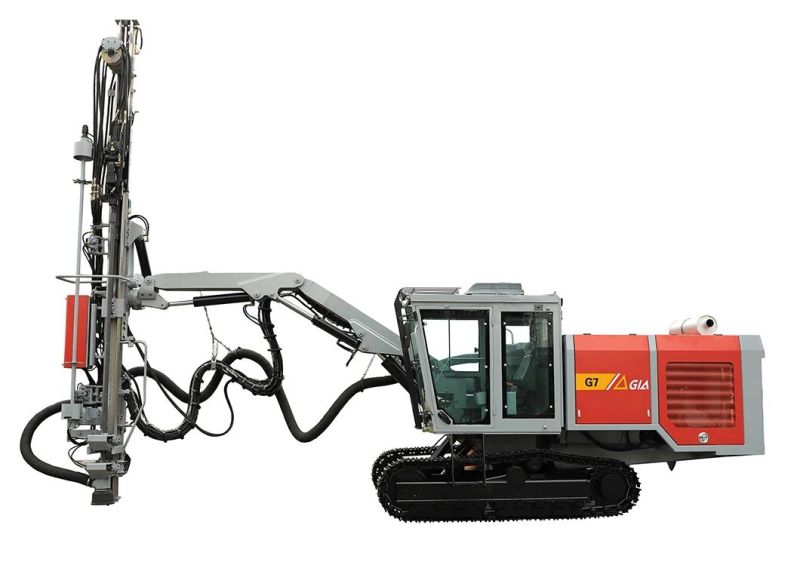

Manufacturer Supplier 2021 New Customized Packing Borehole Drilling Rig JiangSu Weixiangrui Intelligent Equipment Technology Co., Ltd. Base Info Description Technical parameters of G5/G7 hydraulic top hammer drilling rig G5G7Hole range45 - 90 mm76 - 115 mmRod sizeT38/T45T51Max. depth25m25 mDrilling coverage area17 m217 m2EngineCumminsCumminsEngine power134 kW/2200 r/min194 kW/2200 r/minDrafterAtlas Copco RD14S / 14 kWAtlas Copco RD18S / 18 kWImpact pressure145 bar200 barAdvance itinerary3500mm3500mmPropelling beam length6030mm6030mmAdvance compensation1400 mm1400 mmMax. advancing speed0.9 m/s0.9 m/sMax. thrust20 kN20 kNWalking speed1.5/3.1 km/h1.5/3.1 km/hGradeability20°20°Dimensions (L x W x H)10800x2350x3000 mm11610x2450x3200 mmWeight13500kg14500kg Pre：Top Hammer Hydraulic Drill Rock Drilling Rig Automatic Hydraulic Drill Next：D Miningwell Ht400 OEM Customized Drill Rig Mine Drilling Rig DTH Drill Rig Machine
