Basic Info.

Model NO. SJ Computerized Computerized Machine Weight 4T Certification CE, ISO9001:2008 Certificate CE, SGS, ISO9001, CQC Transport Package Wooden Case Specification SGS Trademark Jinda Origin China HS Code 847730900 Production Capacity 15 Sets/Year

Product Description

Use:
It applies to blow various LDPE, HDPE and LLDPE plasticfilms, widely applying to food, fruit, clothing, textile, vesttype bag and etc. Packingof civil industrial products.

Feature:

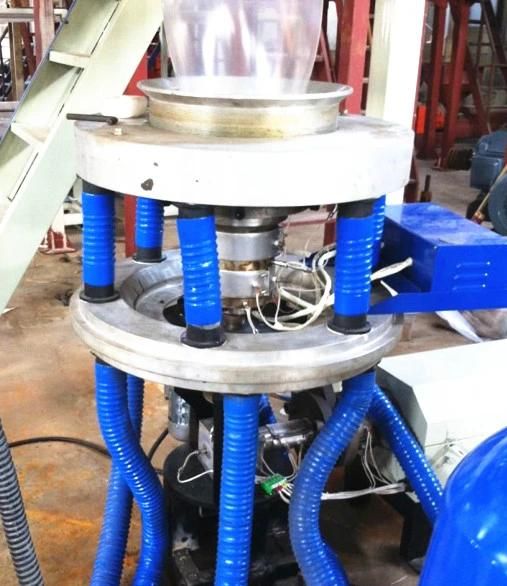

Mode SJ-50-85 squeezing machine is adopted rotatory die head, machine tube is adopted 38CrMoAl, having the best hardness and corrosion-resisting performance after nitrogen treatment and precision processing.

FM-600 auxiliary machine can adjust and operate freely within the range of 700mm in accordance with the technological demand of different materials, and having package board mechanism which can make vest type bag.

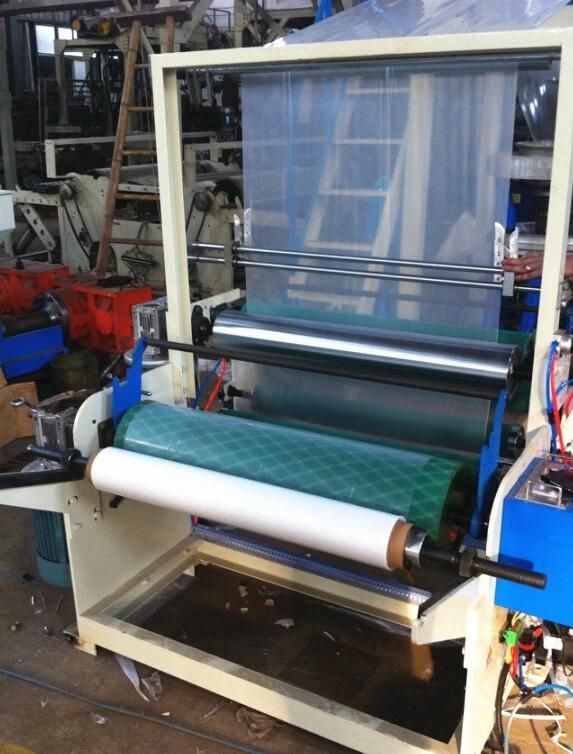

Rolling up device with double-drawing in and do-uble cutting ope, its power is adopted moment motor, with friction plate, it can keepsuitable tension, drawing in and rolling up in good order, easy to change roll.

Technical Parameters:
Power of Main Motor
5.5-24KW

Assistance Machine
0.75KW

Heating
12KW

Die-Head
Φ 50-300mm Choose freely

Screw Diameter
Φ 45/50/55/65mm Choose freely

Screw L/D Ratio
L/D 28: 1

Screw Speed
10-100r/min

Max Ouput
30-70kg/h

Film Thickness
0.08-0.10 mm

Film Width
50-1200 mm

Weight
2-4.5T
